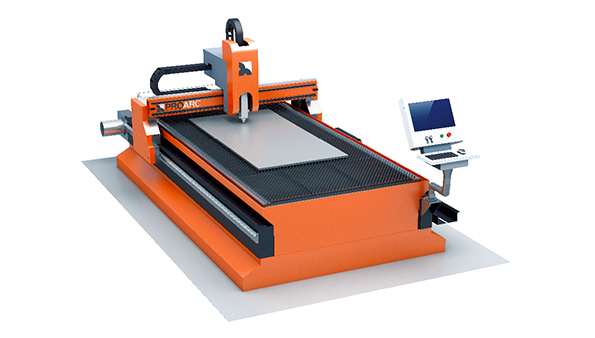

Lumos Fiero
Compact machine for low power application
Fiero is a new generation machine designed with a compact footprint & an athletic body. It is a value for money option with superb performance for laser cutting up to 3KW power. This machine comes in an open body and single table design.
Processes
Plate cutting
Marking
- Compact design that reduces space requirement
- User friendly graphical user interface
- Drawing and nesting of shapes on the CNC controller itself
- Inbuilt fume extraction system
- Aerodynamic aluminium gantry for quick acceleration and deceleration
- Auto sheet alignment
| Model | Fiero 3015 | Fiero 4025 |
|---|---|---|
| Working width | 1,525 mm | 2,025 mm |
| Working length | 3,050 mm | 4,050 mm |
| Maximum workpiece weight | 900 kg | 1,600 kg |
| Positioning accuracy | ± 0.05 mm/m | ± 0.05 mm/m |
| Repeatability | ± 0.02 mm/m | ± 0.02 mm/m |
| Rapid speed | 80 -100 m/min | 80 -100 m/min |
| Acceleration | 0.8G | 0.8G |
| Maximum laser capacity | 3KW | 3KW |
Certain customizations are possible in the above machines.
