Lumos Fury

Ultimate precision for higher thicknesses and speeds

The Fury series has a heavy-duty & high precision welded machine frame to ensure utmost stability & dampen any vibration at ultra-high cutting speeds. Its powerful motion control, zonal ventilation system, rapid heat dissipation & intelligent CNC system contributes to high performance, long life & exceptional accuracy at high speeds

Processes

Plate cutting

Marking

Pipe Beveling

Lumos - Fury Series

Variants

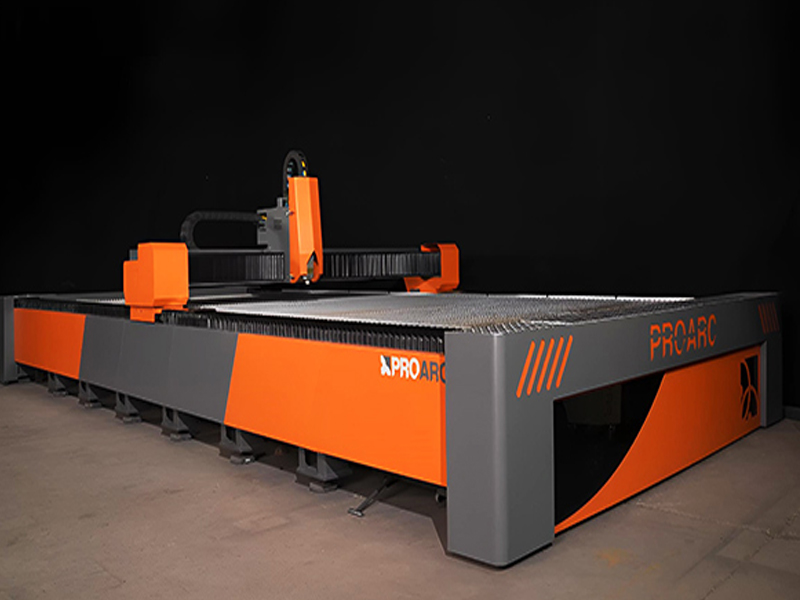

Fury F1 - Single bed design, open machine body

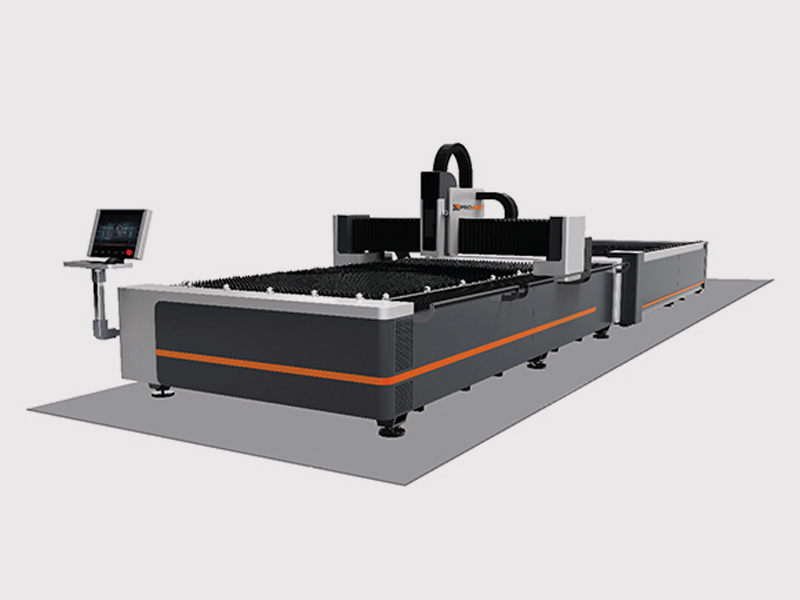

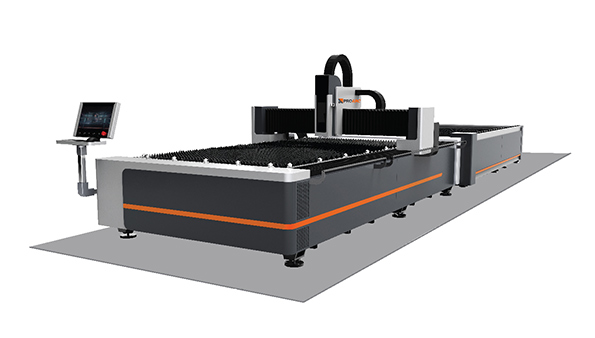

Fury F2 - Shuttle table, open machine body

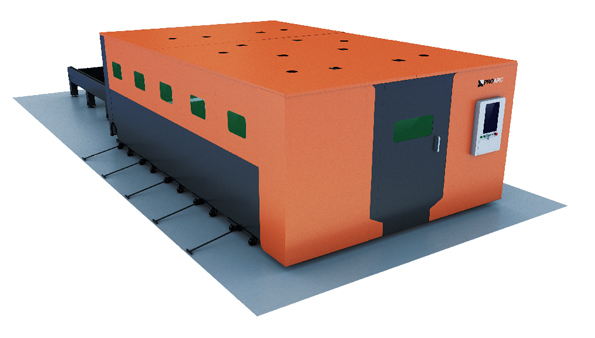

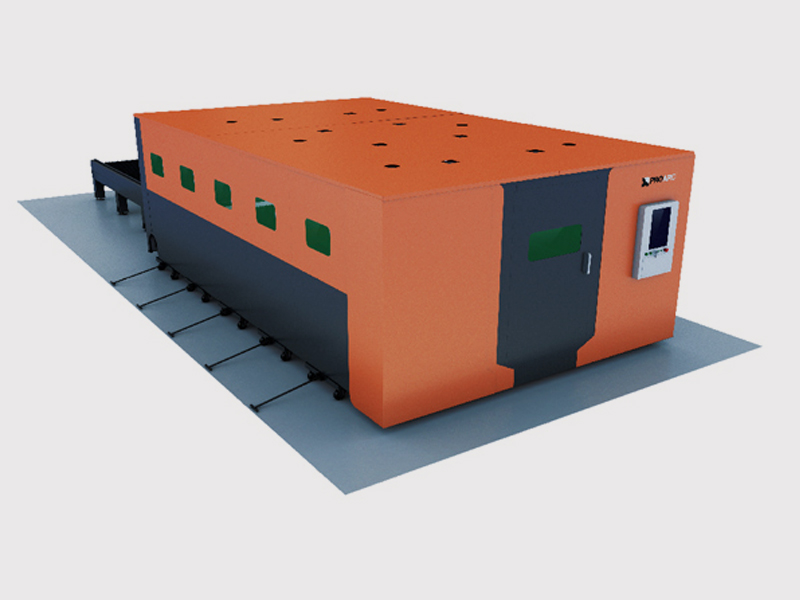

Fury F3 - Shuttle table, enclosed machine body

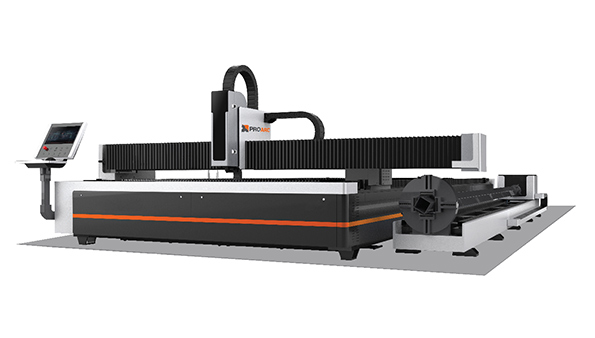

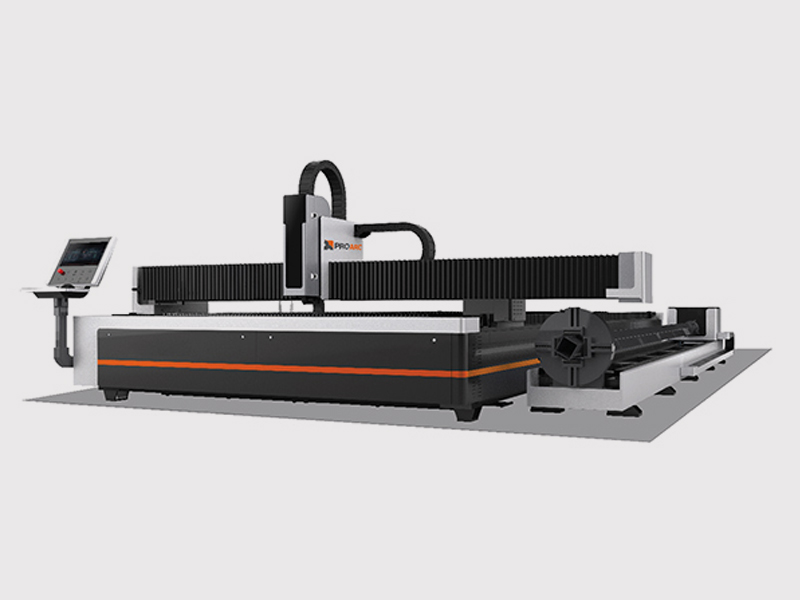

Fury F4 - Single bed design, open machine body, add-on tube cutting arrangement

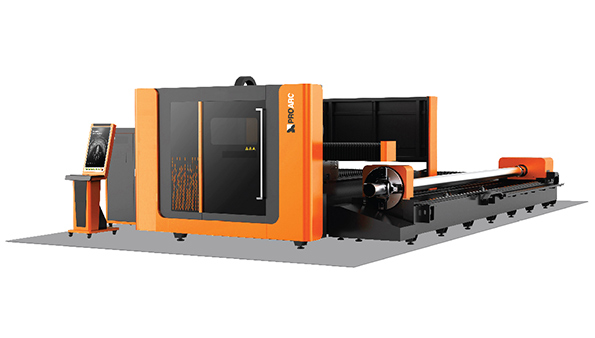

Fury F5 - Shuttle table, open machine body, add-on tube cutting arrangement

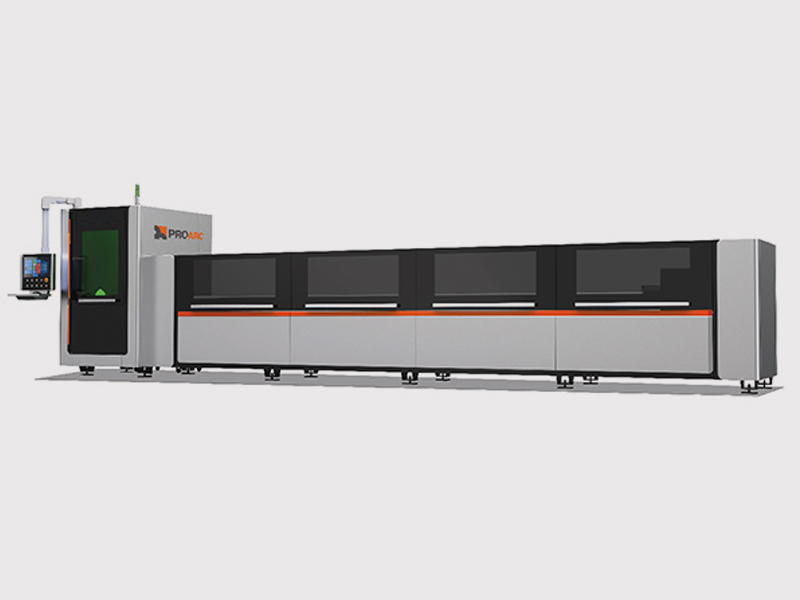

Fury F6 - Dedicated machine for tube cutting application

Rigid, reliable machine with efficient cooling, lubrication & dust-removal system for ultimate accuracy
Best in class accuracy and productivity
User friendly graphical user interface
Drawing and nesting of shapes on the CNC controller itself
Inbuilt fume extraction system
Aerodynamic aluminium gantry for quick acceleration and deceleration
Auto sheet alignment
Compatibility with laser automation line

Fury F1, F2, F3 & F4
Model	Fury 3015	Fury 4020	Fury 6015	Fury 6520	Fury 6525	Fury 8025
Working width	1,525 mm	2,025 mm	1,525 mm	2,025 mm	2,525 mm	2,525 mm
Working length	3,050 mm	4,050 mm	6,050 mm	6,550 mm	6,550 mm	8,050 mm
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G
Shuttle table exchange time	10s	12s	15s	18s	20s	22s

Fury F5
Model	Fury F5 3015	Fury F5 6015	Fury F5 6520
Working width	1,525 mm	1,525 mm	2,025 mm
Working length	3,050 mm	6,050 mm	6,550 mm
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G
Pipe Diameter	⌀ 20 - 160 mm	⌀ 20 - 160 mm	⌀ 20 - 220 mm
Shuttle table exchange time	10s	15s	18s

Fury F6
Model	Fury F6 T3000	Fury F6 T6000	Fury F6 T9000	Fury F6 T12000
Pipe diameters	⌀ 20 - 160 mm ⌀ 20 - 220 mm ⌀ 25 - 280 mm ⌀ 25 - 320 mm
Laser power	1 - 6 KW
Positioning accuracy	± 0.03 mm/m
Repeatability	± 0.02 mm/m
Rapid speed	100 - 120 m/min
Acceleration	1G

* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.
