Revolutionary drilling technology that offers flexibility
This machine can be used as a stand-alone machine for drilling operation and can be combined with oxyfuel and plasma cutting processes.
Processes
Plate Cutting
Edge Preparation
Marking
Drilling
- Robust structure to counter the back force generated during drilling and milling operations
- Localized clamping of plates at the point of drilling
- Easy generation of programs for cutting and drilling operations
- Machine designed for large working areas
| Model | Tornado | |
|---|---|---|
| Processes | Drilling and Oxy-Fuel and/or Plasma | |
| Application | Plate processing operations including drilling/ tapping and cutting usually for structural fabrication | |
| Machine Structure | Gantry simply supported at both ends by machined railway rails | |
| Working widths | 1,500 mm - 4,000 mm | |
| Track width | 3,000 mm - 5,500 mm | |
| Maximum Working length | 30,000 mm | |
| Lifter Stroke | 300 mm | |
| Cutting Capacity: | ||
| Oxy-fuel | 6 mm - 100 mm | |
| Plasma |
0.5 mm – 100 mm MS 1 mm – 100 mm SS 1 mm – 100 mm Al Cutting thickness depends on the plasma system offered |
|
| Maximum plasma torches | 1 | |
| Maximum oxy-fuel torches | 3 | |
| Maximum drilling spindles | 1 | |
| Drilling hole diameters | Maximum ⌀ 30mm / ⌀ 40mm / ⌀ 50mm | |
| Drilling maximum thickness | 100 mm (Depends on drilling tool and max. L/D permissible) | |
| Spindle taper | ISO40 / ISO50 / HSK63 | |
| Cooling system | Mist cooling / flood cooling | |
| Maximum Positioning Speed | 12,000 mm/min | |
| X & Y axes motion | Helical Rack and pinion | |
| Z axis motion | Ball screw | |
| Guiding mechanism | Dual linear motion guides on cross axis, cam follower arrangement for long axis with heavy duty railway rails | |
| Cutting accuracy and dimensional tolerance | ISO 9013 class 2 | |
| Add-On feature | Fume extraction table, marking, automatic tool changer, chip conveyor, coolant recirculation system, tapping | |
Certain customizations are possible in the above machines.

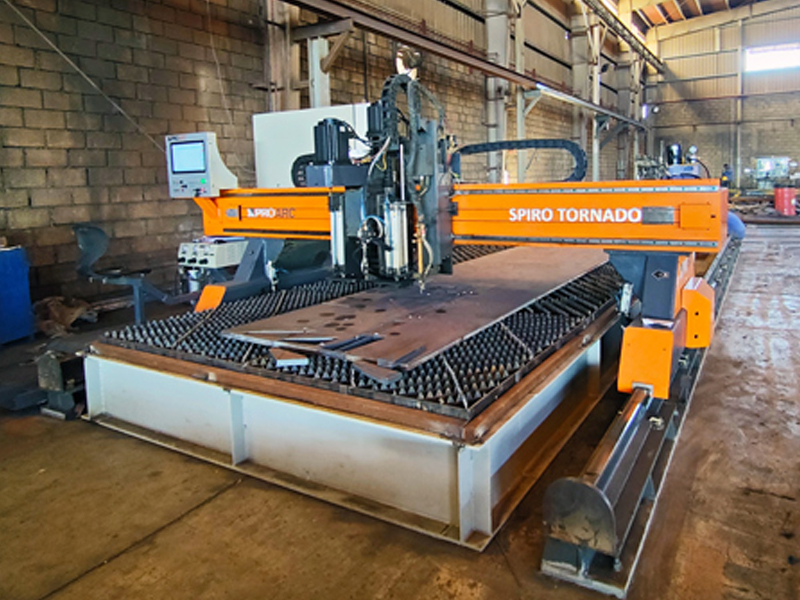

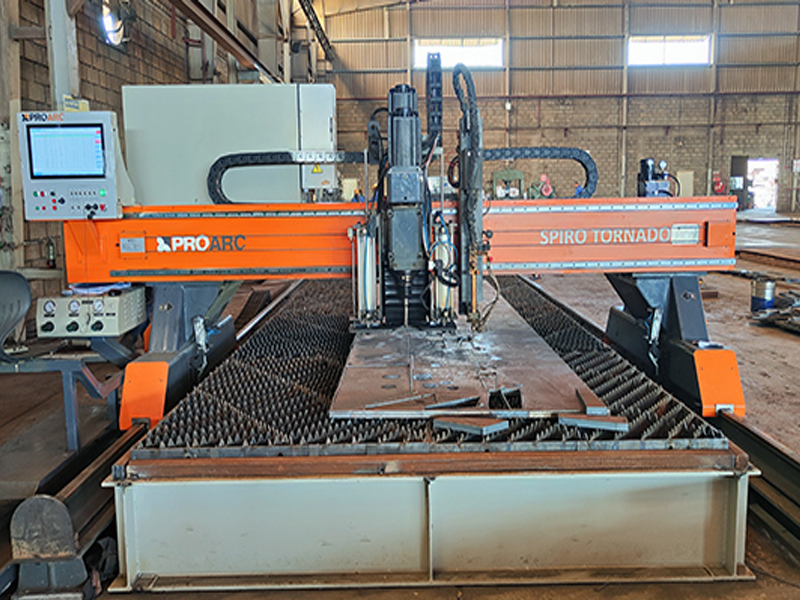

Spiro - Tornado

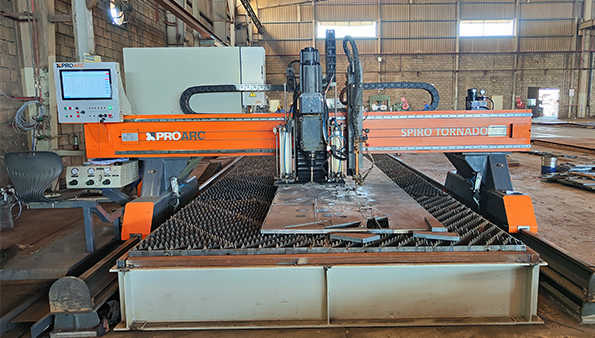

Spiro - Tornado
