ALUMINUM BLOCK DROP POINT APPARATUS :: ASTM D 2265
Model Code : SEWBD01 (six place assembly) / SEWBD02 (eight place assembly)
This test apparatus is used for the determination of the dropping point of lubricating grease. The dropping point is useful to assist in identifying the grease as to type and for establishing and maintaining bench marks for quality control. A grease sample in a grease test cup is supported in a test tube placed in an aluminum block oven at a preset constant temperature. As the temperature increases, at some point a drop of material will fall from the cup to the bottom of the test tube. The reading on the sample thermometer is recorded to the nearest degree as the observed dropping point.
| APPARATUS CONSIST OF | ||
| Aluminium block | : | Aluminium block heater, heating assembly, 6 place assembly. |
| Dropping point test set | : | Glass test tube, grease Cup, chromium-plated brass cup, support, glass tubing, etc. |
| Control panel | : | Variable heating control, digital temperature indicator cum controller, digital display. |
| Recommended spares | : | Standard thermometer, test tubes, brass cups with support, etc. |
COKING TENDENCY TEST APPARATUS OF OIL :: FTMS 791B-3462
The apparatus is used to determine the tendency of finished oil to form coke with it is in contact with the surfaces at elevated temperatures for short period. The oil is splashed on hot test panels for specified time and weight of coke deposited is measured. The test apparatus is as per FTM 791B 3462 standard specification and is suitable as a screening test prior to performing engine test.
| APPARATUS CONSIST OF | ||
| Splash chamber | : | SS mfg., mounting brackets, sliding baffle plate, oil splasher shaft, Oil reservoir, etc. |
| Holding assembly | : | Panel holding assembly, panel holder, clamps, electric heater, etc. |
| Oil splasher | : | Eight equally spaced rows of wires, triangular pitch tapered at end, drive motor, etc. |
| Heating assemblies | : | Two assemblies, plate type for test panel, coil type for oil sump, separate control. |
| Control panel | : | Variable heating control, digital temperature indicator cum controller, digital display. |
| Recommended spares | : | Standard thermometer, Aluminiam test panels, SS test panels, etc. |
PENSKY MARTIN FLASH POINT TESTER :: ASTM D 93 – 02
Model Code : SEWPM01
The flash point temperature is one measure of the tendency of the test specimen to form a flammable mixture with air under controlled laboratory conditions. It is only one of a number of properties which must be considered in assessing the overall flammability hazard of a material. Flash point is used in shipping and safety regulations to define flammable and combustible materials.
| APPARATUS CONSIST OF | ||
| Test cup | : | Brass or equivalent material with flange arrangement. |
| Cup cover | : | The cover with rim and jet device. |
| Electric heater | : | Heating assembly electrically heated 1kW heater |
| Stirring assembly | : | Automatic stirrer with spring type stirrer and motor. |
| Temperature Control | : | Rheostat type temperature controller, slot for temperature indicator / thermometer. |
| Firing jet device | : | Oil or gas jet device. |
| Recommended spares | : | Extra test cup with cover. |
KINEMATIC VISCOSITY BATH :: ASTM D 445, ASTM D 446, IP 71
Model Code : SEWVB01 (4 test place w/o cooling assembly) / SEWVB02 (6 test place w/o cooling assembly) / SEWVB03 (8 test place w/o cooling assembly) / SEWVB11 (4 test place with cooling assembly) / SEWVB12 (6 test place with cooling assembly) / SEWVB13 (8 test place with cooling assembly)
The Bath which is constant temperature oil bath wherein calibrated capillary viscometers are used to measure flow under gravity or vacuum at controlled temperatures. The test can be conducted in accordance with ASTM D 445 / ASTM D 446 / IP 71. Generally the temperature is set at 40 & 100°C.
| APPARATUS CONSIST OF | ||
| Constant temp. bath | : | The liquid heating bath made up of SS with stirring assembly to maintain constant temperature |
| Viscometer tubes | : | Borosilicate mfg., design and dimensions as per standard, with calibration certificate. |
| Cooling (optional) | : | Single stage compressor CFC free cooling system, temperature below ambient upto. 20OC. |
| Control panel | : | Variable heating control, digital temperature indicator cum controller. |
| Recommended spares | : | Circulation air oven / drying oven, standard thermometers, stop watch, etc. |
RAMS BOTTOM CARBON RESIDUE APPARATUS :: ASTM D 524 / IP 14
Model Code : SEWRB01
This test apparatus is used for the determination of the amount of carbon residue left after evaporation and pyrolysis of an oil, and it is intended to provide some indication of relative cokeforming propensity. This test method is generally applicable to relatively nonvolatile petroleum products which partially decompose on distillation at atmospheric pressure. This test method also covers the determination of carbon residue on 10% (V/V) distillation residues. The apparatus is specifically used for calculating carbon residue from the sample. The test is conducted in accordance with ASTM D 524 / IP 14/ IS 1448 (P:8)
| APPARATUS CONSIST OF | ||
| Coking furnace | : | Rectangular solid aluminium block, outer body MS powder coated, band heaters, 5 wells. |
| Test coking bulbs | : | Borosilicate mfg., beaker with graduated glass cylinders, specifications as per the standards |
| Control bulb | : | SS mfg., incorporated with thermocouple, dimensions as per the standard. |
| Control panel | : | Variable heating control, digital temperature indicator cum controller. |
| Recommended spares | : | Sample charging syringe, coking bulbs, standard thermometers, glass dedicator, etc. |
REID VAPOUR PRESSURE APPARATUS :: ASTM D 323 / IP 69 / IS 1448: P-39
Model Code : SEWRV01
Vapor pressure is an important physical property of volatile liquids. This test method is used to determine the vapor pressure at 37.8°C (100°F) of petroleum products and crude oils with initial boiling point above 0°C (32°F).

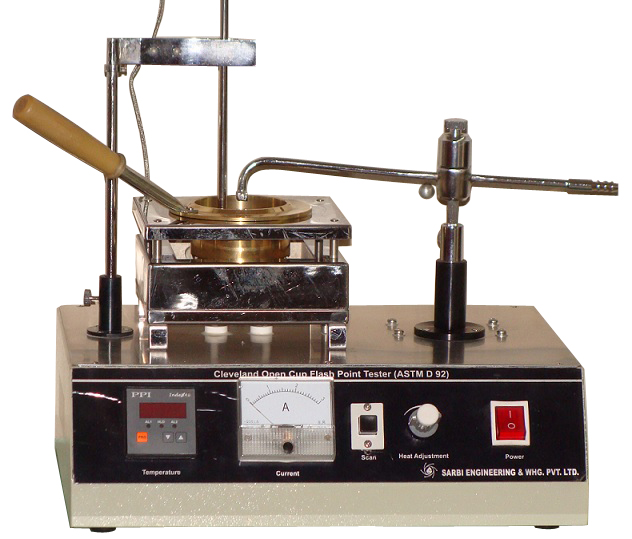

Semi-automatic Cleveland Open Cup Flash Point Equipment :: ASTM D 92 / IP 36
Model Code SEWCF01
This test method describes the determination of the flash point o petroleum products.
A brass test cup of specified dimensions, filled to the inside mark with test sample, is heated at specified rates, by defined procedures. An ignition source is directed into the test cup at regular intervals, until a flash is detected. The operating range of this device is from ambient to 350°C.
| SPECIFICATIONS : | ||
| COMPONENTS | DESCRIPTION | |
| Test cup | : | Made of brass with flange arrangement and ebonite handle. |
| Heating assembly | : | 500 W coiled tubular heater housed in well insulated Aluminium casting with ammeter monitor-ing fo-r-p-o-w-e-r usage. |
| Temperature Control | : | 0.1 QCresolution digital temperature indicator with rheostatic controller PT10 RTD sensing device. |
| Test Flame Applicator | : | Motorized test flame applicator with to and fro sVv'eepand sweep speed as. specified in the standard. Orifice diameter and radius of sweep as per standai |
| Iqnition device | : | Electronic push button ignitor for igniting test flame |
| Cooling fan | : | High RPM ll'letallic cooling fan for accelerated cooling of the test samples . |
| Enclosure | : | Sturdy mild steel powdered coated enclosure with matte finish and aesthetic design. |
| Safety | : | Well insulated heating elernent with safety thermostat for preventing temperature overrun. 5 Amp safety fuse for protection against overcurrent and shortcircuit. |
| Physical specifications | : | 300mm (L) x 200mm (B) x 220rnm (H).VVeight 25 kg. |
EQUILIBRIUM REFLUX BOILING POINT APPARATUS :: IS 8654
Model Code SEWBF01
There are various facilities / test methods / equipments offered for brake fluid testing. The specifications and the quotations for the same are as follows. The laboratory glass apparatus is used to determine the ERBP of the specimen brake fluid sample at atmospheric pressure conditions with reflux. The apparatus consist of 100 ml round bottom short neck flask with standard dimensions, 200 mm jacket glass tube type condenser with rubber tubing ~ 4 meter, ASTM 2C standard thermometer, Asbestos wire gauze, Condenser holding stand, etc.
