Turnkey Projects

 Industrial Dryers

SSP offers most modern Drying Plants for Dairy, Food, Chemical and Pharmaceutical industries based on indigenously developed technology. As drying is an energy intensive process and dryers are expensive pieces of equipment, SSP offers most economical Industrial Dryers matching the specific requirements.

SSP supplies the following types of Dryers:

  • Industrial Spray Dryer
  • Spin Flash Dryer
  • Steam Tube Dryer
  • Spray Nozzle
  • Vacuum Band Dryer
  • Rotary Dryer
  • Vertical Thin Film Dryer
  • Freeze Dryer
  • Tumbler / Rotary Vacuum Dryer
  • Fluid Bed Dryer
  • Solar Dryer

BASIC FEATURES OF THE SYSTEM:

  • Production of INSTANT POWDER
  • Flexibility in Controlling POWDER QUALITY
  • Negligible - DEPOSITION of Powder in Chamber
  • Less DOWNTIME for Maintenance.
  • WINCH driven special CLEANING Lift.
  • EXPANDABLE up to 100% Capacity

DEVELOPMENTS:

  • Spray dryer with Nozzle Atomization & Disc Atomization.
  • Modern Spray Dryer design with both types atomization in the same dryer to get desired quality of powder .
  • Instant WMP Powder (Lecithinated).
  • No sticking in the drying chamber even with Dairy Whitener.

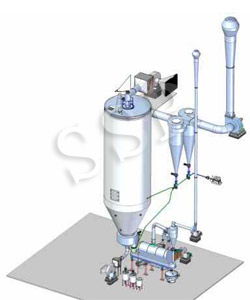

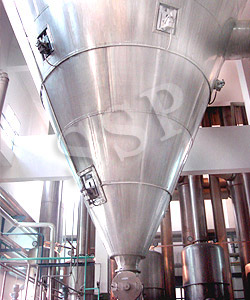

 Spray Dryer

  • SSP Spray Dryers are relatively simple in operation which accept feed in fluid state and convert it into a dried particulate form by atomizing the fluid into a hot drying medium.
  • Atomization is done using high pressure nozzle, high pressure air, two fluid nozzles or centrifugal disc atomizer.
  • The heating of drying air can be through steam radiator or thermic fluid air heater according to the service conditions available.
  • Direct or indirect fired hot air generator through oil or gas according to fuel availability with client.
  • The unique Fines Re-circulation System produces highest quality of agglomerated powder.
  • Apart from that it also offers spray nozzle, atomizer, diversion valve, blow through valve, ss pipes & fittings

Applications:

  • Milk Powder
  • Whey Powder
  • Ceramic Slurry
  • Magnesium Chloride
  • Molasses
  • Poly Aluminum Chloride
  • Enzymes
  • Catalysts
  • Calcium Chloride
  • Instant Tea
  • Instant Coffee
  • Ice Cream Mix Powder
  • Bakers Yeast
  • UF Resin
  • Fruit Juice Powder
  • Protein Hydrolysate
  • Egg Powder
  • Polyvinyl Acetate
  • Dyes
  • Detergent Powder
  • Herbal Products
