Ultra Precision Spindles Pvt Ltd manufacture belt driven, precision ball and roller bearing spindles. We are ISO 9001 company.
Our spindles are mainly used on
• Internal grinding application
• External and internal thread grinding
• Fine boring
• Machining centers
• Testing machines
Some of the standard features of UPSPL Spindles are given below
• Spindles are available in grease lubrication and oil air lubrication.
• Spindles are available in HSS balls bearings and ceramic balls bearings as well.
• All Spindle shafts are dynamically balanced.
• Shaft and lock nuts are thread ground
• Bearings used are FAG or equivalent.
Since we manufacture custom built spindles, we do not have catalogue. Nonetheless, we have manufacturing program of grinding spindles up to 30,000 rpm as per international standards.

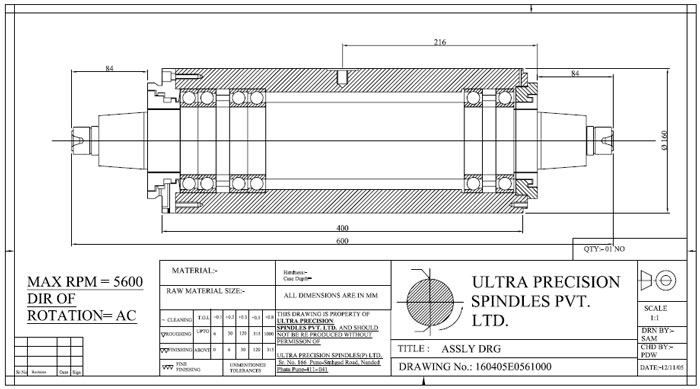

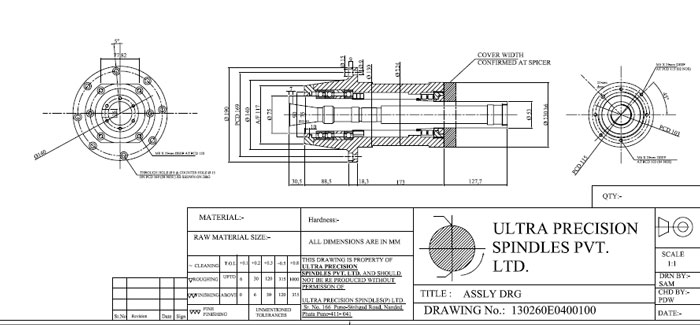

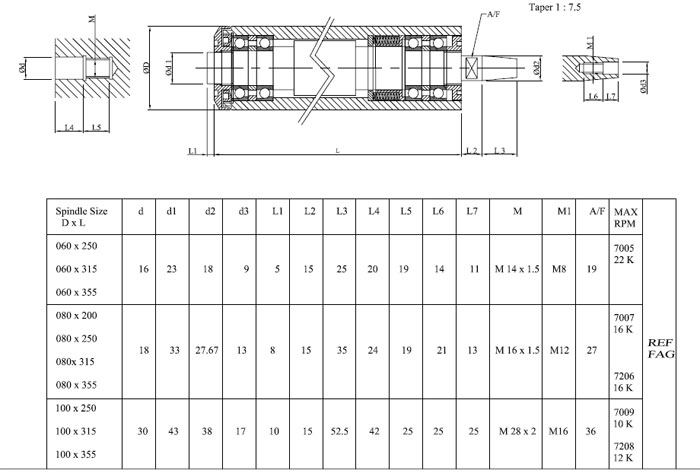

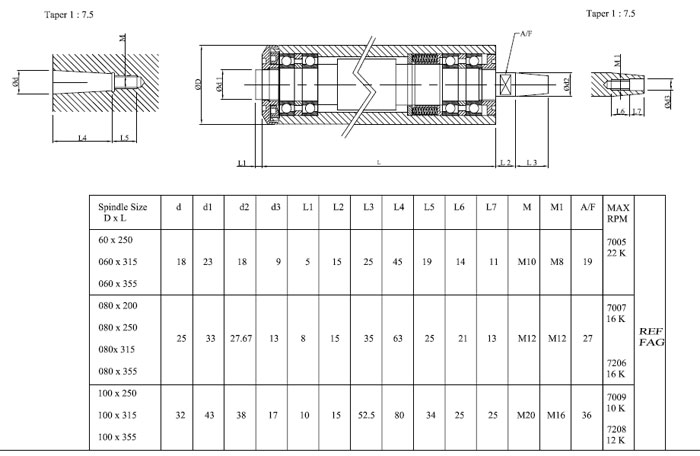

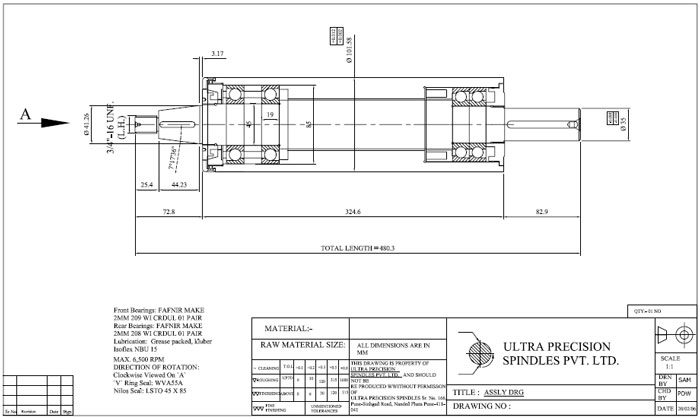

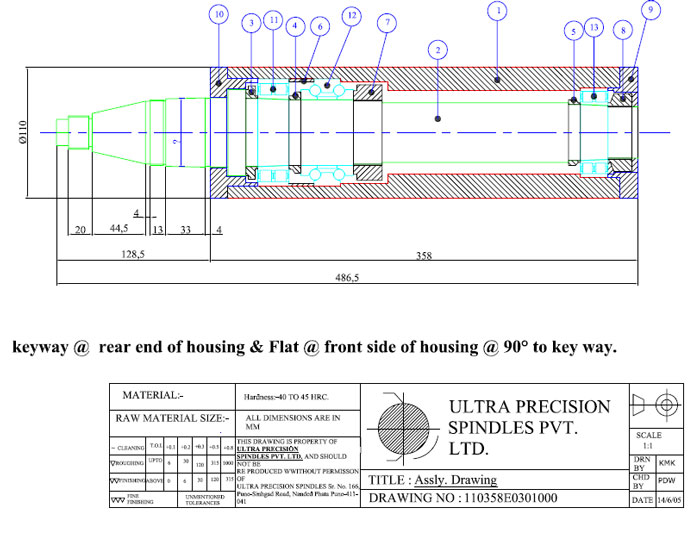

Some of the popular and successful spindle models are given below.
