AMS-M Heat Shrink Marker Sleeve
Features:
| Material | The sleeving shall be fabricated from irradiated, thermally stabilized and flame retarded modified polyolefin compound |
| Application range | Military industry; Aerospce & defence; Marine |
| Operating temperature range | -55? to +135? |
| Minimum recovery temperature | +85? |
| Maximum storage temperature | +50? |
| Shrink ratio | 2:1, 3:1 |
| Colour | White, Yellow, other colours are available, if ordered |
| Printing mode | Single sided printing and Double sided printing formats available |

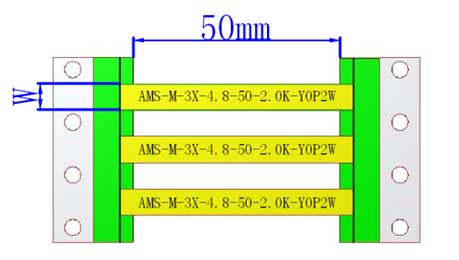

| Supplied mode | Either Continuous type or Ladder format type is available |
| Recommended Printers | Either Thermal transfer printer or Laster printer is OK |
| Recommended Ribbons | WO-80500BK resin ribbon, Black, 100mm(width) x 300m (length) |

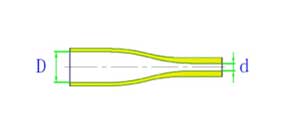

Product Dimensions – Shrink ratio-2X
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
| ID(D) | Flatten Width(W2) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
| AMS-M-2X-1.6-50-2.5K-Y0P0O | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | =0.79 | 0.45±0.06 |
| AMS-M-2X-2.4-50-2.5K-Y0P0O | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | =1.18 | 0.49±0.06 |
| AMS-M-2X-3.2-50-2.0K-Y0P0O | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | =1.59 | 0.51±0.06 |
| AMS-M-2X-4.8-50-2.0K-Y0P0O | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | =2.36 | 0.54±0.06 |
| AMS-M-2X-6.4-50-1.5K-Y0P0O | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | =3.18 | 0.56±0.06 |
| AMS-M-2X-9.5-50-1.0K-Y0P0O | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | =4.75 | 0.59±0.06 |
| AMS-M-2X-12.7-50-1.0K-Y0P0O | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | =6.35 | 0.60±0.07 |
| AMS-M-2X-19-50-0.5K-Y0P0O | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | =9.53 | 0.62±0.07 |
| AMS-M-2X-25-50-0.5K-Y0P0O | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | =12.7 | 0.63±0.07 |
| AMS-M-2X-38-50-0.5K-Y0P0O- | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | =19.1 | 0.64±0.07 |
| AMS-M-2X-51-50-0.25K-Y0P0O | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | =25.4 | 0.64±0.08 |
| AMS-M-2X-76-50-0.25K-Y0P0O | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | =38.1 | 0.64±0.09 |
Product Dimensions – Shrink ratio-3X
| Part Number | As Supplied (mm) | After Recovery(mm) | |||
| ID(D) | Flatten Width(W2) | Double Wall Thickness | ID(d) | Single Wall Thickness | |
| AMS-M-3X-1.6-50-2.5K-Y0P0O | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | =0.53 | 0.52±0.06 |
| AMS-M-3X-2.4-50-2.5K-Y0P0O | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | =0.79 | 0.57±0.06 |
| AMS-M-3X-3.2-50-2.0K-Y0P0O | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | =1.06 | 0.61±0.06 |
| AMS-M-3X-4.8-50-2.0K-Y0P0O | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | =1.59 | 0.67±0.06 |
| AMS-M-3X-6.4-50-1.5K-Y0P0O | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | =2.36 | 0.71±0.06 |
| AMS-M-3X-9.5-50-1.0K-Y0P0O | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | =3.18 | 0.77±0.06 |
| AMS-M-3X-12.7-50-1.0K-Y0P0O | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | =4.75 | 0.80±0.07 |
| AMS-M-3X-19-50-0.5K-Y0P0O | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | =6.35 | 0.84±0.07 |
| AMS-M-3X-25-50-0.5K-Y0P0O | 26.7±0.45 | 42.5±0.7 | 0.56±0.12 | =8.47 | 0.86±0.07 |
| AMS-M-3X-38-50-0. 5K-Y0P0O | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | =12.9 | 0.89±0.07 |
| AMS-M-3X-51-50-0.25K-Y0P0O | 53.0±0.56 | 83.9±0.9 | 0.57±0.13 | =17.2 | 0.90±0.08 |
| AMS-M-3X-76-50-0.25K-Y0P0O | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | =25.8 | 0.92±0.09 |
Package information
| Ordering Size | Ladder Format Type | Continuous Type | |
| (AMS-M-2X/3X) | A&B-Small Box Packing (PCS/Box) | A-Paper reel Packing (m/reel) | B-Plastic reel Packing(m/reel) |
| F1.6 | 2500 | 50 | 25 |
| F2.4 | 2500 | 50 | 25 |
| F3.2 | 2000 | 100 | 25 |
| F4.8 | 2000 | 100 | 25 |
| F6.4 | 2000 | 100 | 25 |
| F9.5 | 1000 | 100 | 25 |
| F12.7 | 1000 | 100 | 25 |
| F19 | 500 | 100 | 25 |
| F25 | 500 | 100 | 25 |
| F38 | 500 | 50 | 25 |
| F51 | 250 | 50 | 25 |
| F76 | 250 | 50 | — |

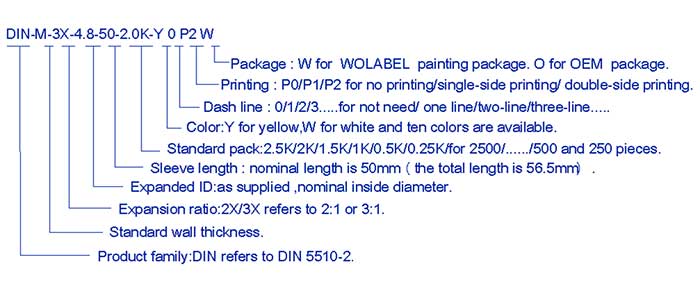

Part Numbering System
| Color code | Bl | Br | R | Or | Y | G | Blu | V | Gr | W |
| Color | Black | Brown | Red | Orange | Yellow | Green | Blue | Violet | Gray | White |
Note:yellow-white is standard, other color is available if ordered.
