Diffused Scan
.jpg)
Technical Specifications
| TYPE | DIFFUSED SCAN |

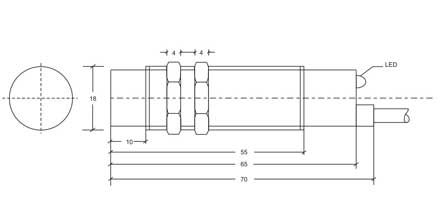

| SIZE | M-18 |
| Type | 3 – WIRE DC |
| Diffused Scan | |
| Sensing Distance (mm) | 500 |
| Object(mm) | White Glossy Paper |
| {200X200 mm} | |
| Logics | PNP / NPN |
| Frequency | 1Khz |
| Contact | NO/NC/1NO+NC |
| Supply Voltage | 12-24 VDC |
| Load Current | 100mA |
| Response time (m sec) | 20 |
| Display | LED |
| Circuit Protection | Reverse Polarity / Short Circuit |
| Protection | Ip66 |
| Housing Material | Brass Nickel Plated |
| Wire(sq. mm) | 3C x 0.20 |
Ordering Code
UT I-18 05 N O (F)
| UT | UNITECH |
| I | Inductive |
| 18 | Diameter of Switch |
| 05 | Sensing Distance |
| N | NPN Logic |
| O | Normally Open Contact |
| (F) | Flush Type |
| P = PNP Logic | N = NPN Logic |
| O = Normally Open Contact | C = Normally Close Contact |
| 05 = Sensing Distance | 08 = Sensing Distance |
| (F) = Flush Type | (NF) = Non-Flush Type |

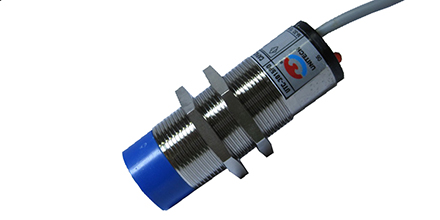

Technical Specifications
| TYPE | DIFFUSED SCAN |

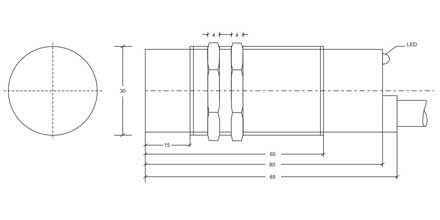

| SIZE | M-30 |
| Type | 3 – WIRE DC |
| Diffused Scan | |
| Sensing Distance (mm) | 1000 |
| Object(mm) | White Glossy Paper |
| {200X200 mm} | |
| Logics | PNP / NPN |
| Frequency | 1Khz |
| Contact | NO/NC/1NO+NC |
| Supply Voltage | 12-24 VDC |
| Load Current | 100mA |
| Response time (m sec) | 20 |
| Display | LED |
| Circuit Protection | Reverse Polarity / Short Circuit |
| Protection | Ip66 |
| Housing Material | Brass Nickel Plated |
| Wire(sq. mm) | 3C x 0.20 |
Ordering Code
UT I-30 10 N O (F)
| UT | UNITECH |
| I | Inductive |
| 30 | Diameter of Switch |
| 10 | Sensing Distance |
| N | NPN Logic |
| O | Normally Open Contact |
| (F) | Flush Type |
| P = PNP Logic | N = NPN Logic |
| O = Normally Open Contact | C = Normally Close Contact |
| 10 = Sensing Distance | 15 = Sensing Distance |
| (F) = Flush Type | (NF) = Non-Flush Type |
