Safety Guard / Light Curtain

Download Product Brochure

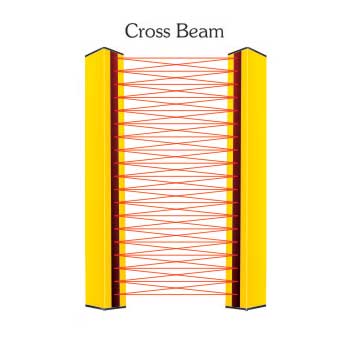

Safety Guard - Parallel BeamSafety Guard - Cross Beam
  1. Hand Protection
  2. Finger Protection
  3. Protection of Body/Part of Body

These are available in two types. Parallel Beam and Cross Beam. For the same protected height, Cross Beam Light curtains are more sensitive as there are more number of active beams in the same area (explained at the bottom with figure).

Safety Light Curtains / Guards are used for preventing injuries of hand / finger / body part, while working at Power presses for Metal, Processing machines for Wood, Plastic, Leather, Rubber, Glass, etc.; Filter presses, Folding or systems, Rubber molding machines, SPMs, Forging Presses, Injection machines, etc.

Features:

  •  Offers Safety Standard Type 4 when used with Controller
  •  Easy to install & can be mounted in any position. Vertical / Horizontal.
  •  Non-Critical alignment between Emitter & Receivers is possible.
  •  Blanking / bypassing individual channel is provided through software.
  •  System operation is unaffected by mains power fluctuation.
  •  Dirty or Oily screen make your machine off.
  •  Barrier operated on cycles scanning photo-electric infra-red techniques.
  •  Various barrier heights are available for covering 90mm to 1710mm.
  •  Higher covering heights available upon request.
  •  Use of solid state components & special construction technique ensures that barrier is not affected by normal vibration & shock.
  •  Sensor connections are provided through plug in connectors.
  •  Self-Checking circuitry with two outputs continuously monitors failure of any of the beam in the system and stop the machine if failure is detected.
  •  LED indicators are provided of status indication of each channel.
  •  LED indicators are also provided for output and sense.
  •  Choice for suitable Control Unit available as per different working conditions.
  •  Flexible fixing arrangements to suits individual requirements.
  •  Increases productivity while maintaining required safety.
Specifications
Power Supply 12-24 Volts DC
Supply Protection Reverse Polarity Protected
Output PNP-NC +PNP-NC
Output Indications Through LEDs
Channel Indication LED indication for each channel
Response Time On to Off: 10-15 msec.
Off to On: 50-100 msec.
Restart Automatic
No of Beams 4,6,8,10,16,24,32 nod.
Beam by Pass Provided
Protected Heights 90-1710 mm
Pitch Offered 11-20-30-40-50-90 mm
Adjustable Range Up to 3 meters (Higher Range Available)
Electrical Connections Plug in Connector for Emitter & Receiver
Standard Cable Length 5 meters for Emitter, 3 meters for Receiver
Operating Temperature Up to 55 degree centigrade
Fastening Modes Slide Slot on the back with Adjustable height
Cross Section 36*42 mm
Applicable to Directly work with PLCs / Controllers
Suitable for Machines with quick emergency stop
Protections Output short circuit protected
Vibration Resistance Amplitude: 0.75 mm (p), Freq: 10-55 Hzs, Rate = 1 Octave/min
Operating Ambient Light 500 Lux (max) when source is placed opposite to receiver
> 3000 flux when source is placed at an angle of 20 degrees



2 Output Models for HAND Protection
Supply : 12-24 Volts DC
Covered Range : 300 – 3000mm, Dual PNP Output
Indication : LED Indicator and By-Pass facility for each beam
Protected Height mm Parallel Beam Models No. of Beams Cross Beam Models No. of Beams Pitch in mm Overall Height mm
45 ULC 0415-2OP 4 ULX 0415-2OP 10 15 75
60 ULC 0420-2OP 4 ULX 0420-2OP 10 20 90
75 ULC 0615-2OP 6 ULX 0615-2OP 16 15 105
90 ULC 0430-2OP 4 ULX 0430-2OP 10 30 120
100 ULC 0620-2OP 6 ULX 0620-2OP 16 20 130
105 ULC 0815-2OP 8 ULX 0815-2OP 22 15 150
120 ULC 0440-2OP 4 ULX 0440-2OP 10 40 165
135 ULC 1015-2OP 10 ULX 1015-2OP 18 15 210
140 ULC 0820-2OP 8 ULX 0820-2OP 22 20 210
150 ULC 0450-2OP 4 ULX 0450-2OP 10 50 240
150 ULC 0630-2OP 6 ULX 0630-2OP 16 30 240
180 ULC 1020-2OP 10 ULX 1020-2OP 28 20 250
200 ULC 0640-2OP 6 ULX 0640-2OP 16 40 290
210 ULC 0830-2OP 8 ULX 0830-2OP 22 30 290
225 ULC 1615-2OP 16 ULX 1615-2OP 46 15 300
250 ULC 0650-2OP 6 ULX 0650-2OP 16 50 340
270 ULC 1030-2OP 10 ULX 1030-2OP 28 30 360
280 ULC 0840-2OP 8 ULX 0840-2OP 22 40 365
300 ULC 1620-2OP 16 ULX 1620-2OP 46 20 370
350 ULC 0850-2OP 8 ULX 0850-2OP 22 50 435
360 ULC 1040-2OP 10 ULX 1040-2OP 28 40 450
450 ULC 1050-2OP 10 ULX 1050-2OP 28 50 540
450 ULC 1630-2OP 16 ULX 1630-2OP 46 30 530
600 ULC 1640-2OP 16 ULX 1640-2OP 46 40 685
690 ULC 2430-2OP 24 ULX 2430-2OP 70 30 770
750 ULC 1650-2OP 16 ULX 1650-2OP 46 50 835
920 ULC 2440-2OP 24 ULX 2440-2OP 70 40 1005
930 ULC 3230-2OP 32 ULX 3230-2OP 94 30 1010
1150 ULC 2450-2OP 24 ULX 2450-2OP 70 50 1235
1240 ULC 3240-2OP 32 ULX 3240-2OP 94 40 1325
1550 ULC 3250-2OP 32 ULX 3250-2OP 94 50 1635



2 Output Models for BODY Protection
Supply : 12-24 Volts DC
Covered Range : 500 -3000 mm, Dual PNP Output
Indication : LED indicator and Beam By-Pass for each channel
Protected Height mm Parallel Beam Models No. of Beams Cross Beam Models No. of Beams Pitch in mm Overall Height mm
270 UBP 0490-2OP 4 ULX 0490-2OP 14 90 360
630 UBP 0890-2OP 8 ULX 0890-2OP 22 90 720
990 UBP 1290-2OP 12 ULX 1290-2OP 34 90 1080
1350 UBP 1690-2OP 16 ULX 1690-2OP 46 90 1440
1710 UBP 2090-2OP 20 ULX 2090-2OP 58 90 1800



2 Output Models for FINGER Protection
Supply : 12-24 Volts DC
Covered Range : 45 – 600 mm, Dual PNP Output
Indication : LED Indicator for final output
Protected Height mm Cross Beam Models No. of Beams Pitch in mm Overall Height mm
135 UFX 1015-2OP 28 15 210
180 UFX 1020-2OP 28 20 250
225 UFX 1615-2OP 46 15 300
300 UFX 1620-2OP 48 20 370
345 UFX 2415-2OP 70 15 420
