Hybrid Gas Cooling Systems

Hybrid Gas Cooling Systems

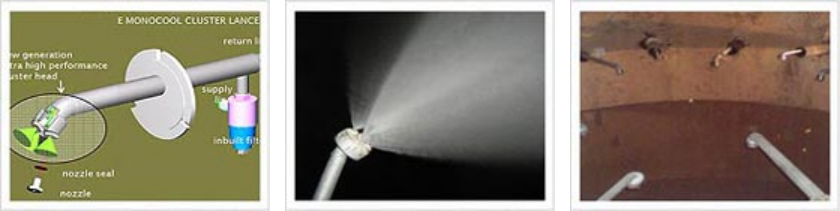

This is a combination of Spillback & High Pressure lances in the tower replacing the conventional Single nozzle or cluster lances

Can be fitted in the same protection pipe of the Chemtrols High performance single nozzle lance.

50% to 70% lances will be high pressure fixed volume spray - No return-flow control - The lances have 5 nozzles

Balance lances are spillback with return-flow control - The lance cluster have 3 nozzles. This combination allows better atomization and performance of the system.

The flow control of water will be from 50% to 100% of the total water injection rate. During stable plant operation this variation is sufficient for control.

If higher rangability is required, the high pressure lances can be arranged in 2 or 3 stages with ON/OFF valves for each stage

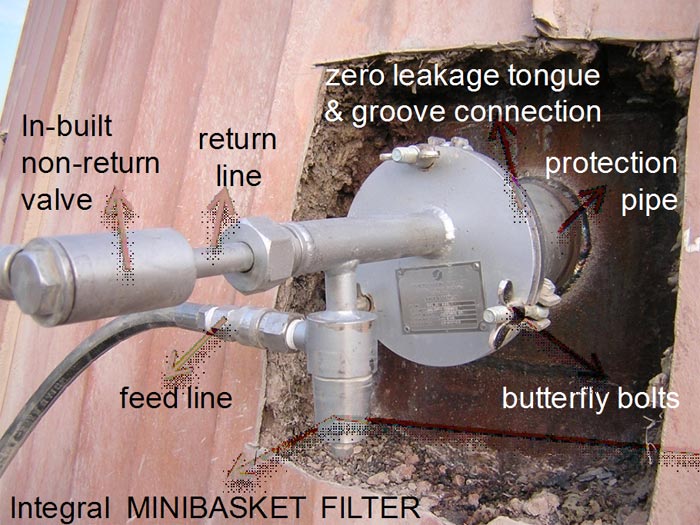

The most important component in the gas conditioning system is the New generation high performance lances, which has an inbuilt filter and an NRV as integral part of the lance.

These are user friendly, light and robust for the application.

The inbuilt filter ensures non-clogging feature to the nozzle & increases the nozzle life doublefold.
