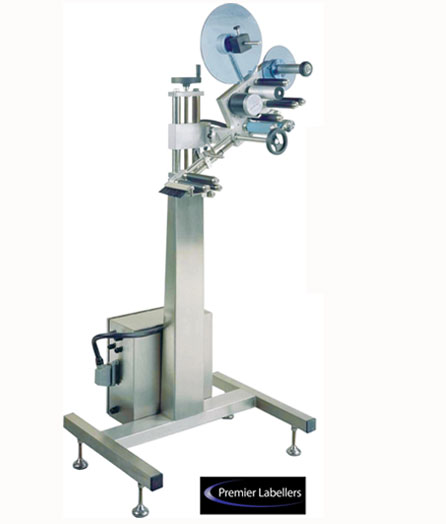

Automatic P100 Single side labeling machine (Self Adhesive)

⇒ Max Label Web Width used is 125mm / 210mm / 260mm.
⇒ Label length will be 10-200mm
⇒ Label Reel Core Diameter will be 75mm or 38mm
⇒ Label material used Most types currently available
⇒ Machine Linear speed is 4-35m/min
⇒ Weight (approx) 150Kg
⇒ PLC Control Siemens S7
⇒ Integrated modem Siemens (optional)
⇒ Label gap sensor Optical / microswitch
⇒ Product sensor Clear object diffuse sensor
⇒ Compressed Air 60-80psi (if overprinter fitted)
⇒ Electrical Supply 1Ph 230V 50-60Hz
⇒ Electrical Consumption 1.5kW

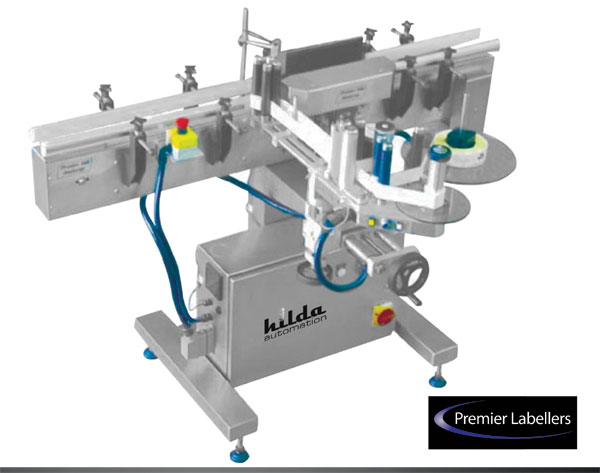

Automatic Mini Wraparound labeling machine (Self Adhesive)

⇒ Max Label Web Width 125mm / 210mm / 260mm
⇒ Label length 10-200mm
⇒ Label Reel Core Diameter 75mm or 38mm
⇒ Label material Most types currently available
⇒ Machine Conveyor 90w 50rpm variable speed
⇒ Conveyor length 1.5m / 2m
⇒ Conveyor width 3 1/4" 4 1/2" 6" Delrin slat chain / stainless steel
⇒ Linear speed 4-30 metres /min
⇒ Overal dimensions (LxWxH) 1500mm x 955mm x 1000mm
⇒ Working height 900mm +/-50mm
⇒ Weight (approx) 150Kg
⇒ PLC Control Siemens S7
⇒ Integrated modem Siemens (optional)
⇒ Label gap sensor Optical / microswitch
⇒ Product sensor Clear object diffuse sensor
⇒ Compressed Air 60-80psi (if overprinter fitted)
⇒ Electrical Supply 1Ph 230V 50-60Hz
⇒ Electrical Consumption 2.0kW

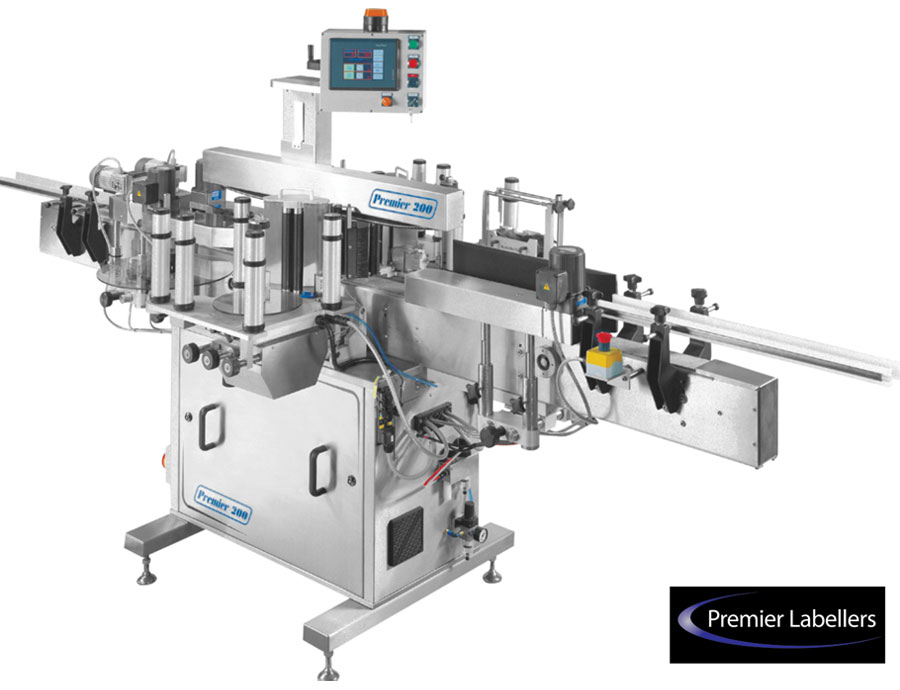

Automatic Front & Back labeling machine (Self Adhesive)

Max Label Web Width 125mm / 210mm / 260mm
Label length 10-200mm
⇒ Label Reel Core Diameter 75mm or 38mm
⇒ Label material Most types currently available
⇒ Conveyor Length 2.0m / 3.0m (or to suit application)
⇒ Conveyor Width 3 1/4" 4 1/2" 6" Delrin slat chain / stainless steel
⇒ Linear speed 4-35m/min
⇒ Overal dimensions (LxWxH) 2000 x 800 x 1300
⇒ Weight (approx) 200Kg
⇒ PLC Control Siemens S7
⇒ Integrated modem Siemens (optional)
⇒ Label gap sensor Optical / microswitch
⇒ Product sensor Clear object diffuse sensor
⇒ Touchscreen TFT 4" 640x480 resolution
⇒ Compressed Air 60-80psi (if overprinter fitted)
⇒ Electrical Supply 1Ph 230V 50-60Hz
⇒ Electrical Consumption 2.0kW

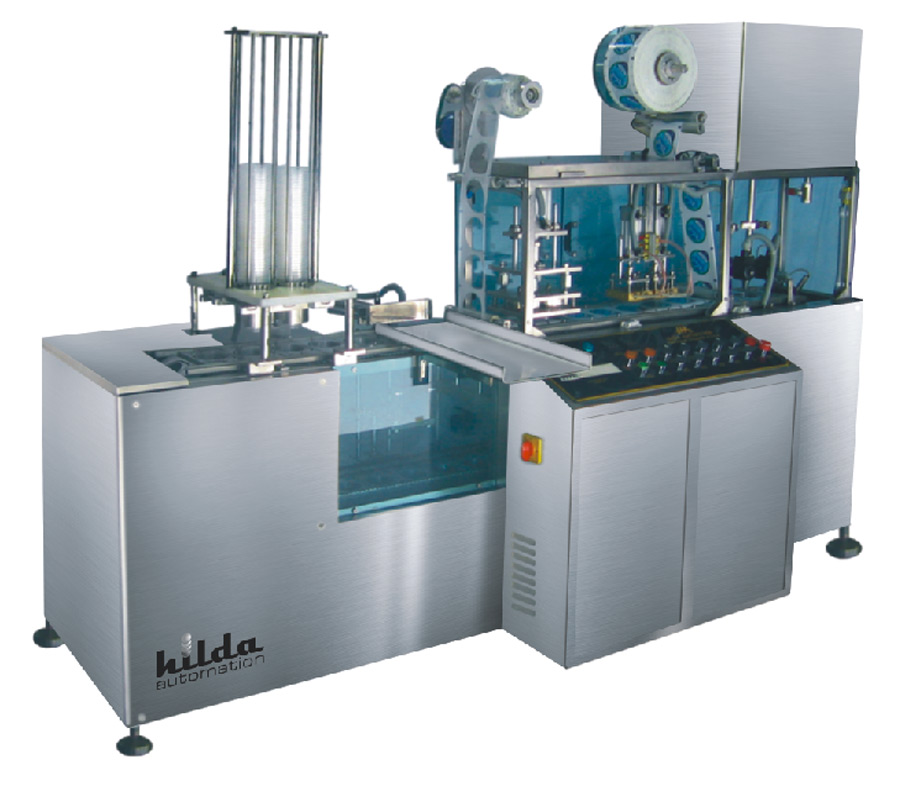

Linear 2 Head / Nozzle, Cup Rinsing, Filling & Sealing Machine

⇒ Machine in S.S. 304 and the product contact parts in S.S. 316.
⇒ Automatic loading and unloading operations.
⇒ Product :Free flowing products without particle like Mineral water, Juice, Milk etc.
⇒ Speed : 34-36 cups/min.
⇒ LID : Printed laminated film/Pre-cut AI. Foil.
⇒ To fill : Plastic cups, square/rectangle containers, trays etc.
⇒ Volume capacity - 100 ml. to 300 ml.
⇒ No container - No fill, No foil - No Seal.
⇒ UV light for sterilization.
⇒ Standard or custom designed machines available with higher speed.

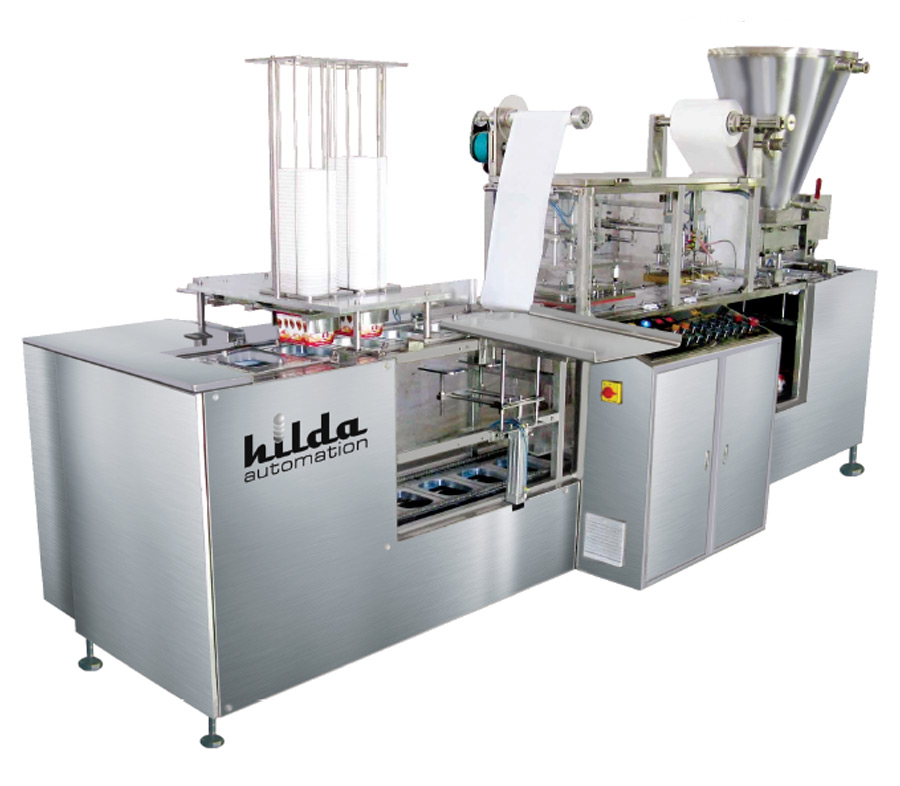

Linear 2 Head / Nozzle, Cup Rinsing, Filling & Sealing Machine (For Yogurt/Curd)

⇒ Machine in S.S. 304 and the product contact parts in S.S. 316.
⇒ Automatic loading and unloading operations.
⇒ Product: Viscous products like Curd/Yogurt, Mango pulp etc.
⇒ Speed: 32-34 cups/min.
⇒ LID: Printed laminated film/Pre-cut AI. Foil.
⇒ To fill: Plastic cups, square/rectangle containers, trays etc.
⇒ Volume capacity - 100 ml. to 300 ml.
⇒ No container - No fill, No foil - No Seal.
⇒ UV light for sterilization.
⇒ Standard or custom designed machines available with higher speed.

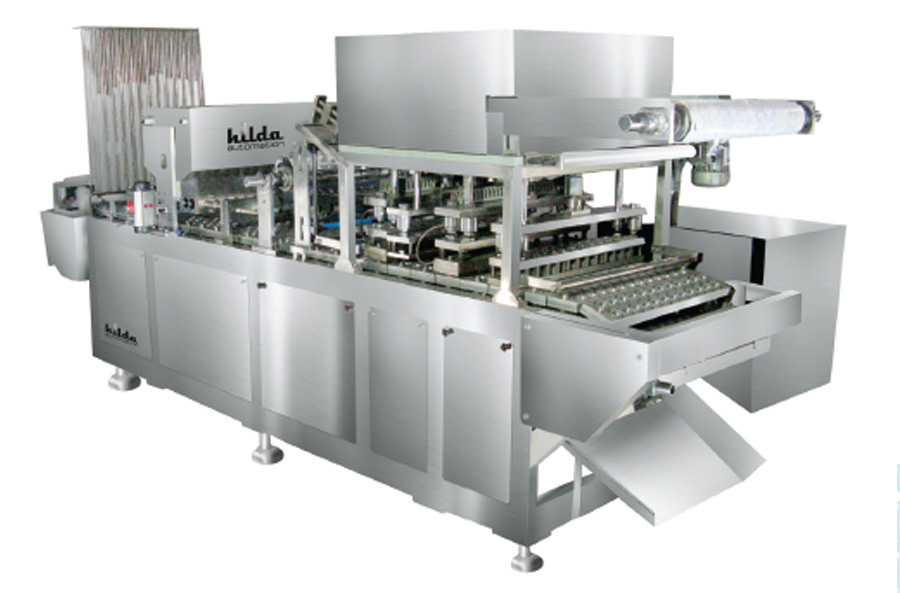

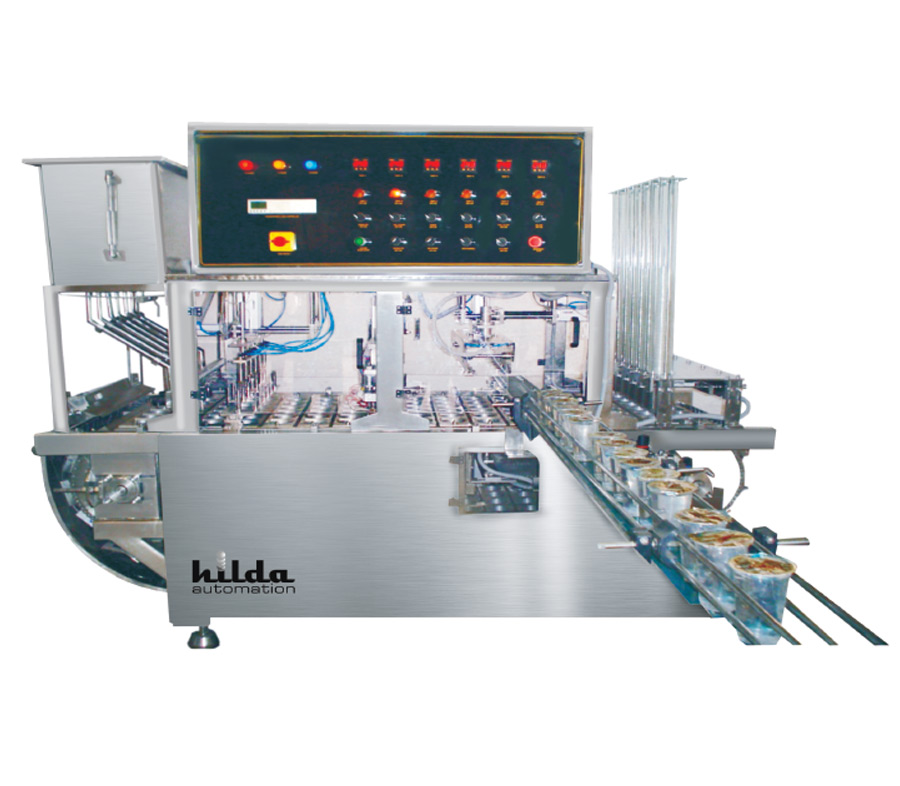

Automatic Linear 6-Head Cup Rinsing, Filling & Sealing Machine

⇒ Fully automatic linear operation for 100ml - 300ml ready made cups.
⇒ Maximum production speed of 74-80 cups/min.
⇒ Machine fully in S.S - 304 and product contact parts in S.S - 316.
⇒ Machine can be custom designed for Folio / Film as per requirement.
⇒ UV sterilization done on the empty cups before filling.
⇒ Provided with PLC control.
⇒ Belt type conveyor for automatic unloading.

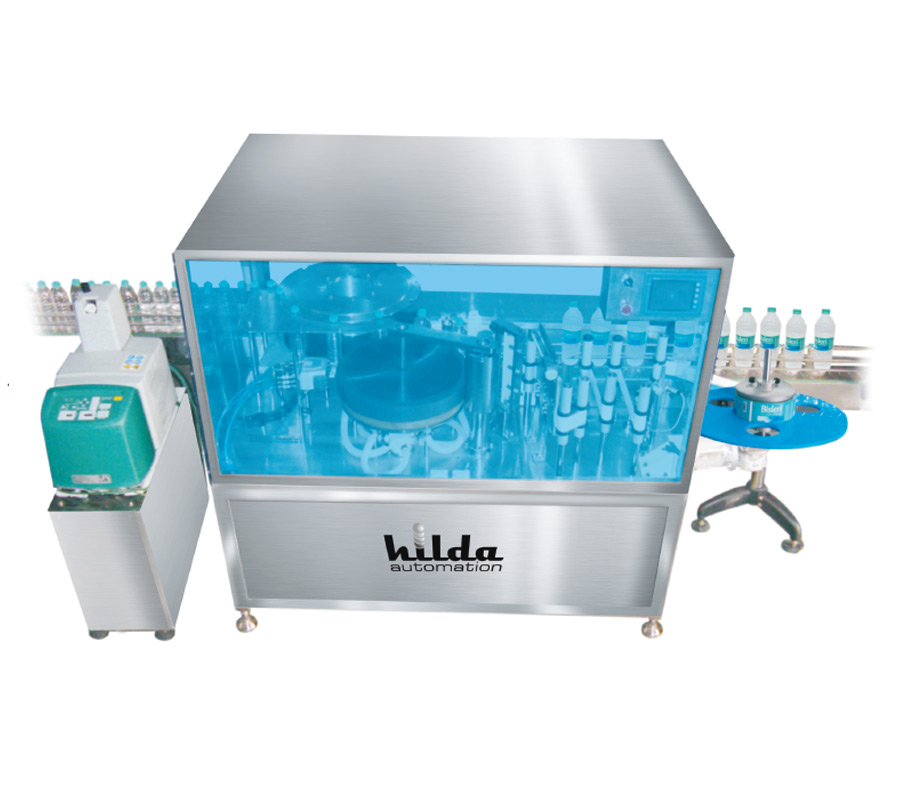

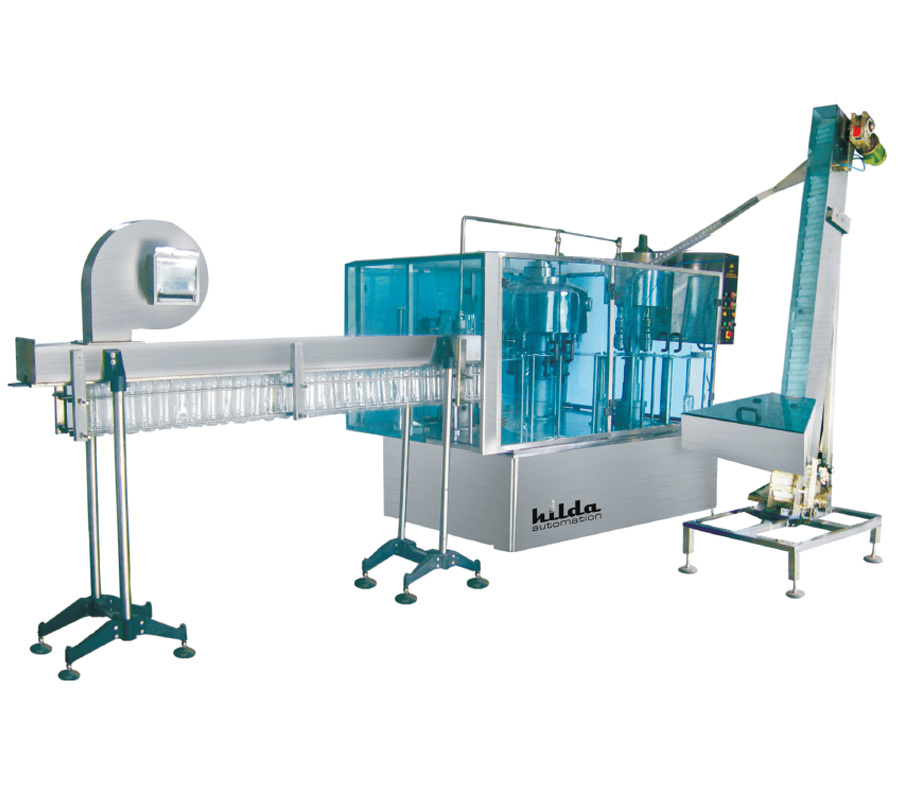

Automatic Bottle Rinsing, Filling and Capping Machine (Monoblock type)

⇒ Fully automatic Monoblock operation for 200ml - 2000ml bottles.
⇒ Can run PET bottles with air conveyor and Glass bottles with in-feed slat conveyor.
⇒ Maximum production speed 30/60/90/120/150 bottles/min.
⇒ Machine fully in S.S - 304 and all product contact parts in S.S - 316 quality.
⇒ Machine can be made for hot fill products or cold fill carbonated drinks.
⇒ UV sterilization for caps before capping operation.
⇒ Fitted with PLC control.
⇒ Elevator / Vibrator for automatic applying of caps.
⇒ Optional: Batch coder, Shrink tunnel

Automatic BOPP (Hot Melt) Labeling Machine

⇒ Fully automatic linear operation for 200ml - 2000ml bottles.(with certain change of parts).
⇒ Maximum production speed of 60 / 90 / 120 / 200 bottles/min.
⇒ Machine is built fully in Stainless Steel.
⇒ Height adjustments to suit various bottle sizes.
⇒ Imported gluing unit sprays minimal quantity of hot melt adhesive (very minimal wastage).
⇒ No cleaning of the nozzle or glue unit, before production (less maintenance & saves time).
⇒ Minimal change-over time, to shift from one size to an another size of the bottle.
⇒ Fitted with PLC control.

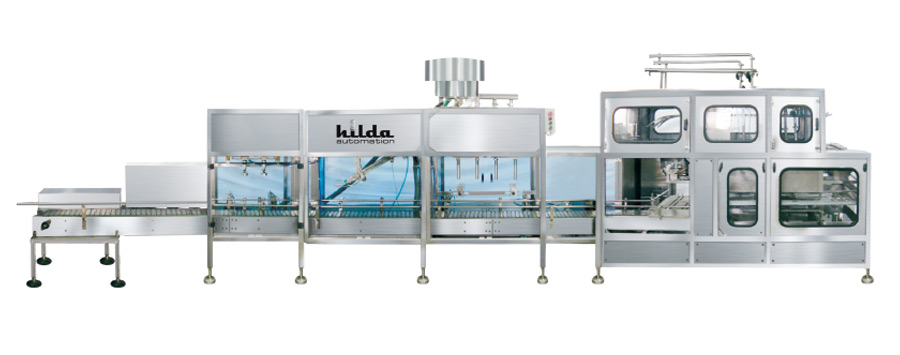

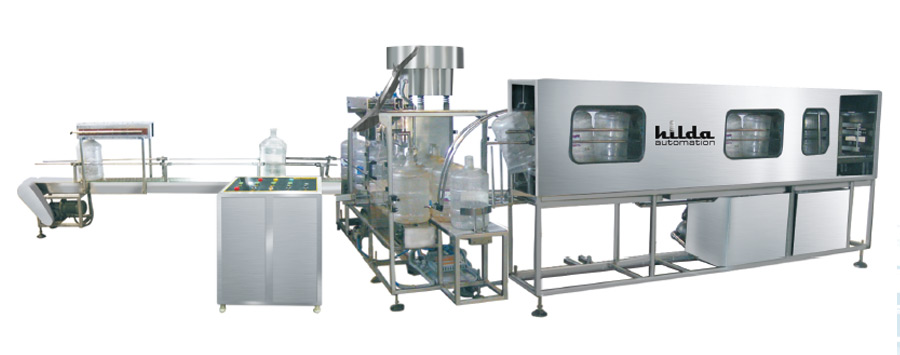

Automatic 20 litre Jar Rinsing, Filling and Capping Machine with Shrink Tunnel

⇒ Fully automatic linear PLC based for 20 ltr. Jar/Bubble top.
⇒ Maximum production speed of 200/300/400/500/800 Jars/hour.
⇒ Machine fully in S.S - 304 and product contact parts in S.S - 316.
⇒ Machine can be tailor-made as per floor space availability.
⇒ UV sterilization for caps before capping operations.
⇒ Screw or Press-fit capping can also be done.

Automatic 5 litre Jar Rinsing, Filling and Capping Machine

⇒ Fully automatic linear PLC based for 5 ltr. Jar/Bubble top.
⇒ Maximum production speed of 960 Jars/hour in 4 heads.
⇒ Machine fully in S.S - 304 and product contact parts in S.S - 316 quality.
⇒ Machine can be tailor-made as per floor space availability.
⇒ UV sterilization for caps before capping operations.
⇒ Machine can be tailor-made as per the floor space availability.

24 Head Cup Filling, Sealing and Cutting Machine for Jelly

⇒ Fully automatic linear operation for 10ml - 50ml ready made cups.
⇒ Can fill Jam/Jelly/ Sauce/ Ketchup/ Chocolate sauce/ viscous products etc.
⇒ Maximum production speed of 200 - 400 cups/min.
⇒ Machine fully in S.S - 304 and every product contact part in S.S - 316 quality.
⇒ Machine can be tailor-made for Foil or Film as per requirement.
⇒ Volumetric multi-head fillers for filling.
⇒ Pick and place system for pre-cut AI. foil is also made.
⇒ Suitable for a variety of containers : Round, Square, Hexagon, etc.
⇒ Standard or custom designed and with higher speeds are also available.
⇒ Camfield mechanism for accurate indexing.
⇒ Fitted with PLC control.
⇒ Proper drain tray for effective removal of water.
⇒ Effective CIP system for cleaning of machine.
⇒ Automatic filling machines.

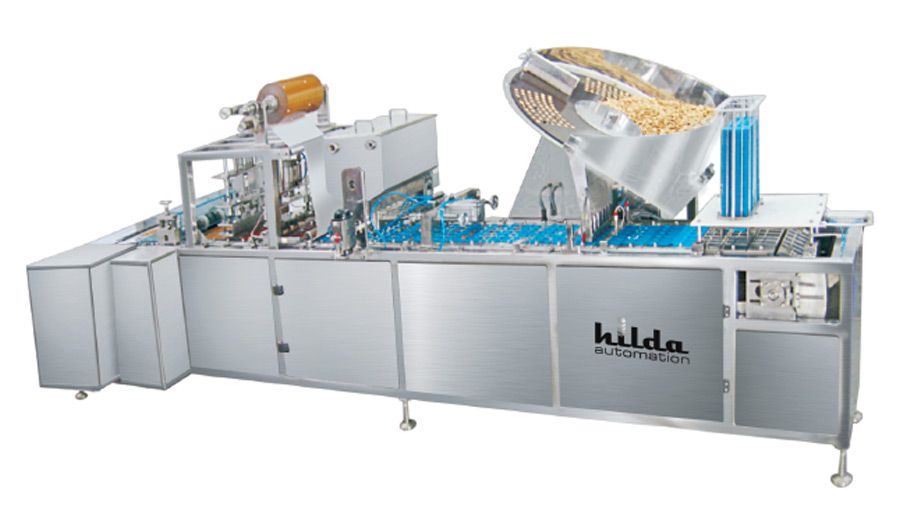

Biscuit and Cream Filling, Sealing and Cutting Machine

6 Head Filling & Sealing Machine (Jam)

⇒ Machine in S.S. 304 and the product contact parts in S.S. 316.
⇒ Fully Automatic loading and unloading operations.
⇒ Volumetric piston fillers operated by Pneumatic cylinder/ Servo motor.
⇒ No container - No fill, No foil - No Seal.
⇒ Fitted with PLC control.
⇒ Speed: 90-100 cups/min.Standard or custom designed machines available with higher speed.

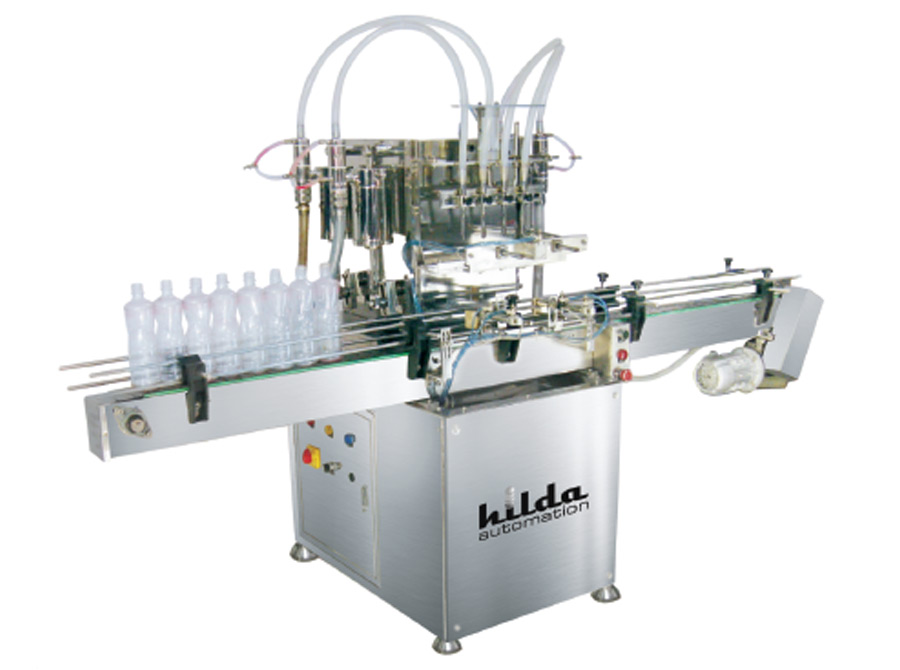

Filling Machines with 3/2 way, Rotary Valve System

⇒ Fully automatic linear operation.
⇒ Can fill Oil/Shampoo etc.
⇒ Options available 2, 4 & 6 head.
⇒ No bottle - No fill : feature (Eliminates wastage).
⇒ Maximum production speed of 24-60 containers/min.
⇒ Machine is fully in S.S - 304 and all product contact parts are in S.S - 316 quality.
⇒ Filling system based on Volumetric syringe 3/2 way rotary valve.
⇒ Stainless steel inter-connected conveyor.
⇒ VFD used to increase of decrease the conveyor speed.
⇒ Standard or custom designed machine with higher speeds are also available.

Filling Machines with NRV system

⇒ Fully automatic linear operation.
⇒ Can fill Jam/ Jelly/Sauce/Chocolate/Viscous products etc.
⇒ Options available 2, 4 & 6 head.
⇒ No bottle - No fill.
⇒ Maximum production speed of 24-60 containers/min.
⇒ Machine is fully in S.S - 304 and all product contact parts are in S.S - 316 quality.
⇒ Filling system based on NRV.
⇒ Stainless steel inter-connected conveyor.
⇒ VFD used to increase of decrease the conveyor speed.
⇒ Standard or custom designed machine with higher speeds are also available.

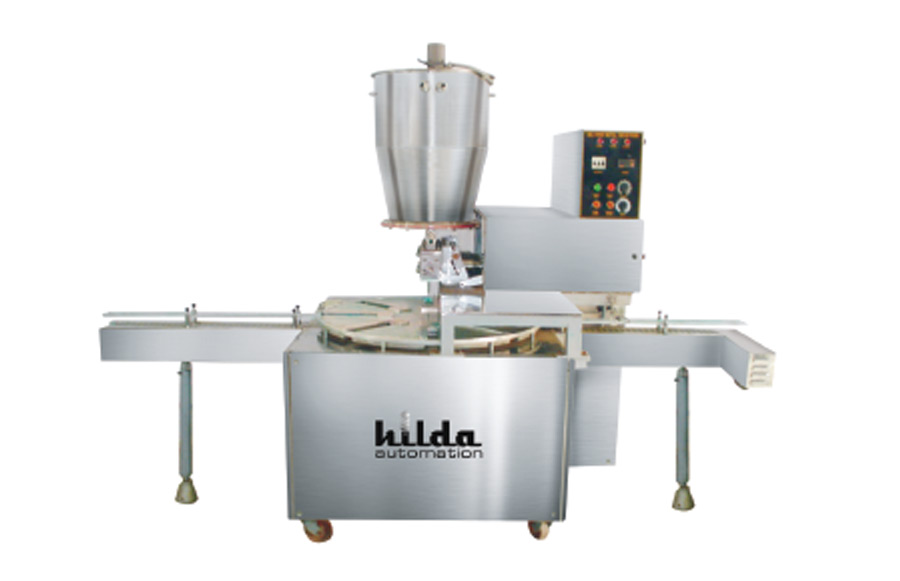

Filling Machine with hopper piston system

⇒ Fully automatic Rotary Indexing operation.
⇒ Suitable for viscous products.
⇒ Maximum production speed of 60 - 70 bottles/min.
⇒ Machine fully in S.S - 304 and product contact parts in S.S - 316 quality.
⇒ Filling system based on Volumetric syringe 3/2 way rotary valve.
⇒ Options available : 2,4,6 and 8 head.
⇒ Mechanically operated with drip-less filling.
⇒ Standard or custom-designed machine with higher speeds are also available.

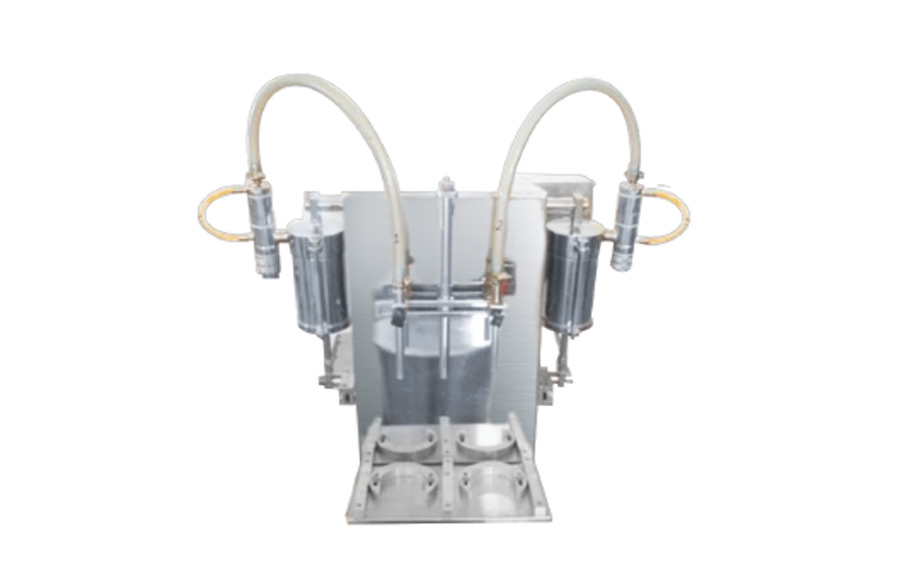

Semi Automatic Filling Machine

⇒ Semi-Automatic operation. (Manual loading and unloading)
⇒ Table top model.
⇒ Double head / Nozzle machine.
⇒ NRV type filling mechanism.
⇒ Machine fully in S.S-304 and all product contact parts in S.S.-316 quality.
⇒ Speed solely depends upon the operator.

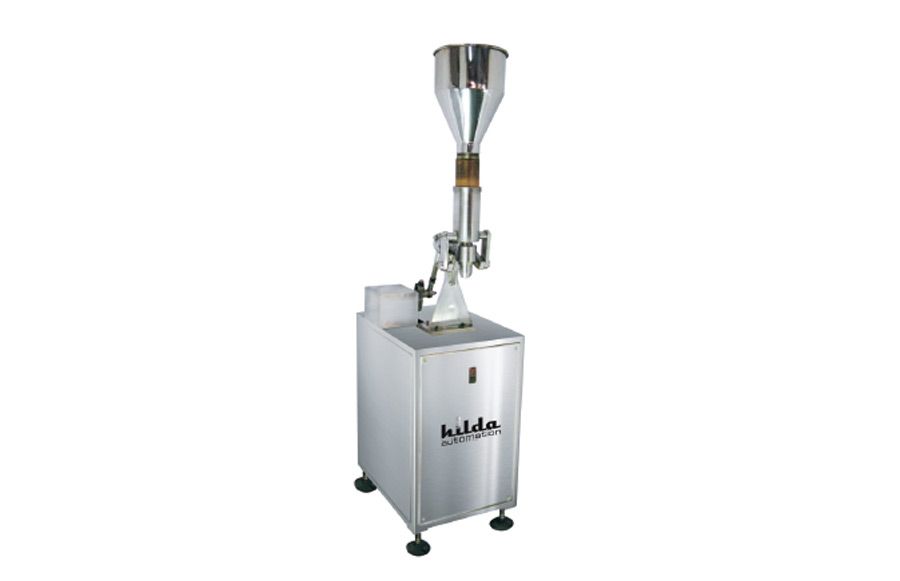

Semi Automatic Filling Machine

⇒ Semi-Automatic operation. (Manual loading and unloading)
⇒ Suitable for viscous products.
⇒ Single Head machine.
⇒ Eccentric mechanism.
⇒ Machine fully in Stainless Steel - 304 and product contact parts in Stainless Steel - 316.
⇒ Speed solely depends upon the operator.

Crown Capping Machine

⇒ Fully automatic operation.
⇒ Machine structure in Stainless Steel.
⇒ Rotary Indexing type mechanism.
⇒ Can be made for production speed upto 36 caps/min with single head.
⇒ Vibrator with chute for automatic loading of cap.
⇒ Option available : Single head or multi head.
⇒ Standard or custom designed machine with higher speed are also available.

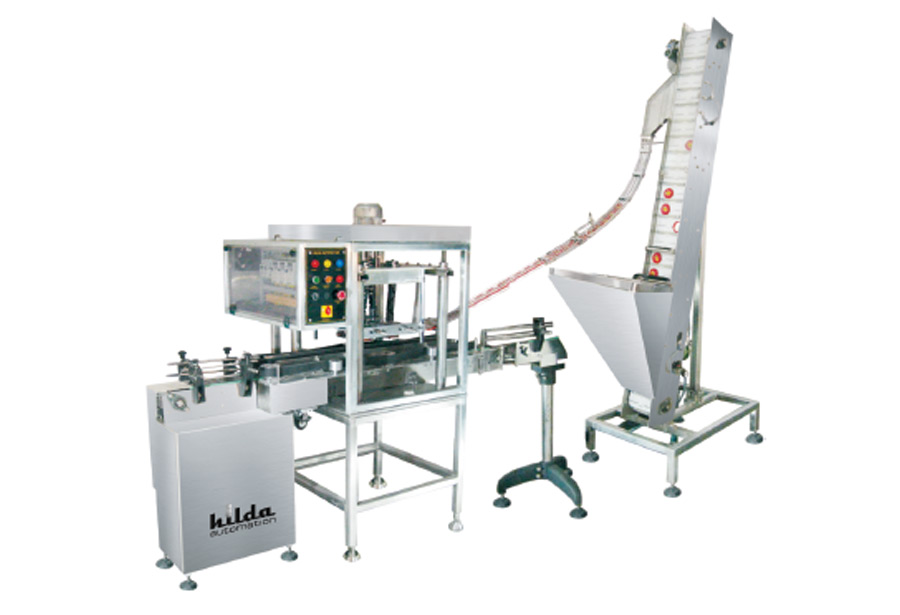

High Speed Screw Capping Machine

⇒ Fully automatic operation.
⇒ Stainless Steel machine structure.
⇒ Belt type capping mechanism.
⇒ Can be made for production speed upto 60-90 caps/min.
⇒ Elevator with chute for automatic loading of caps.
⇒ Standard or custom designed machine with higher speed are also available.

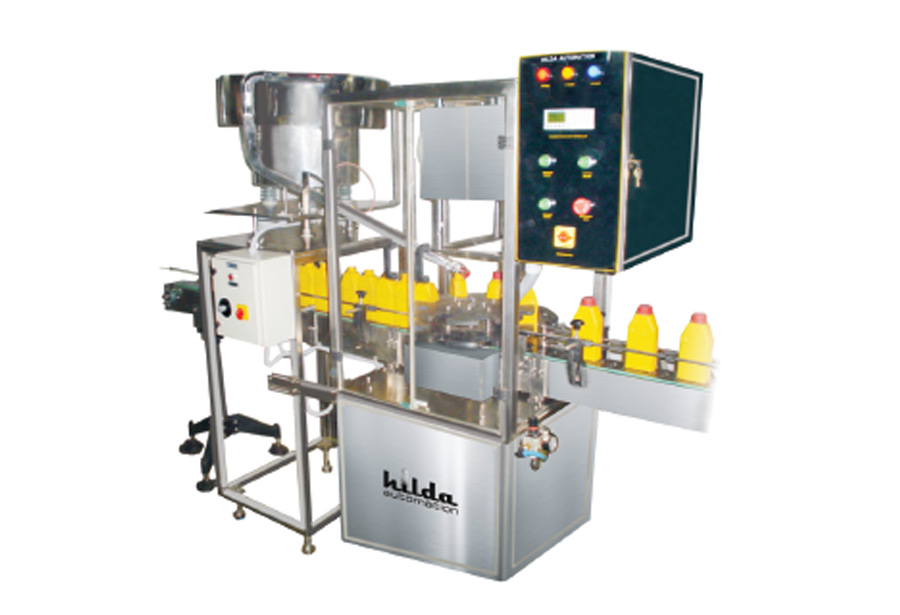

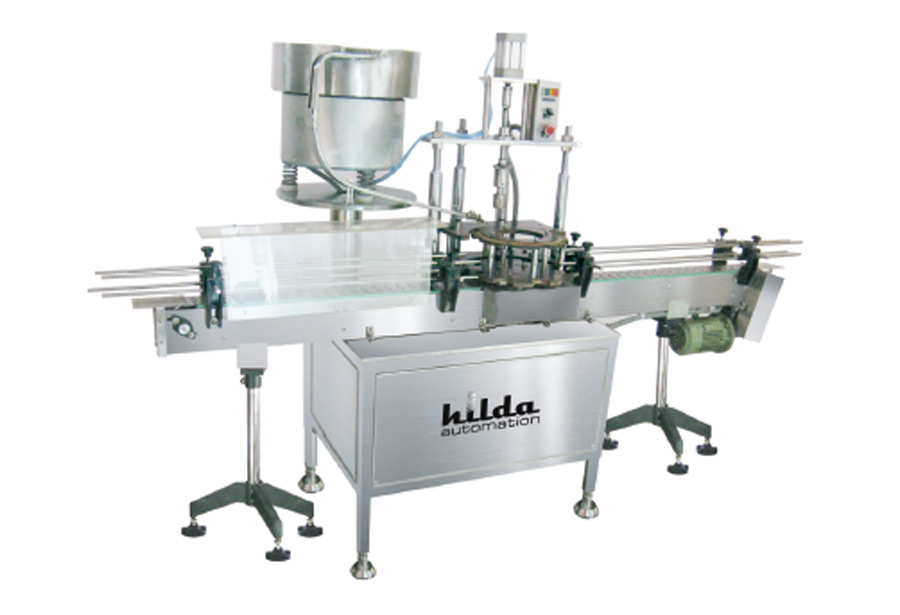

Screw Capping Machine

⇒ Fully automatic operation.
⇒ Stainless Steel machine structure.
⇒ Rotary Indexing type mechanism.
⇒ Can be made for production speed upto 36 caps/min.
⇒ Vibrator with chute for automatic loading of crown caps.
⇒ Option available single head or multi head.
⇒ Standard or custom designed machine with higher speed are also available.

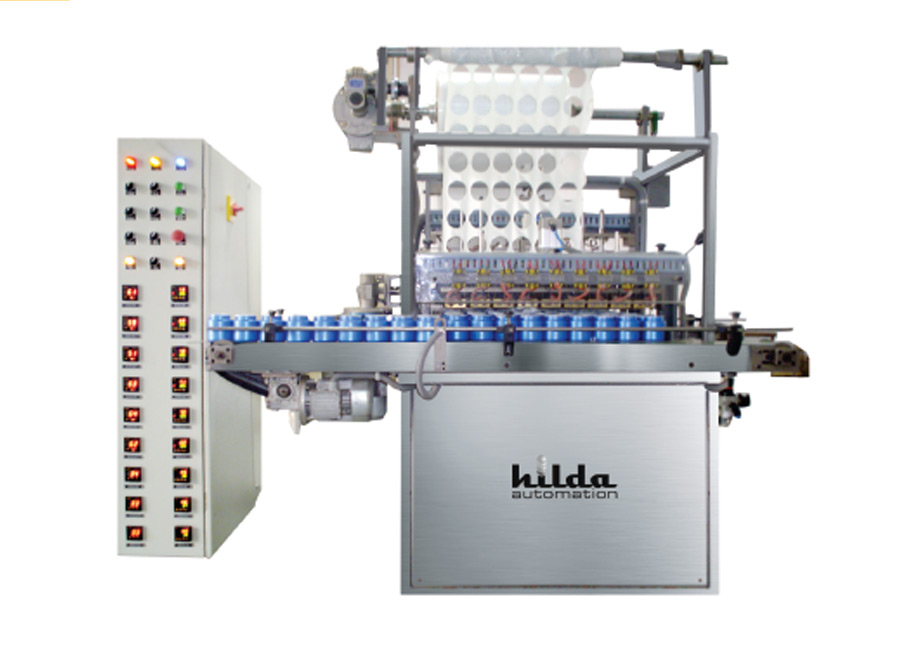

Container Sealing and Cutting Machine

⇒ Fully automatic Rotary Indexing operation.
⇒ Machine structure will be of M.S. powder coated.
⇒ For guaranteed sealing in laminated films.
⇒ Sleek and compact design.
⇒ Can be made to produce speed upto 100 containers/min.
⇒ Sealing media required - printed/plain laminated film in roll form.
⇒ With in-feed and out-feed belt conveyor.
⇒ Separate electrical panel to control individual film in roll form.
⇒ Separate electrical panel to control individual temperature setting.
⇒ VFD used to increase or decrease the speed of the conveyor.
⇒ Choice of standard or custom designed machine with higher speed are also available.

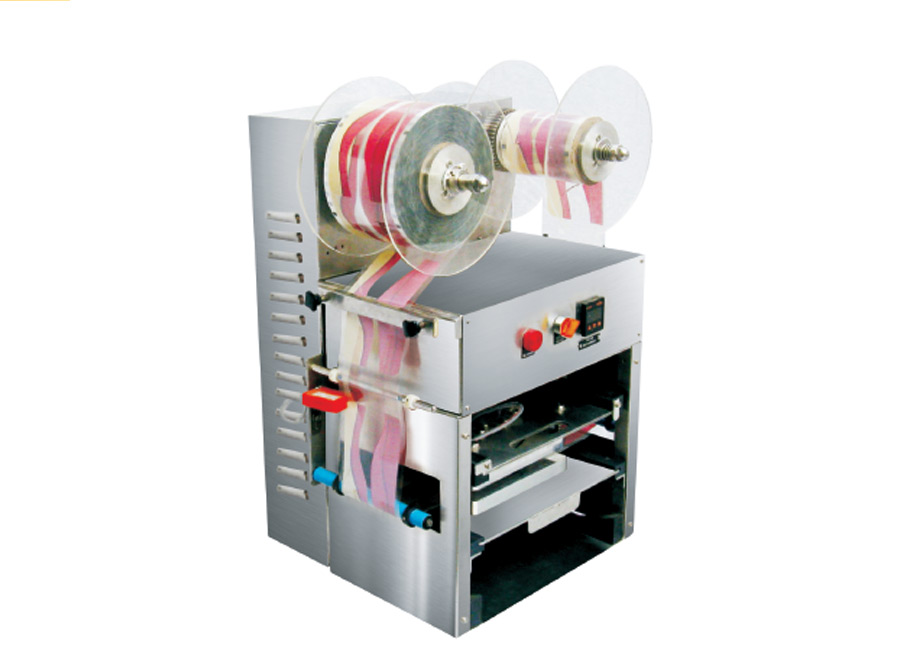

Semi Automatic Sealing Machine

⇒ Semi-Automatic operation. (Manual loading and unloading)
⇒ Table top model.
⇒ Sleek and compact design.
⇒ Sealing media requirement - printed/plain laminated film in roll form.
⇒ Specially designed for least production industry.
⇒ Single container sealing at a time.
⇒ Can seal round, oval, square, rectangular Plastic containers.
⇒ Machine built fully in Stainless Steel.
⇒ Speed solely depends upon the operator.

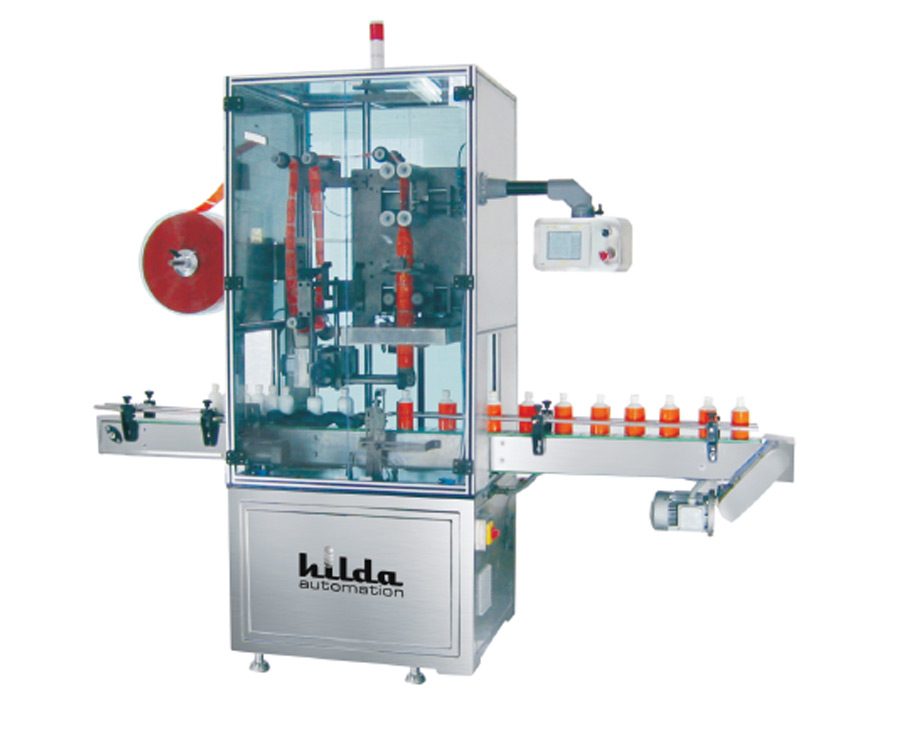

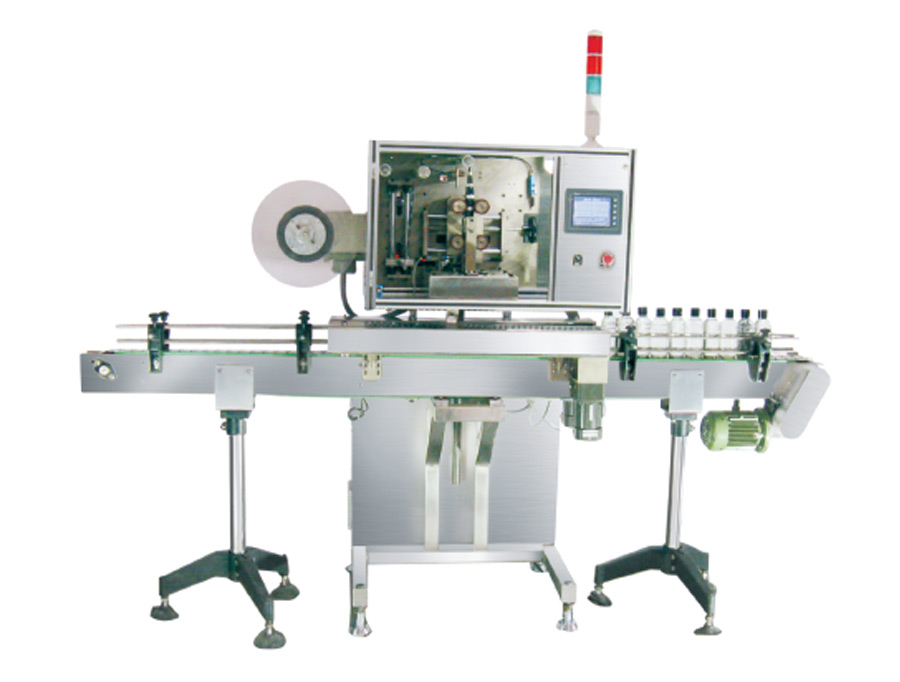

Automatic Body Sleeve Applicator

⇒ Fully automatic operation.
⇒ No Bottle - No Sleeve-Feature (eliminates wastage).
⇒ Rotary cutting system.
⇒ Can handle round glass / plastic bottles.
⇒ Speed of 40 bottles to 300 bottles/min. depending on the cut length of the sleeve.
⇒ Servo motors for more accuracy.
⇒ Fitted with digital PLC control.
⇒ Height adjustments to suit height variant bottles.
⇒ Eye mark sensor for accurate cutting in printed sleeves.
⇒ VFD used to increase or decrease the speed wherever necessary.
⇒ Can easily be synchronized with a tunnel.

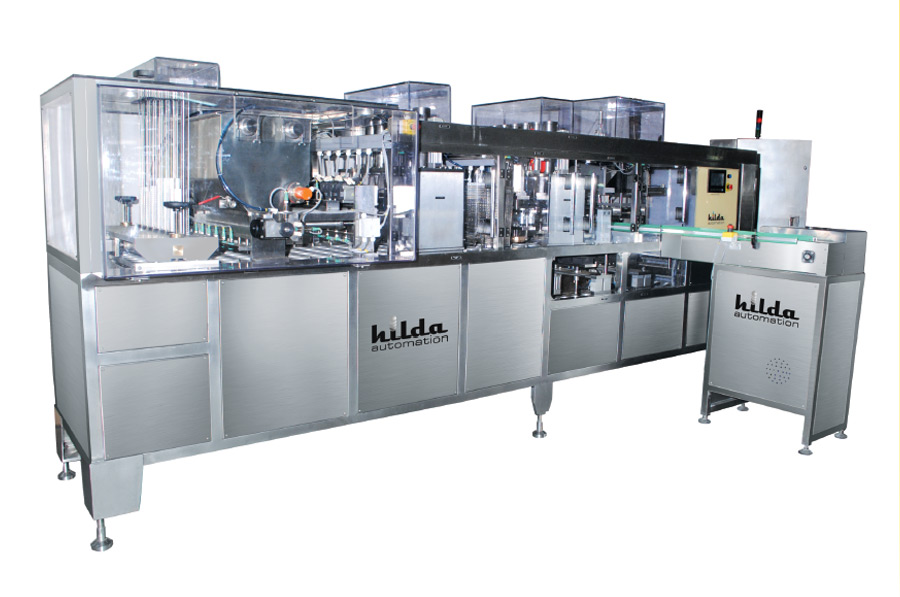

Shrink Sleeve Applicator with Tunnel

Automatic Neck Sleeve Applicator (Tamper Evident Seal)

⇒ Fully automatic operation Fitted with digital PLC control.
⇒ No bottle - No sleeve feature (eliminates wastage).
⇒ Rotary cutting system.
⇒ Can handle round glass/plastic bottles.
⇒ Speed of 40 bottles to 300 bottles/min depending on the cut length of the sleeve.
⇒ Servo motors for more accuracy.
⇒ Height adjustments to suit various bottle sizes.
⇒ Eye mark sensor for accuratecutting in printed sleeves.
⇒ Can easily be synchronized with a tunnel.

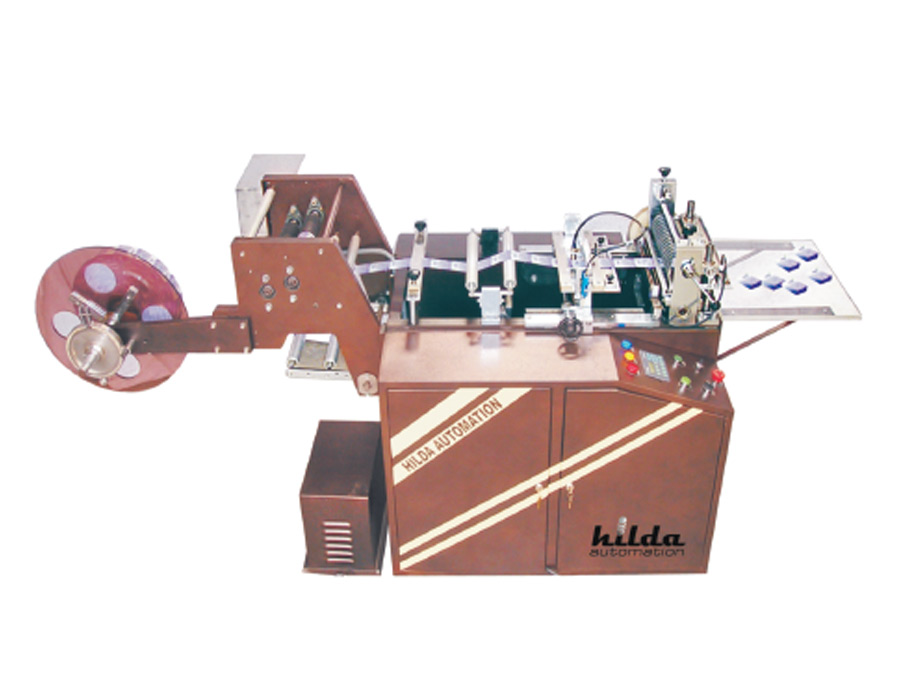

Sleeve Cutting Machine

⇒ Fully automatic operation.
⇒ Machine structure will be of M.S. powder coated.
⇒ Servo motors for more accuracy.
⇒ Fitted with digital PLC control.
⇒ Eye mark sensor for accurate cutting in printed sleeves.
⇒ Cut length : 20 to 310 mm.
⇒ Perforation : Horizontal / Vertical perforation.
⇒ Purpose : To cut the film in specified length from the roll form.
⇒ Speed : 350 - 400 cuts/min. at 50 mm. length.
⇒ Standard or custom designed with higher speeds are also available.

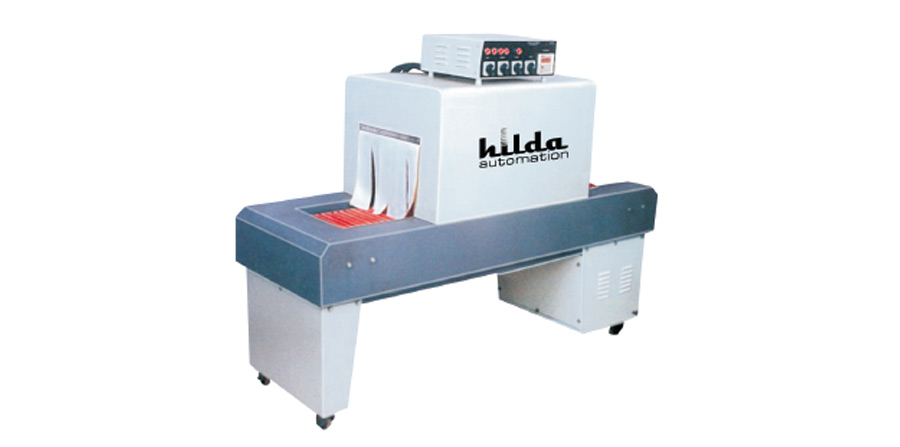

Shrink Tunnel (Heat Based)

⇒ Fully automatic operation if synchronized with a Shrink sleeve applicator.
⇒ Specially designed tunnel to overcome wrinkles, color bleeding or sleeve shifting issues.
⇒ Specially designed blower locations for even distribution of heat.
⇒ Can handle Round, Oval, Square, Rectangular items
⇒ Tunnel structure will be of M.S. powder coated.
⇒ Speed of 40 bottles to 120 bottles/min. depending on the cut length of the sleeve.
⇒ Height adjustments to suit various bottle sizes.

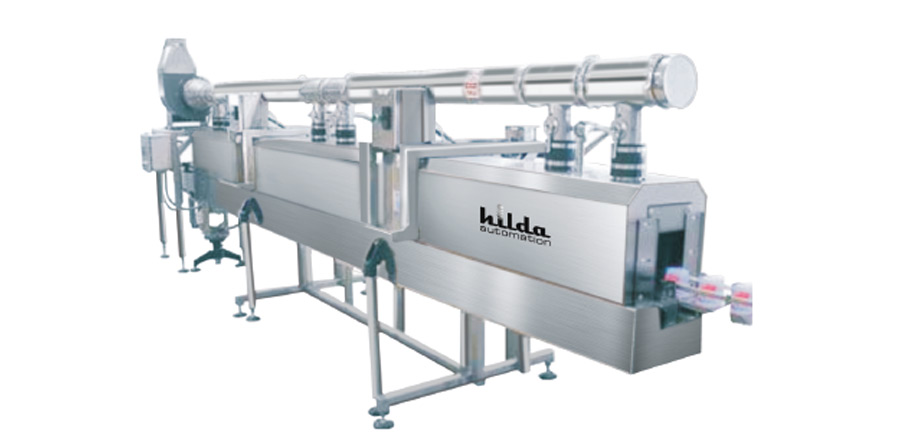

Shrink Tunnel (Steam Based)

⇒ Fully automatic operation if synchronized with a shrink sleeve applicator.
⇒ Specially designed tunnel for high speed shrinking, superior finish and quality.
⇒ Can handle round, oval, square, rectangular containers, etc.
⇒ Tunnel fully in stainless steel.
⇒ Speed of 150 bottles to 300 bottles/min. depending on the cut length of the sleeve.
⇒ Height adjustments to suit various bottle sizes.

Shrink Wrapping Machine

⇒ Semi automatic operation. (manual loading and unloading)
⇒ Tunnel structure will be of M.S. powder coated.
⇒ Specially designed shrink wrapping machine for quality shrinking and even distribution of heat.
⇒ Speed solely depends upon the operator.
