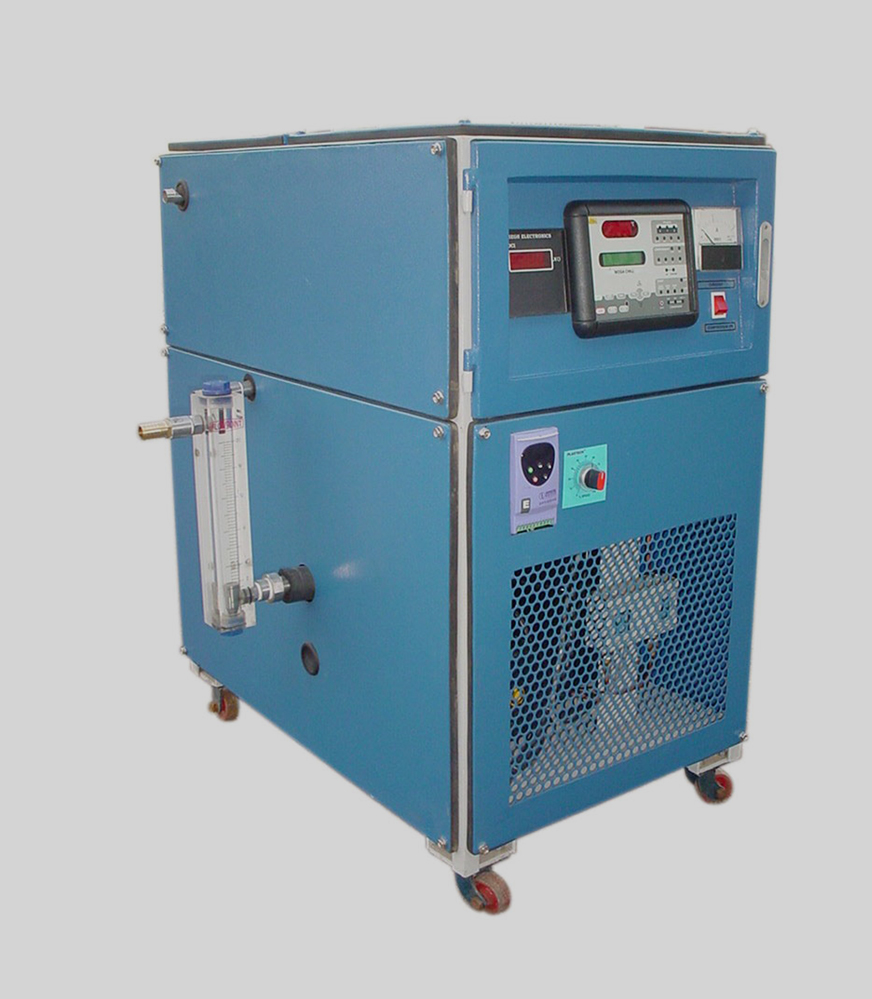

LEO-CHILL MI Series Chillers
LEO-CHILL MI Series Chillers
- LEO-CHILL range of MI Series Chillers is the latest version of the original circulating system. Designed to fit into tight spaces, it provides accurate dependable control for your process applications and utilizes less floor space.
- The Most important feature of this chiller is, it is without a storage tank and the media to be cooled is chilled Directly due to a specially designed SS evaporator. Available in Air-Cooled and Water-Cooled Having a temperature range from (+) 100C to (+) 200C.
- MI Series range of Chillers features Non-Corrosive components in both the refrigeration and fluid handling circuits. Combined with a durable supply pump, and Stainless Steel Evaporator.
- To ensure Precise process Fluid Temperatures a Microprocessor based Temperature Controller is standard on the 1 Ton to 3 Ton chillers.
- Well-designed, easy to operate, in built Control Panel incorporating fuses, Switchgears, LED displays for Fault Detection is a standard feature in the full range of chillers.
- APPLICATIONS: Plating industry / Micro molding / Laboratory and Pharmaceutical.
Specifications for Chillers
| MODEL | MI 0.3T | MI 0.75T | MI 1T |
|---|---|---|---|
| Temperature | 100C to 180C | 100C to 180C | 100C to 180C |
| Capacity in Kcal/Hr | 910 Kcal/Hr | 2268 Kcal/Hr | 3025 Kcal/Hr |
| Compressor kW | 0.45 | 1.02 | 1.26 |
| Inlet/Outlet Con | 3/4”BSP | 1”BSP | 1”BSP |
| Con.Load H.P | 0.6 | 1.4 | 1.70 |
| Refrigerant | R-22/ R 404 | R-22/ R 404 | R-22/ R 404 |
| Chiller | DX SS | DX SS | DX SS |
| Condenser | Air Cooled | Air Cooled | Air Cooled |
Note:The above compressor Kw are based on evaporation temperature of 100C
