LEO-CHILL MX Series Chillers
LEO-CHILL MX Series Chillers

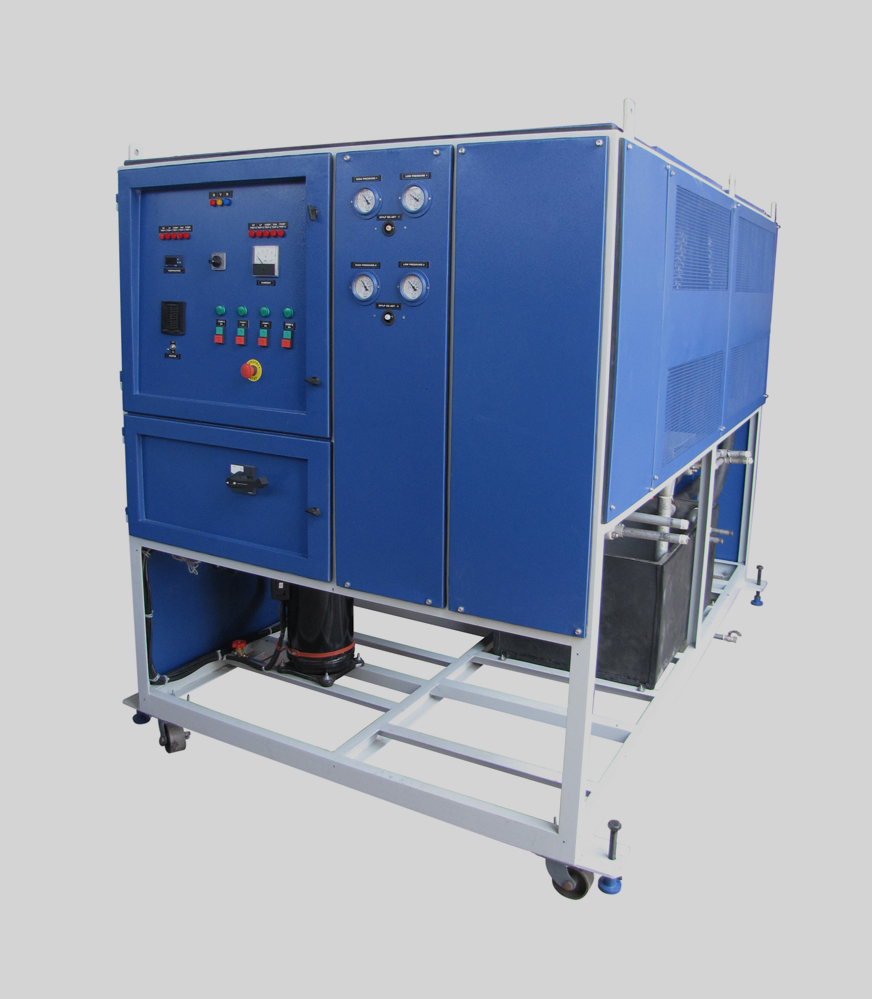

- LEO-CHILL range of MX Series Chillers is ready to use factory built packaged chiller designed and tailored to meet large capacity requirements. Having a temperature range from (-) 40° C to (+) 15° C.
- MX Series Chillers range is built with advance Dependable Controls, which give optimum performance under variable operating conditions. Chillers have been engineered to offer many features in a Compact design.
- These chillers are available Air Cooled & Water Cooled range. Ranging from 10 TR to 150 TR. However for 30 Ton and above chillers Water Cooled range is advised.
- MX Series range of Chillers features Non-Corrosive components in both the refrigeration and fluid handling circuits. Combined with a durable supply and condenser pump.
- Complete Electrical and refrigeration protection and to ensure Precise process Fluid Temperatures a Microprocessor based Temperature Controller is standard in all MX Series range of Chillers.
- For quick and simple servicing all Wiring & Refrigeration circuits are Colour coded.
- Well-designed, easy to operate, in built Control Panel incorporating fuses, Switchgears, LED displays for Fault Detection is a standard feature in the full range of chillers.
- APPLICATIONS: Plastic Processing / Blow and Injection Molding / Pet Blow / Extruders / Aerated Water Industry/ Plating industry / Chemical industry and Alcohol manufacturing
Specifications for Chillers
| DETAILS | MX 10T AC/WC | MX 15T AC/WC | MX 20T AC/WC |
|---|---|---|---|
| Refrigeration Capacity | 10TR | 15 TR | 20TR |
| Capacity in Kcal/Hr | 27004 | 52202 | 65016 |
| Cooling Medium for refrigerant | Air/Water | Air/Water | Air/Water |
| Water Temperature at Outlet | 15°C | 15°C | 15°C |
| Water Flow rate Primary | 7500 LPH | 12000LPH | 17000 LPH |
| Water Flow rate Secondary | AS PER CLINTS REQUIREMENT | ||
| Refrigerant | R407C | R407C | R407C |
| Condenser | Air/Water | Air/Water | Air/Water |
| Condensing Temperature | 55/40°C | 55/40°C | 55/40°C |
| Evaporation Temperature | 10° C | 10° C | 10° C |
| Compressor | Copeland/ Danfoss | Copeland/ Danfoss | Copeland/ Danfoss |
| Power | 9.1 Kw | 13.8 Kw | 22.6 Kw |
| Total BHP Consumed | 12.19 BHP | 18.5 BHP | 4.45 BHP |
| Chiller Type SS | Multi Tube | Multi Tube | Multi Tube |
| Chilled Water Primary Pump | Crompton | Kirloskar | Kirloskar |
| Qty | 1 | 1 | 1 |
| HP | 1 HP | 2 HP | 2.0 HP |
| Chilled Water Secondary Pump | AS PER CLINTS REQUIREMENT | ||
| SS Tank | 120 Ltrs | 160 Ltrs | 250 Ltrs |
| Size of Unit | 75" x 47" x 60 | 76 x 48 x 61 | 100 x 60 x 70 |

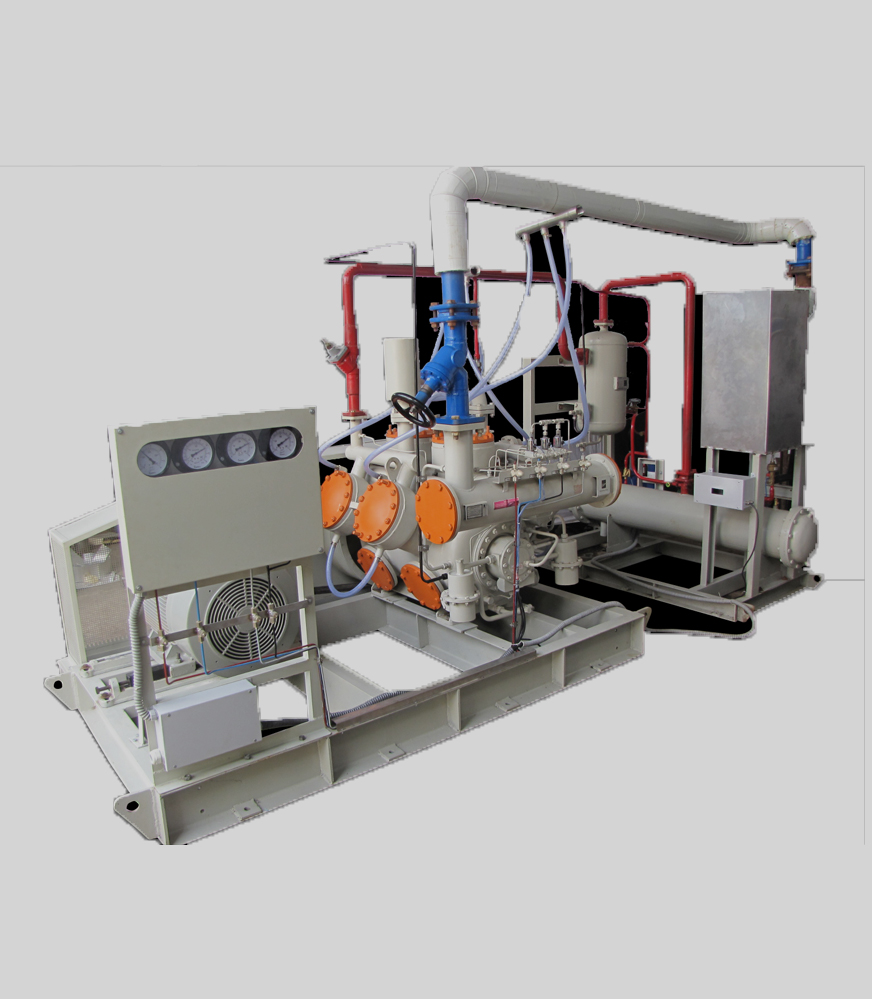

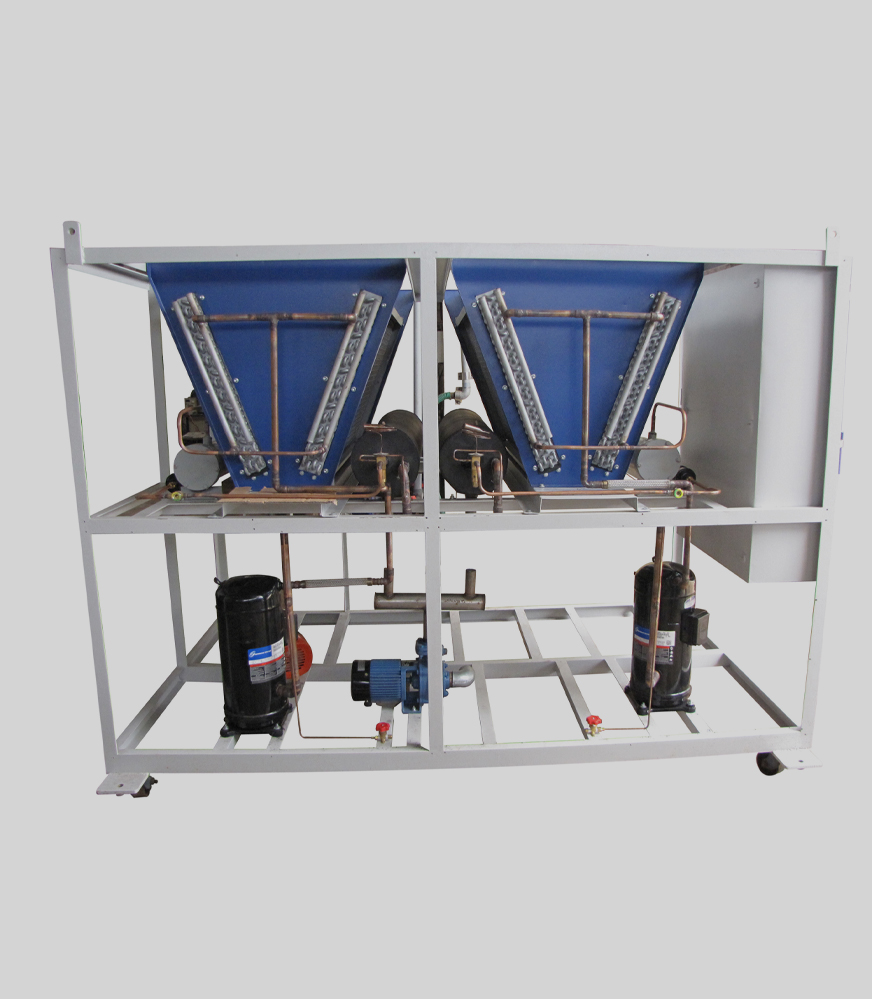

Note:The above compressor Kw are based on evaporation temperature of + 100C And 550c Condensation. The above range is available in multiples of 2 & 3 Scroll Compressors, or single Screw compressors. MX series is available as packaged chillers upto 150 TR Capacity with various types of Compressors, semi hermetic screw/ reciprocating.
