Product
Mass Flow Integrators

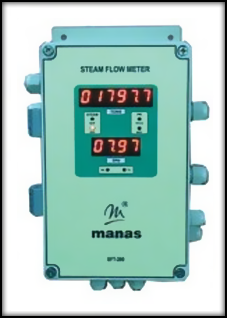

Steam flow totaliser, Series - SFT-200 (Wall /Panel Mounting)
- Suitable For Saturated & Superheated Steam.
- Three nos. of 4-20 ma dc i/p from DP / Flow transmitter, Pressure transmitter, Temperature transmitter/RTD PT-100.
- Universal power supply.
- Empty tube detection possible
- Isolated 4 – 20 mA output proportional to Flow rate.
- 4 digits LED display for flow rate & 6 digits for total flow are available.
- Linear or Square Root operation.
- Serial Interface with Computer through MODBUS RTU Protocol.
- The unit has two alarms, configured on pressure input.

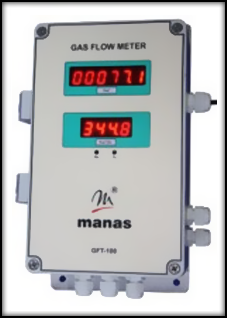

Gas flow totaliser, Series - GFT-100(Wall /Panel Mounting).
- Suitable For compressed gas & air.
- Linear or Square Root operation.
- Accuracy of ± 0.25 % of Full Scale.
- Three nos. of 4-20 ma dc i/p from DP / Flow transmitter, Pressure transmitter, Temperature transmitter/RTD PT-100.
- Universal power supply.
- Isolated 4 – 20 mA output proportional to Flow rate.
- 4 digit LED display for flow rate & 6 digit for total flow is available.
- Serial Interface with Computer through MODBUS RTU Protocol.
- Two numbers of alarms is available on instantaneous flow rate.

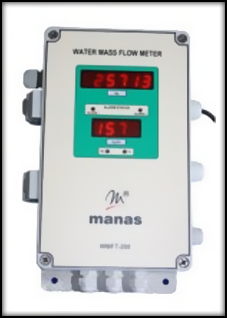

Water mass flow computing unit - WMFT-100
- Suitable For boiler feed water with density compensation.
- Online Computation For density Reducing Errors in Measurement Due To Pressure & Temperature.
- Isolated 4-20mA D.C. output proportional to Flow Rate.
- Linear or Square Root operation.
- Availability of panel & Wall mounting.
- Serial Interface with Computer through MODBUS RTU Protocol.
- Two alarm settings are available and single alarm output is available
- If Flow rate exceeds the set reference flow, the lower 4 digit Display for Flow rate blinks.
