Product
Flow Indicating Totalisers

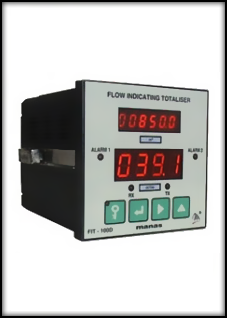

Flow Indicating Totalisers FIT-100D SERIES.
- Isolated 4-20mA D.C. output proportional to Flow Rate.
- Universal Power Supply.
- Alarm / Batching facility.
- Linear / Square root operation.
- Serial Interface with Computer through MODBUS RTU Protocol.
- Mounting: Flush panel.
- Password protection is provided for all modes.
- 6 Digit, 0.3”, 7 segment LED for Totalisation.
- 4 Digit, 0.5”, 7 segment LED for Flow Rate Indication. 16x2 line LCD option available.
- Dimensions : 92mm(H) x 92mm(W) x 150mm(D)
Flow Indicating Totalisers, FIT- 100P SERIES.
- Isolated 4-20mA D.C. output proportional to Flow Rate.
- Universal Power Supply.
- Alarm / Batching facility.
- Linear / Square root operation.
- Serial Interface with Computer through MODBUS RTU Protocol.
- Mounting: Flush panel.
- Password protection is provided for all modes.
- Available with data logging facility.
- Dimensions :138mm (H) x 68mm (W) x 185mm (D).
- Dimensions : 92mm(H) x 92mm(W) x 150mm(D)
Flow Indicating Totalisers, FIT- 200D SERIES
- Available with pulse input(0.01Hz TO 300Hz), ISOLATED.
- Isolated 4-20mA D.C. output proportional to Flow Rate.
- Universal Power Supply.
- Batching facility available.
- Serial Interface with Computer through MODBUS RTU Protocol.
- Mounting : Flush panel..
- Password protection is provided for all modes.
- Dimensions : 92mm(H) x 92mm(W) x 145mm(D).
