Product
Other Instruments

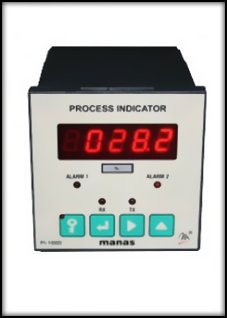

Process Indicator with alarms, PI-100D Series
- Compact in size.
- Serial interface with computers through MODBUS RTU.
- Accepts the input as 4-20mA.
- Calibration in terms of % or Engineering units.
- Accuracy is typically ± 0.1 %.
- Adjustable two Alarms setting with the various options of operation.
- Liner/Square root operation programmable.
- 4 Digit Display provided.
- Password protection for all modes.

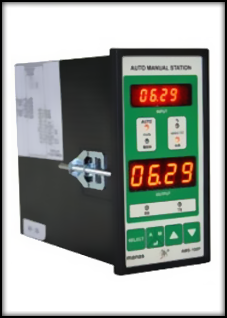

Auto Manual Station, Series - AMS-100
- Input - 4 – 20 mA dc, Output - 4 – 20 mA dc.
- Display - 4 Digit, 0.3”, 7 segment LED.
- Accuracy - ± 0.25 % of Full Scale ± 1 LSD.
- Power Supply - 85V to 265V AC, 50Hz, Single Phase.
- Mounting - Flush Panel.
- Mode Selection - Auto / Manual, Programmable Indicated by Separate LED.
- Serial communication port, RS 232/RS-485 with MODBUS RTU protocol.
- In Auto Mode, output proportional to input, no adjustment.
- Manual to Auto mode with selectable rate in percent/sec.
- AMS-100D : Polycarbonate as per DIN 43700, Dimension: 92mm (H) x 92mm (W) x 150mm (D).
- AMS-100P : ABS enclosure, Dimension: 138mm (H) x 68mm (W) x 185mm (D).

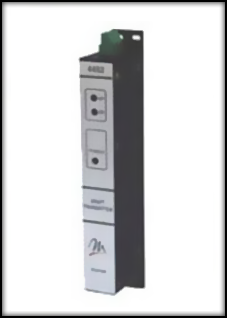

Draft Transmitter Gauge
- Input - Draft input in terms of mmWC.
- Input Connection - ¼ “BSP Female.
- Range - ±50 mmWC to ±750 mmWC.
- Output - 4 – 20 mA proportional to calibrated range.
- Accuracy - ± 2.5% maximum of F. S. including temperature drift.
- Power Supply - 12 TO 24 V dc.
- Mounting: Wall mounting.
- Enclosure - Aluminium extruded channel anodized.
- Dimensions – 200mm (H) x 25mm x 55mm (D).

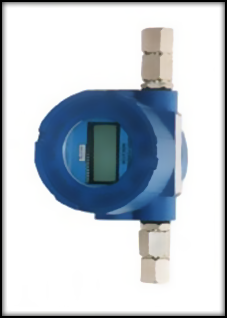

Loop Powered Indicator
- Field as well as panel mounted.
- Ex-proof housing available.
- Easy to calibrate.
- Works on 4-20 mA of input signal and no additional power required.
