Product
BTU Meters

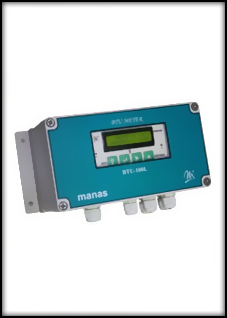

BTU meter for chiller application , SERIES : BTU-100L
- Based on calculations of thermal power & energy consumed through measurement of flow, temperature difference of inlet & outlet of the medium.
- 4-20 mA output proportional to power output.
- 16x2 LCD, 9 digits for total energy & 5 digits for instantaneous power.
- The engineering unit can be selected as either KW & KWHr or BTU/Hr & BTU.
- Communication port RS 232/485 is available with MODBUS RTU.
- Backup of totaliser on power failure in non volatile memory.
- Logging history can be viewed on the screen.
- Ingress Protection: IP65 Equivalent.

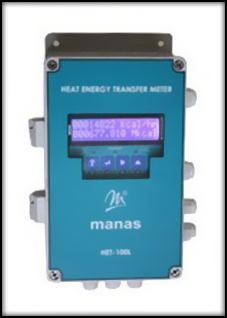

BTU Meter For heat transfer application, SERIES : HET-100L
- Suitable for Thermic fluids like HYTHERM 500, HYTHERM 600, DOWTHERM A, DOWTHERM T etc.
- Output in terms of 4-20mA which is proportional to Power obtained.
- Communication Port (supports MODBUS-RTU) & Data Logging facility.
- Password protection on all programming modes (except display mode) to avoid wrong programming by an unauthorized person.
- Display of 16 x 2 Big Characters LCD with BLUE Backlight.
- Buzzer indication for faults/Error with blinking LED (Programmable).
- Fault Conditions - Indicated by different Error Codes.
- Accuracy of ± 0.25 % of Full Scale.
- Ingress Protection: IP65 Equivalent
