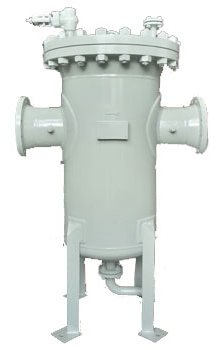

Basket Strainers

Basket Type Strainer shaped like a basket and usually installed in a vertical cylinder. This Strainer is very easy to clean, since foreign particle is captured in the basket after change over the valve without getting plant shut-down. It can also sometimes offer more straining surface area than a plate strainer, improving flow rates, or decreasing pressure loss through the strainer. Basket Type Filter elements are generally used from stainless steel (S.S. 304/316/304L/316L) for corrosion resistance & long life performance.

Technical Specifications:

• Material of construction Housing : Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
• Filter Element: Carbon steel, Stainless steel in various grades - Other materials available on request.
• End connection : Flanged (As per requested Table.), Threaded (NPT or BSP)
• Sizes: Sizes are available from 1/2" Line size to 24" Line size. Other/Higher sizes available on request
• Filtration rating : Filtration rating available from 1 micron to 1000 microns
• Pressure rating: Up to 1000 PSI. High-pressure ratings available on request
