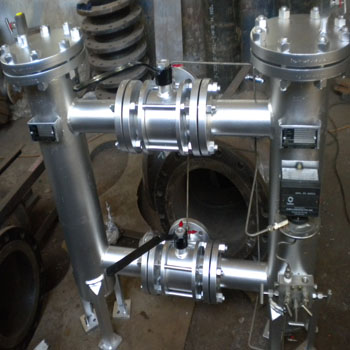

Duplex Strainers

These strainers can be fabricated to any specifications. Carbon steel and stainless steel bodies are available Flanged off line connections are std. . However inline strainers can be supplied on request. Covers are similar to simplex basket strainers these strainers have been designed to answer the specific need for continuous operation. Duplex arrangement ensures that when one strainer chokes the flow gets diverted through another strainer and the choked strainer can be cleaned and ready for use when the next strainer chokes. Free straining area is minimum 6 times pipe CS area.

Technical Specifications:

• Material of construction Housing : Carbon steel, Stainless steel in various grades, - Other materials and coatings available on request
• Filter Element : Carbon steel, Stainless steel in various grades - Other materials available on request.
• End connection : Flanged (As per requested Table.), Threaded (NPT or BSP)
• Sizes: Sizes are available from 1/2" Line size to 24" Line size. Other/Higher sizes available on request
• Filtration rating : Filtration rating available from 1 micron to 1000 microns
• Pressure rating : Up to 1000 PSI. High-pressure ratings available on request
