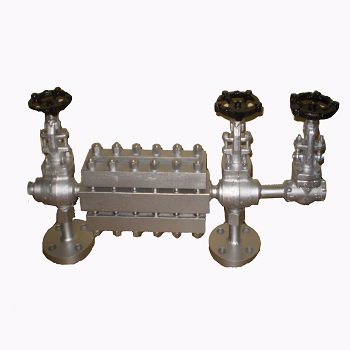

Transperant Level Gauges

Transparent Level Gauge employs two transparent glasses and a liquid chamber. The liquid level is indicated as a result of difference in the transparent properties of the two media. For water / steam applications, an illuminator is mounted on the rear side of the gauge with its light rays deflected upward into the water column. This enables the observer to see the illuminated surface of the water as the light rays impinge on the surface of separation between water and steam are reflected back to the eye of the observer.

Application :

• Saturated : Up to 1740 psig (120 bar)
• Other media : Up to 2160 psig (180 bar) at 400 degree Celsius
• Observation of surface
• Observation of color and clarity of liquid
• Observation of corrosive liquids which attack glass
