Heat Exchanger

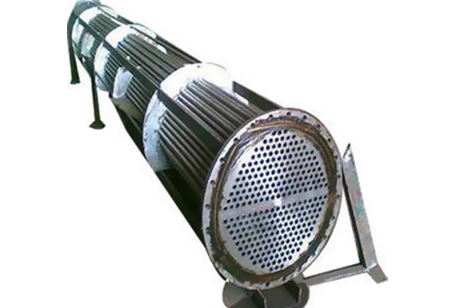

We are the manufacturer of Shell Heat Exchanger. These tube & shell heat exchanger are of superlative quality and are highly strong, durable, tensile long lasting product. Our tube & shell heat exchanger are available at competitive price range and is exported to various clients around the world.

Features:

• Efficient performance
• Premium quality
• User friendly operation

Specifications:

• Length: 0.5 meter to 20 meters
• Diameter: 0.05 meter to 2.0 meters
• Test pressure: Upto 150 Kg/Cm2G
• Materials: Copper, Admiralty Brass, Naval Brass, Copper Nickel, Carbon Steel and Stainless Steel Grades

Request Callback

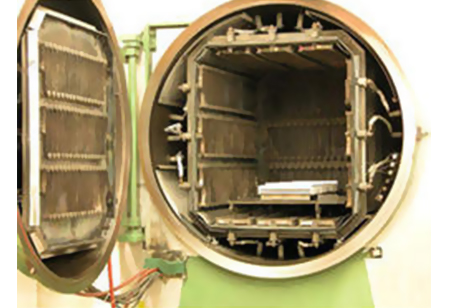

We also specialize in manufacturing and exporting technically advanced range of Vacuum Heat Exchanger. Making use of high quality raw material and advanced machines, these are manufactured in strict adherence to set industry standards. Moreover, to meet the specific needs and demands of the clients, these products are also manufactured with custom designs and specifications. Offered at industry leading prices, our range is widely demanded and acclaimed due to following attributes.

Features:

• Precision designs
• Robust construction
• Corrosion resistance
• High performance and efficiency

Specifications:

• Triangular pitch: 21 mm
• Temperature range: -40°C to 150°C
• Differential temperature: less than 120°C
• Differential pressure: less than 3 bar.g.

Request Callback

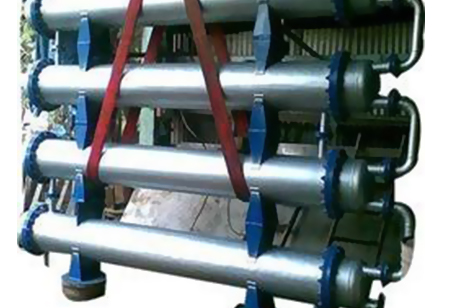

Our technical expertise enables us in providing durable and robust array of Modular Heat Exchanger, which is manufactured using quality tested raw material. Designed and developed as per industry defined parameters, these exchangers can also be customized to meet the application specific requirements of the clients. Due to their compact designs, high level efficiency, low energy costs, longer service life and a host of other attributes, these products are extensively used and acclaimed by our global clients.

Features:

• Corrosion resistant
• Dimensionally accurate
• High in performance
• Cost effective

Specifications:

• Can supply heat exchangers using NACE & HIC resistant material
• Heat Exchangers made available in Clad Tube sheets, Carbon and Alloy Steel finish cladded with Cupro Nickel, Monel, Brass
• Have facilities like SAW, GMAW, GTAW, SMAW, FCAW to match up with the industry demands
• Can deliver end solutions in different capacities up to 10000 m2 surface area
• Tube sheets available in plain and forged finish
• Tube sheet drilling done using CNC / Radial Drilling Machines up to 200 mm
• Tube Expansion done using electronic torque controller/hydraulic operations
• Testing done using hydro/pneumatic or by helium

Request Callback

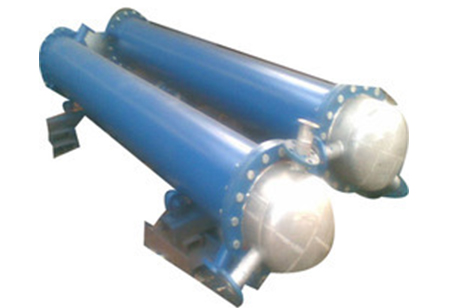

Acknowledged for their high performance, sturdy construction, low maintenance and a host of other characteristics, our range of Thermal Fluid Heat Exchanger is extensively used in multitude of industries to maintain optimum temperature in heating room. Adhering to latest industry standards, these are designed with utmost perfection using quality tested raw material and high-tech machines. Available in different sizes and designs, these exchangers are offered at cost effective prices.

Features:

• Durable
• Superb strength
• Highly reliable
• High durability

Specifications:

• Size range: 6" to 6'-0" diameter
• Capacity: Variouss
• Material: MS, SS 304, SS 316, SS 316 L
• Tube Material: M.S, S.S, and Copper Alloys
• Fin Material: CRC/G.I/S.S/Aluminum and Copper

Request Callback
