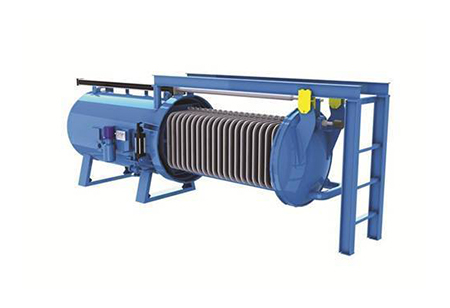

Pressure Leaf Filter

Application :

• Edible oil Industry : Bleached, winterized, deodorized, hydrogenated, fractionalized oil, dewaxing, catalyst, mineral oil.
• Beverage Industry : For glucose, fruit juice, cold drinks, sugar, vinegar.
• Chemical Industry : For organic & inorganic salts, dyes, chemicals, plasticizers, sulphur, copper.
• Pharma Industry : For pharmaceutical, intermediates, syrup, bulk drugs, antibiotics, intravenous solution.
• In Petrochemical Industry : Crude oil, LPG, lubricating oil, sulphur.

Salient Features :

• 1-100 m2 filtration area offered as per requirement.
• Stainless steel filter elements, hence no repetitive cost, washing and maintenance of filter cloth.
• Filtration rate are 2-3 times higher on same filter area.
• Automatic cake discharge with mechanical or pneumatic vibrator options & spray nozzle for wet cake discharge.
• Ideal replacement for plate & frame filter. Closed system, no maintenance due to SS filtration mesh, low retention of oil, less occupancy of space etc.
• Very low% of unfiltered liquid retention in cake.
• Simple & economical bottom opening with 100% opening & optional butterfly valve for vertical PLF
• Closed pressurized operating system hence no spillage & loss of liquid, which helps in handling volatile / inflammable liquids & clean working environment. Entire filtration cycle with cake discharge can be completed without even opening the filter from top.
• Compact & light hence large saving in floor area & supporting structures.
• Pressure leaf filter can be completely automated with no human intervention.
• Can be used for getting filtered liquids as well as cake.
• Ideal for filtration of edible / non-edible oil, dewaxing, sulphur, copper, API chemicals, Carbon removable, etc.
• Closed system, no maintenance due to SS filtration mesh, low retention of oil, less occupancy of space etc.

Technical Specification:

Vessel M.O.C	Carbon steel(M.S.), Optionally stainless steel (304, 316, 316L)
Leaves M.O.C	Outer mesh of SS- 316 and inner mesh, frame, bush and handle etc of SS-304, optionally complete SS- 316
Max. Working Pressure	5 kg / cm² ( Bar)
Max Working Temperature	120°C with Neoprene gasket and optionally 200° C with Viton / Silicone Gasket

Request Callback

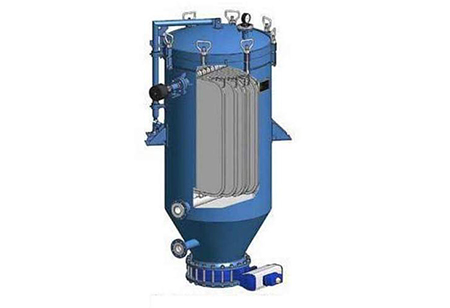

We are known to provide the wide range of Vertical Pressure Leaf Filters.

Specifications:

Model No.	Filter area m2	No. Of. Leaves	Max. Wet Cake Vol./Ltrs.	Height mm	Floor Area Occupied mm x mm	Net. Tank Vol. Ltrs.
V1	1	5	25	1300	710 x710	150
V2.5	2.5	5	62.5	1550	760 x 760	375
V5	5	5	125	2500	1050 x 1050	580
V7.5	7.5	7	187.5	2600	1160 x 1160	800
V10	10	9	250	2600	1200 x 1200	950
V15	15	11	375	2600	1450 x 1450	1330
V20	20	11	500	2800	1650 x 1650	1210
V25	25	15	625	2800	1650 x 1650	1990
V35	35	15	750	3000	1800 x 1800	2740
V40	40	17	1000	3100	2000 x 2000	3600
