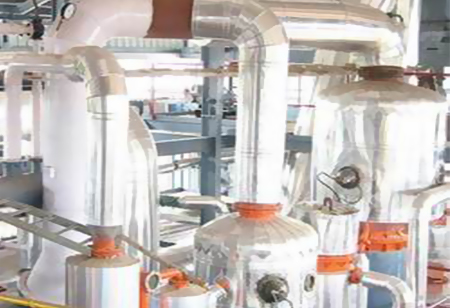

Solvent Extraction Plant

We are the manufacturer of Solvent Extraction Plant. Our solvent extraction plant are specially manufactured and designed by the team extremely qualified personnel under robust infrastructure. These solvent extraction plants are highly appreciated by the prestigious clients.

Features:

• Sturdiness
• Easy to install
• Long functional life

Specifications:

• Crushing Capacity: 3 tons oil seeds in 24 hours.
• Output: 1000 Liters pure, filtered, natural cooking oil.
• Man power: 2 persons can operate entire plant.
• Diesel Consumption: 1.5 Liters per hour.
• Shipment volume: 6 cubic meter (Approx.)
• Weight of machinery: 2 tones (Approx)
• Electricity: Electricity not required

Request Callback

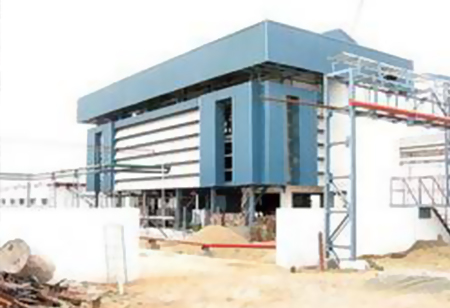

We manufacture and export Vegetable Oil Solvent Extraction Plant. These solvent extraction plant are best in quality and is highly demanded in the market.In this, Provision of special cooling system to help to produce final oil at 10-15°C. New vent vapor recovery system help in better recovery of solvent from vent vapors.

Features:

• High performance
• High efficiency
• Less power consumption

Other Details:

• The suction load data of each steam jet ejector is precisely calculated which ensures lowest possible consumption of steam, thus reduction in recurring expenses along with reduction in heat load on condensation system.
• Distillation is carried out in three stages of vacuum. There by achieving incremental concentration of miscella at predetermined rate. Further more each stage is differentiated by incorporation of precisely designed U type siphon pipe, eliminating the use of centrifugal pump. This ensures continuous flow of miscella, & reduces power consumption.
• Economizer is specially designed having built in flasher, which provides the compact design, Minimum plant space and reduction in unwanted piping. This design itself provides the high efficiency flashing which increase the miscella concentration up to 75%
• The final stage striping is carried out in presence of steam under higher vacuum of 700 mmHg. This allows the lower temperature distillation and they're by ensuring undamaged crude oil without color fixation.

Specifications:

• Man power: 2 persons can operate entire plant
• Crushing Capacity: 3 tons oil seeds in 24 hours
• Weight of machinery: 2 tones
• Electricity: Electricity not required
