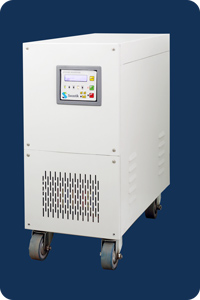

Three Phase Inverter (Balance)

  • Balance output :
    Suitable for balanced 3 phase load. (no Need of unbalance 3 phase inverter which is more expensive)

  • IGBT based inverter:
    Rugged design, can deliver 5 times peak output current, suitable for lifts with A/C drive

  • IGBT based SMPS battery charger :
    Wide input voltage range Low ripple dc charging current Less heating of batteries so battery life improves

  • Automatic changeover :
    No attendant required
  • Rating:
    6 KVA TO 30 KVA

  • AC input:
    415V + 15%, -20% Three Phase 4 Wire

  • Frequency:
    50Hz + 6%

  • DC VOLTAGE:
    72VDC TO 360VDC

  • Charging time:
    15 Hours for 90% of full capacity

  • Charger type:
    SMPS charger (IGBT Based)
  • Technology:
    IGBT, High Frequency PWM

  • Output voltage:
    400V / 415V AC three phase

  • Voltage regulation:
    +2% for DC I/P Variation & O/P Load Variation

  • Frequency:
    50Hz + 1%

  • Waveform:
    Pure sine Wave

  • Harmonic Distortion:
    Less Than 3%

  • Inverter Efficiency:
    >90% for 360 VDC, >85% for 180 VDC

  • Power Factor:
    0.8

  • Over Load:
    105% Continuously, 500% for 2 Sec.

  • Allowed Imbalance:
    10%

  • Crest Factor:
    4:1

  • Transient Response:
    + 4% under full load change & corrected within 60 msec

  • Phase displacement:
    120º + 1º

  • Audible Noise:
    Less Than 45db at 1 meter

Output overload & short circuit, Output Under & Over voltage, DC Under & Over Voltage input under & over voltage, single phasing & phase unbalance.

  • Mains on :
    LED Indication

  • Inverter on:
    LED Indication

  • Battery Low:
    LED Indication & alarm

  • Input Under Voltage:
    Mains LED slow blinking

  • Input Over Voltage:
    Mains LED fast blinking

  • Output Over load:
    LED Indication & alarm

    • Plus LCD display for Input Voltage, Output Voltage, Output Current, Battery Voltage & Battery Charging Current.

  • Elector Mechanical – (switch Contractor):
    Provided as standard feature

  • Static Switch:
    BI – Directional (Optional )

  • Input: MCB Provided
  • Output: Switch , MCB(Optional)
  • Battery: Fuse Link, MCB (Optional)
  • Motor 3.5 Kw* (5 H.P.)
    • 6Kva 72V : 1
    • 10Kva 120V :1 + Lightening Load
    • 12Kva 144V : 0-2
    • 20Kva 240V : 0-3
    • 25Kva 300V : 0-4
    • 30Kva 360 : 0-5
  • Motor 5 Kw*(7.5 H.P.)
    • 10Kva 120V : 1
    • 12Kva 144V : 1 + Lightening Load
    • 20Kva 240V : 2-0
    • 25Kva 300V : 0-2 + Lightening Load
    • 30Kva 360 : 3-0
