Real Time Power Factor Correction Controllers ( RTPFC )

Real Time Power Factor Correction Controllers (RTPFC) offers a complete solution for Automatic Power Factor Correction employing thyristor based switching of capacitors.
RTPFC ensures Quick Response Time (of a few electrical cycles) enabling Real time Power factor correction in critical industrial conditions. It reduces Transmission Distribution (TD) losses, minimises Peak or Maximum Demand (MD) in power consumption and maintains power factor close to unity (1.00).

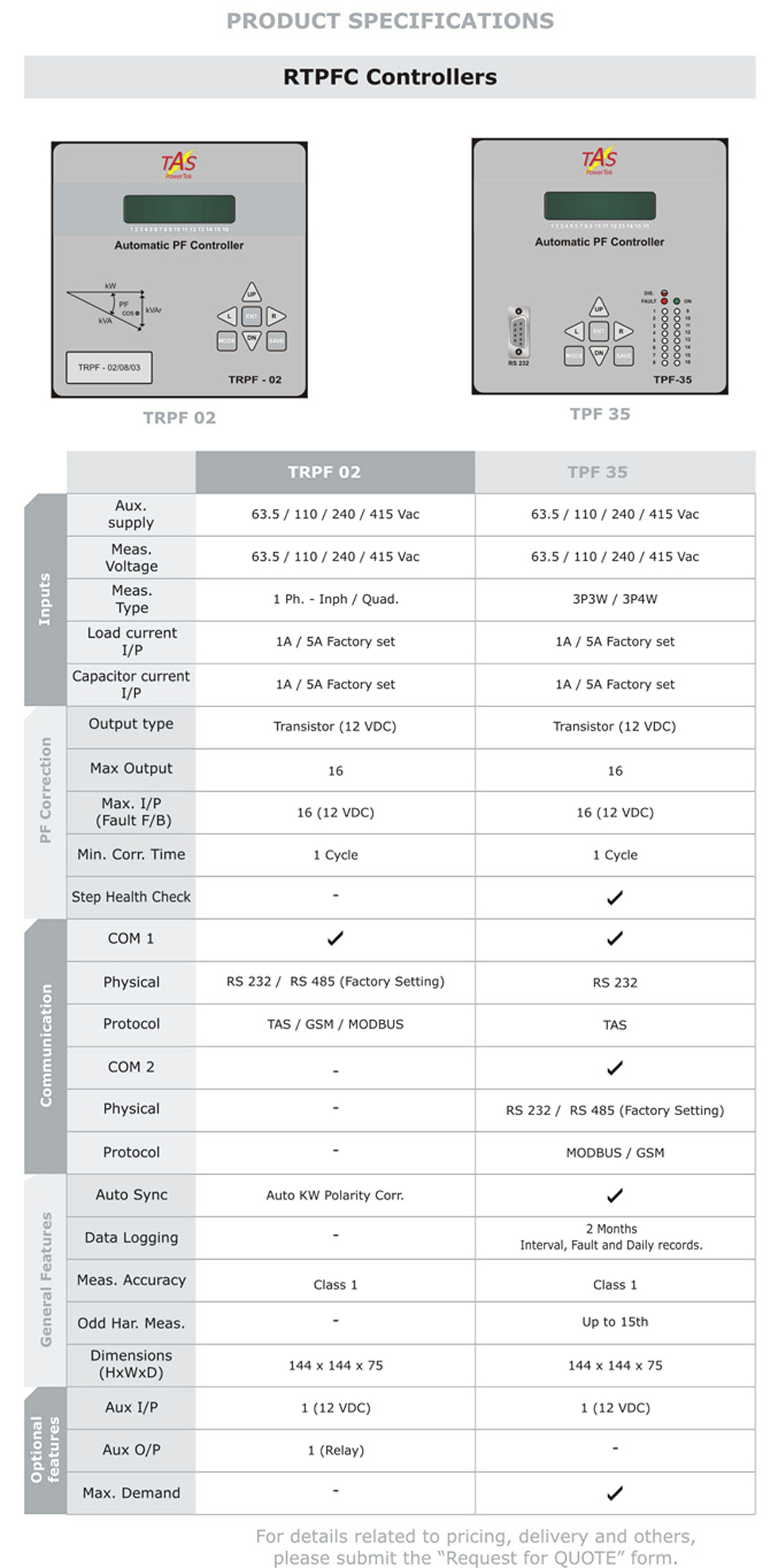

Models offered are: TRPF 02 (Single Phase Sensing) and TPF 35 (Three Phase Sensing).

Salient Features :
TRPF 02 (Single Phase sensing)
TPF 35 (Three Phase sensing)

• Suitable for thyristorised high-speed capacitor switched panel.
• Microcontroller based DSP logic for measurements.
• All measurements with Class 1 accuracy.
• Input sensing either through line-to-line voltage with a CT or individual phase with a CT.
• Programable external PT ratio for HT sensing.
• Auto-synchronization capable of detecting wrong connections at CT terminals, even wrong CT polarity (Only in TPF 35) .
• Voltage, Load I, Cap I THD measurement with odd harmonic coefficient upto 15th harmonic (Only in TPF 35) .
• Various modes of Programming step kvar; Unequal, Binary, C-series, E-series.
• Fault feedback from individual thyristor switches.
• Protections provided:- Over/Under voltage, Over/Under Load, Over/Under Cap. Current/THD, Load Unbalance, Over Temperature, Out-of-Steps indication.
• Software interface provided for data monitoring and data logging.
