High Tension Power Factor Controllers ( HTPFC )

Our High Tension Power Factor Controllers (HTPFC) are ideal for High Tension Power factor correction requirements. HTPFC's are developed for very high measurement power value. The working cycles can be set in minutes, enabling power monitoring over a large duration of time.
HTPFC's are ideal for large establishments which directly derive power from HT lines.

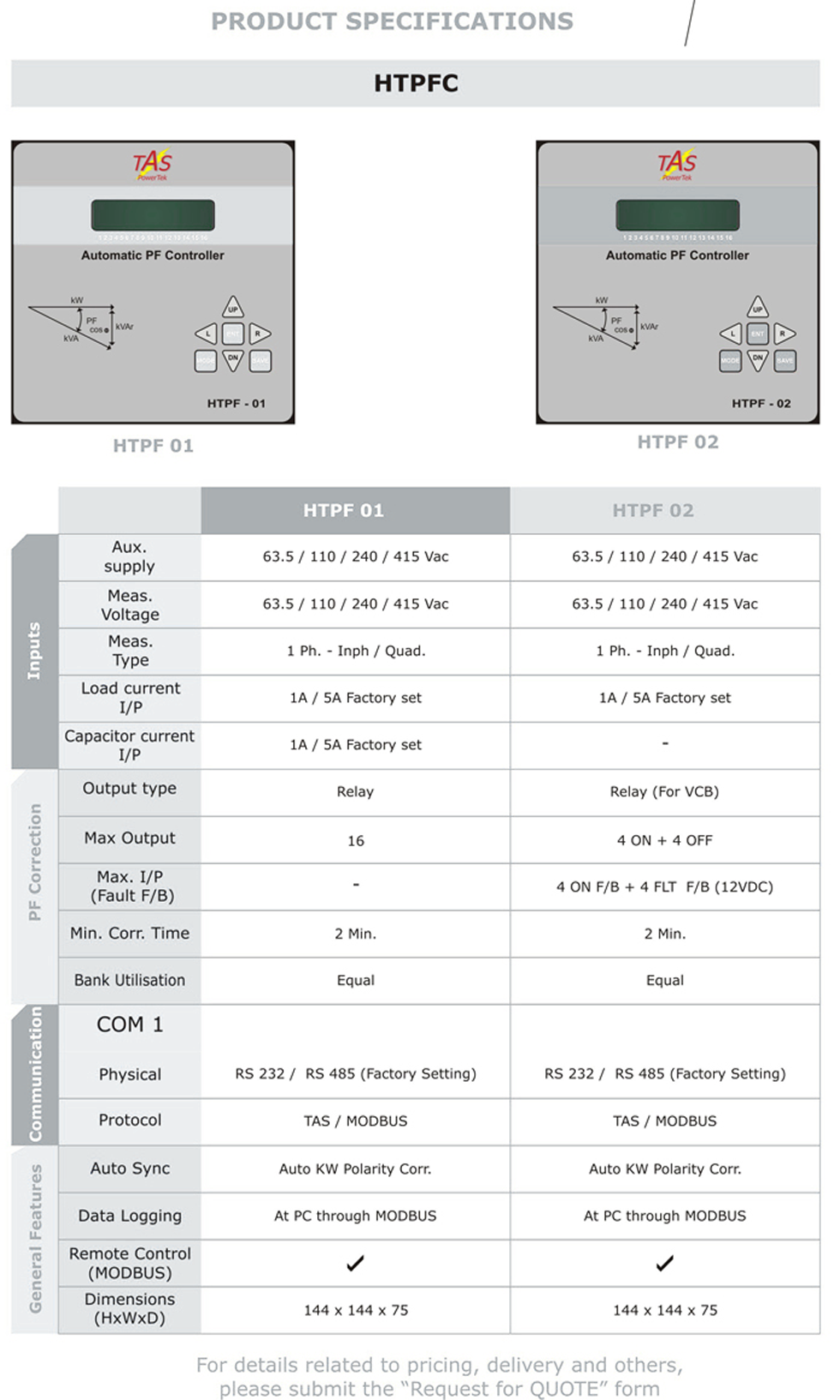

Models offered are: HTPF 01 & 02

Salient Features :
HTPF 01/02 ( Single Phase sensing )
• Microcontroller based DSP logic for measurements.
• All measurements with Class 1 accuracy.
• Suitable for HT measurement and HT capacitor switching.
• Suitable for Vaccum Circuit Breaker switching (HTPF 02).
• Turn-on feedback / Fault feedback from individual VCB (HTPF 02).
• Input sensing either through line-to-line voltage with a CT or individual phase with a CT. Programmable external PT ratio for HT sensing.
• Voltage, Load I, Cap I THD measurement provided.
• Protections provided:- Under Voltage, Out-of-Steps indication.
• Remote control through MODBUS.
• Data logging at PC through MODBUS connectivity.
