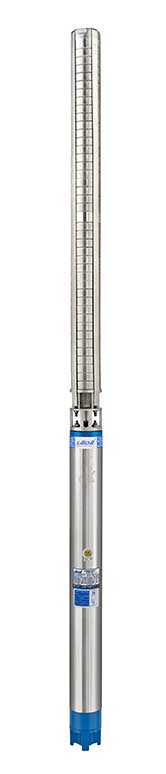

Salient Features
- Easy for Installation with HDPE/UPVC/GI Pipe.
- Tiffin Box Pump Design.
- Copper Rotor Design.
- SS Impeller & SS Bowl in Fabrication design.
- Motor OD for V5: 122 mm.
- 6 HP & 7.5 HP models have 5” Motor.
- V5 motor provides better stability to the pump when installed at high depths thus increasing the life of the pump.
Applications
- Agriculture & Irrigation Purpose.
- Drip & Sprinkler Systems.
Technical Specifications
- Power Rating Range: 6 HP to 7.5 HP
- Head Range in Meters: 66 Meters to 300 Meters
- Discharge Range in LPM: 125 LPM to 50 LPM
- Working Voltage Range: 240 Volts to 440 Volts
- Frequency: 50 Hz
- Type of Duty: S1
