Salient Features

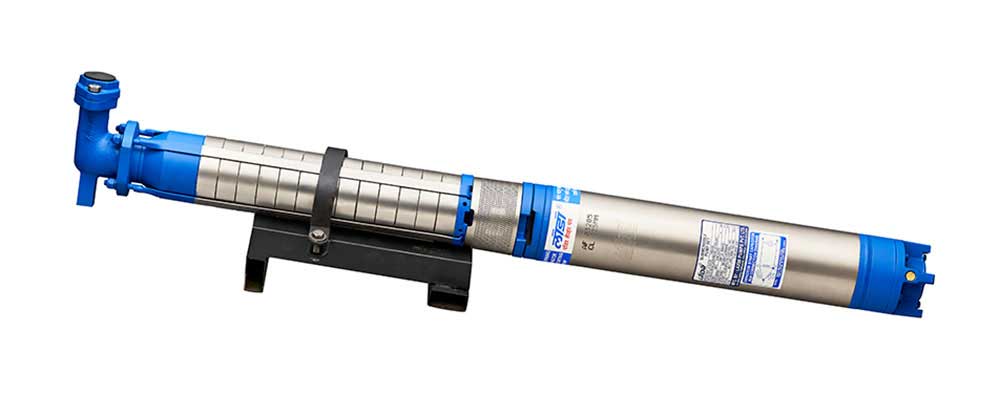

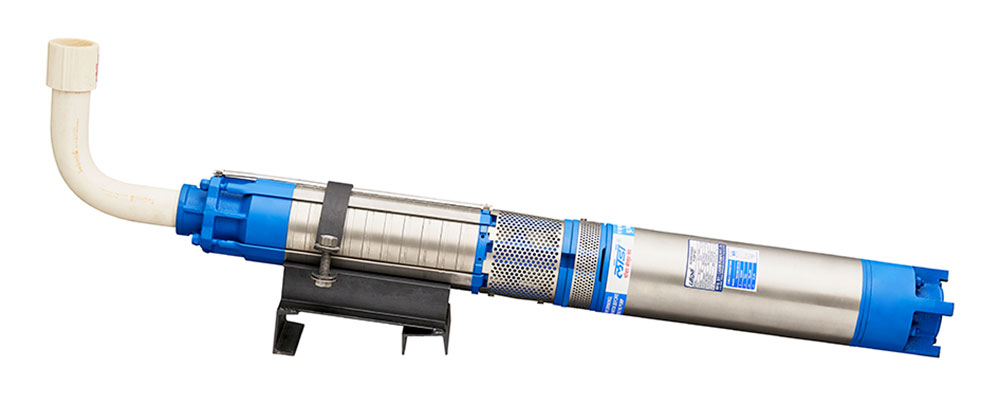

- All V4 and V6 submersible pumps available in AC solar range.
- V4 Motor Diameter: 96 mm.
- V6 Motor Diameter: 142 mm.
- Can work vertically as well as horizontally (Not completely flat but with some angle).
- Water Filled Motors.
- Rugged Construction and Long Life.
Applications
- Agriculture & Irrigation.
- Residential.
- Commercial.
- Multistorey Buildings.
Technical Specifications of V4
- Power Rating Range: 0.5 HP to 5 HP
- Head Range in Meters: 9 Meters to 350 Meters
- Discharge Range in LPM: 370 LPM to 10 LPM
- Working Voltage Range: 160 Volts to 240 Volts
- Hz: 50 Hz
- Type of Duty: S1
Technical Specifications of V6 (Three Phase)
- Power Rating Range: 3 HP to 30 HP
- Head Range in Meters: 12 Meters to 360 Meters
- Discharge Range in LPM: 1300 LPM to 30 LPM
- Working Voltage Range: 240 Volts to 440 Volts
- Hz: 50 Hz
- Type of Duty: S1
Technical Specifications of V8 (Three Phase)
- Power Rating Range: 12.5 HP to 40 HP
- Head Range in Meters: 16 Meters to 221 Meters
- Discharge Range in LPM: 2300 LPM to 350 LPM.
- Working Voltage Range: 300 Volts to 440 Volts.
- Hz: 50 Hz
- Type of Duty: S1
