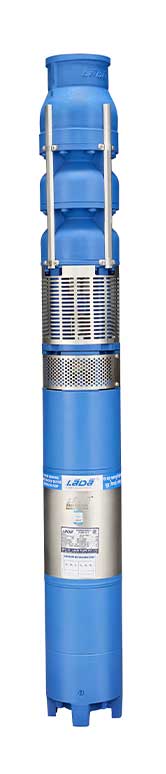

V8 Mix Flow

Salient Features

• The motors are designed to start at low voltage & working in a wide voltage fluctuation.
• Well-designed sleeve and tilting thrust bearings for longer life.
• Stator & Rotor are vacuum impregnated and coated properly with epoxy paint to ensure Corrosion resistance & reduce eddy current losses.
• Copper Rotor Design.
• Motor OD is 196 mm.
• High operating efficiencies of pump set results into high water discharge rate and Lower power consumption.
• Rotors are dynamically balanced to ensure long bearing life and vibration free smooth operation.
• Less power consumption & operating cost due to high pump efficiency.
• Pumps are provided with a reliable non-return valve to reduce water hammer & Friction losses.
Can be installed & operated horizontally and also vertically.

Applications

• Agriculture & Irrigation schemes.
• Village water supply schemes.
• Community water Supply.

Technical Specifications Single Phase

• Power Rating Range: 12.5 HP to 40 HP.
• Head Range in Meters: 16 Meters to 221 Meters
• Discharge Range in LPM: 2300 LPM to 350 LPM.
• Working Voltage Range: 300 Volts to 440 Volts.
