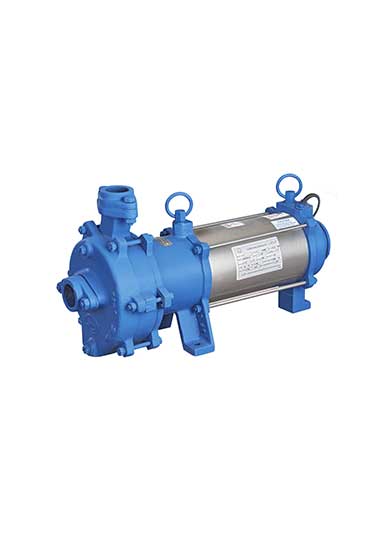

Salient Features
- Carbon/ Stainless Steel thrust bearings on both the sides.
- Stainless steel shaft to prevent rusting.
- Wet type winding with polyester wrapped winding wire & Copper rotor.
- Models with wide range of discharge and head combination.
- Compact in size and easy to install in an open well.
- Available in single phase & three phase.
- 3 Phase models from 12.5 HP & above should ideally have starting voltage of 300 V
Applications
- Sprinklers & Drip irrigation.
- Commercial sites.
- High rise buildings.
Technical Specifications Single Phase
- Power Rating Range: 1 HP to 10 HP
- Head Range in Meters: 12 Meters to 76 Meters
- Discharge Range in LPM: 475 LPM to 15 LPM
- Working Voltage Range: Single Phase : 160 Volts to 240 Volts and Three Phase : 240 Volts to 440 Volts
- Insulation: E Class
- Max Liquid Temp: 35 degree Celsius
Material of Construction
- Impeller: CCI FG 200/Noryl
- Delivery Casing: CI FG 200
- Shaft: AISI-410
- Motor Body: CI FG 200 / Stainless Steel / MS
- Mechanical Seal: C+CER+BUNA N
- Rotor: Aluminum / Copper
