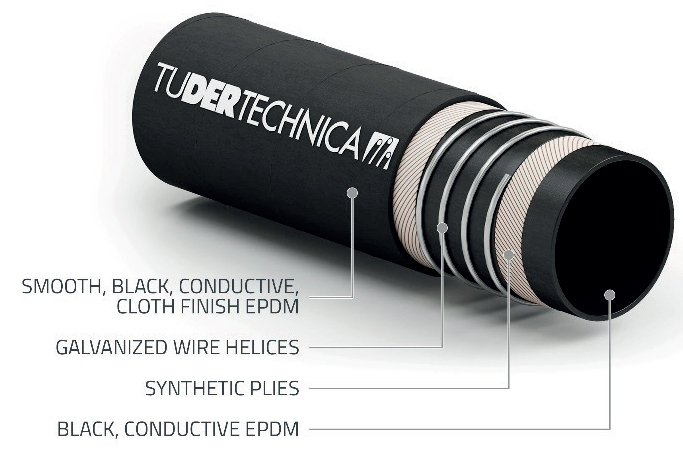

Tuchem EPDM

Suction and delivery hose designed according to EN 12115 standards for chemical products. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).

DESCRIPTION

Tube : EPDM, black, conductive
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : lilac tape TUDERTECHNICA TUCHEM® EPDM embossed according to norm EN 12115 TUDERTECHNICA EPDM EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R< 109 Ω through the hose wall)
Norm : EN12115 - TRbF 131/2

[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,66	0,44	65	2,56
25	1,00	37	1,46	0,9	13	16	250	64	1000	0,81	0,54	90	3,54
32	1,25	44	1,73	0,9	13	16	250	64	1000	0,99	0,66	120	4,72
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,30	0,87	155	6,10
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,13	1,43	215	8,46
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,16	1,45	215	8,46
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	2,86	1,92	275	10,83
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,41	2,28	330	12,99
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,45	2,31	330	12,99
100	3,94	116	4,57	0,9	13	12	185	48	750	4,41	2,95	450	17,72
102	4,00	118	4,65	0,9	13	12	185	48	750	4,46	2,99	450	17,72

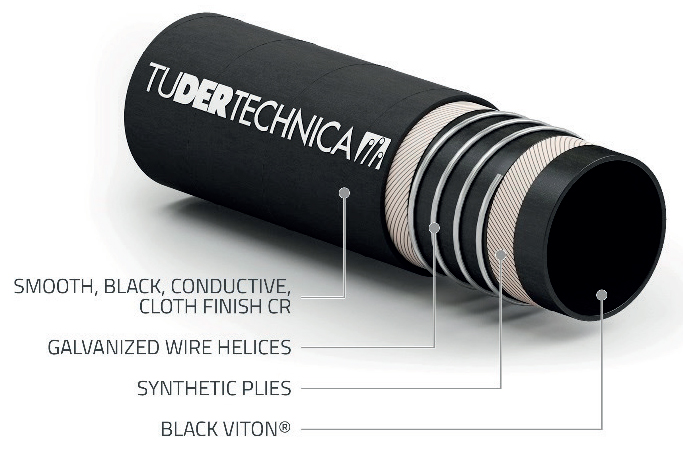

Tuchem Viton

Suction and delivery hose designed according to EN 12115 standards for hot oils, chemical and petrol-chemical products.

DESCRIPTION

Tube : Viton®, black
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : smooth, CR, black, conductive, abrasion, ageing, ozone and oil resistant, cloth finish
Marking : white/green tape TUDERTECHNICA TUCHEM® VITON® embossed according to norm EN 12115 TUDERTECHNICA FKM EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +120°C ( -13°F / +248°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,81	0,54	125	4,92
25	1,00	37	1,46	0,9	13	16	250	64	1000	1,01	0,68	150	5,91
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,19	0,80	175	6,89
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,48	0,99	225	8,86
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	275	10,83
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	275	10,83
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,32	2,22	350	13,78
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,83	2,57	400	15,75
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,87	2,59	400	15,75
100	3,94	116	4,57	0,9	13	12	185	48	750	5,01	3,36	550	21,65
102	4,00	118	4,65	0,9	13	12	185	48	750	5,05	3,38	550	21,65

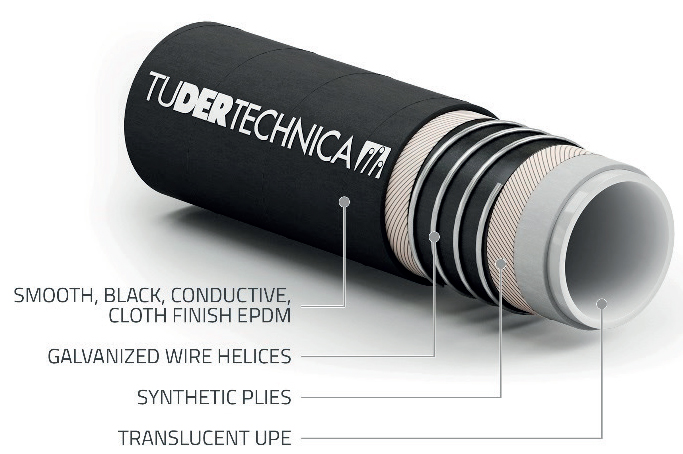

Tuchem UPE

Suction and Suction and delivery hose designed according to EN 12115 standards for chemical products.

DESCRIPTION

Tube : UPE, translucent. Phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,75	0,50	115	4,53
25	1,00	37	1,46	0,9	13	16	250	64	1000	0,92	0,62	155	6,10
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,10	0,74	200	7,87
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,39	0,93	240	9,45
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	330	12,99
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	330	12,99
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,09	2,07	415	16,34
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,58	2,40	500	19,69
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,62	2,42	500	19,69
100	3,94	116	4,57	0,9	13	12	185	48	750	4,63	3,10	675	26,57
102	4,00	118	4,65	0,9	13	12	185	48	750	4,67	3,13	675	26,57

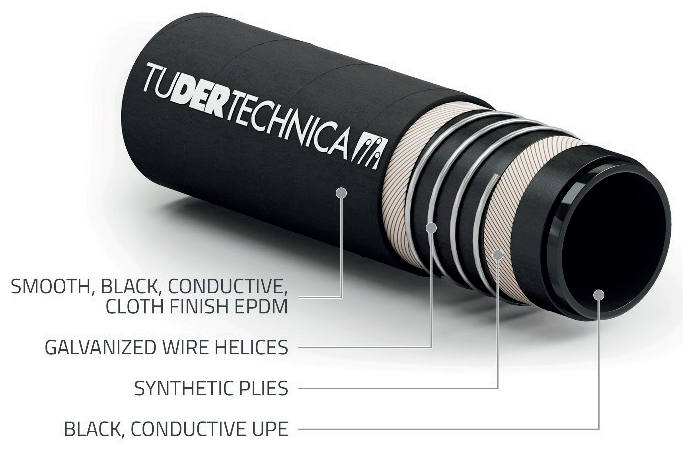

Tuchem UPE Full Conductive

Suction and delivery hose designed according to EN 12115 standards for chemical products. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).

DESCRIPTION

Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω/T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,75	0,50	115	4,53
25	1,00	37	1,46	0,9	13	16	250	64	1000	0,92	0,62	155	6,10
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,10	0,74	200	7,87
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,39	0,93	240	9,45
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	330	12,99
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	330	12,99
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,09	2,07	415	16,34
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,58	2,40	500	19,69
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,62	2,42	500	19,69
100	3,94	116	4,57	0,9	13	12	185	48	750	4,63	3,10	675	26,57
102	4,00	118	4,65	0,9	13	12	185	48	750	4,67	3,13	675	26,57

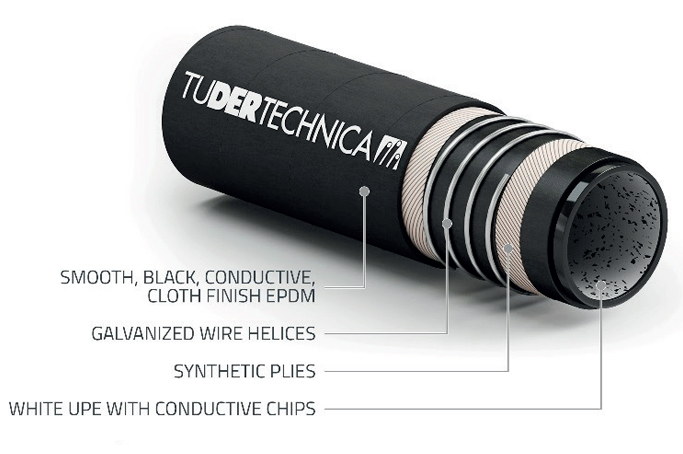

Tuchem UPE Chips Full Conductive

Suction and delivery hose designed according to EN 12115 standards for chemical products.

DESCRIPTION

Tube : UPE, white with conductive chips, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
Reinforcement : synthetic plies, galvanized wire helices, a/s wire to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE CHIPS FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	16	250	64	1000	0,75	0,50	115	4,53
25	1,00	37	1,46	0,9	13	16	250	64	1000	0,92	0,62	155	6,10
32	1,25	44	1,73	0,9	13	16	250	64	1000	1,10	0,74	200	7,87
38	1,50	51	2,00	0,9	13	16	250	64	1000	1,39	0,93	240	9,45
50	1,97	66	2,60	0,9	13	16	250	64	1000	2,30	1,54	330	12,99
51	2,00	67	2,64	0,9	13	16	250	64	1000	2,33	1,56	330	12,99
63,5	2,50	79,5	3,13	0,9	13	16	250	64	1000	3,09	2,07	415	16,34
75	2,95	91	3,58	0,9	13	16	250	64	1000	3,58	2,40	500	19,69
76	3,00	92	3,62	0,9	13	16	250	64	1000	3,62	2,42	500	19,69
100	3,94	116	4,57	0,9	13	12	185	48	750	4,63	3,10	675	26,57
102	4,00	118	4,65	0,9	13	12	185	48	750	4,67	3,13	675	26,57

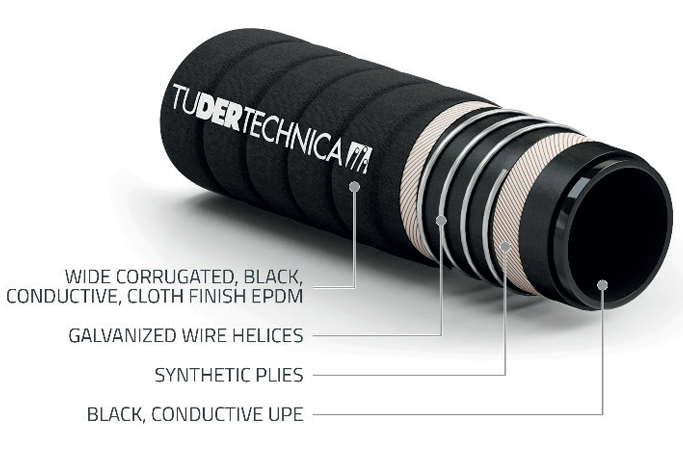

Tuchem UPE Full Conductive Form

Suction and delivery hose designed according to EN 12115 standards for chemical products.

DESCRIPTION

Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
Norm : EN12115 - TRbF 131/2

Inside diameter

Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,9	13	10	150	40	600	0,71	0,48	95	3,74
32	1,25	44	1,73	0,9	13	10	150	40	600	0,87	0,58	115	4,53
38	1,50	51	2,00	0,9	13	10	150	40	600	1,11	0,74	140	5,51
50	1,97	66	2,60	0,9	13	10	150	40	600	1,84	1,23	190	7,48
51	2,00	67	2,64	0,9	13	10	150	40	600	1,87	1,26	190	7,48
63,5	2,50	79,5	3,13	0,9	13	10	150	40	600	2,34	1,57	245	9,65
75	2,95	91	3,58	0,9	13	10	150	40	600	2,77	1,86	330	12,99
76	3,00	92	3,62	0,9	13	10	150	40	600	2,80	1,88	330	12,99
100	3,94	116	4,57	0,9	13	10	150	40	600	3,48	2,34	475	18,70
102	4,00	118	4,65	0,9	13	10	150	40	600	3,54	2,38	475	18,70

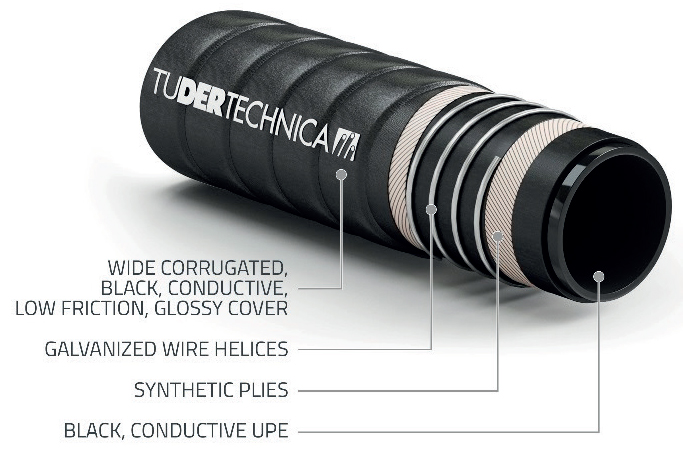

Glidetech UPE Full Conductive

Suction and delivery hose designed according to EN 12115 standards for chemical products.

DESCRIPTION

Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : wide corrugated, black, conductive, low friction material, non-marking when dragged on the floor, abrasion, ozone, ageing, oil and chemical resistant, easy to clean, glossy cover
Marking : white/blue tape TUDERTECHNICA GLIDETECH® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : : type Ω/T according to norm EN 12115 (R<106 Ω, R&109 Ω through the hose wall)
Norm : EN12115

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	37	1,46	0,9	13	10	150	40	600	0,71	0,48	100	3,94
32	1,25	44	1,73	0,9	13	10	150	40	600	0,87	0,58	125	4,92
38	1,50	51	2,00	0,9	13	10	150	40	600	1,11	0,74	150	5,91
50	1,97	66	2,60	0,9	13	10	150	40	600	1,87	1,25	200	7,87
51	2,00	67	2,64	0,9	13	10	150	40	600	1,90	1,27	200	7,87
63,5	2,50	79,5	3,13	0,9	13	10	150	40	600	2,34	1,57	260	10,24
75	2,95	91	3,58	0,9	13	10	150	40	600	2,72	1,82	350	13,78
76	3,00	92	3,62	0,9	13	10	150	40	600	2,75	1,84	350	13,78
100	3,94	116	4,57	0,9	13	10	150	40	600	3,86	2,59	500	19,69
102	4,00	118	4,65	0,9	13	10	150	40	600	3,89	2,61	500	19,69

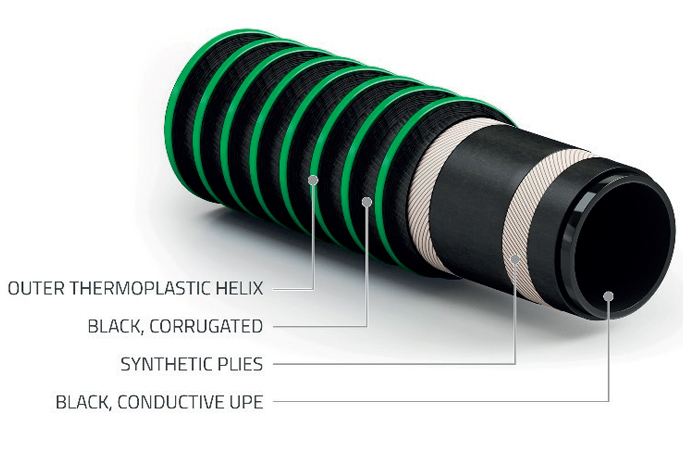

Spiraltech UPE Conductive

Light and flexible lorry collecting hose suitable for chemical products.

DESCRIPTION

Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
Reinforcement : synthetic plies, a/s copper wire to discharge static electricity
Cover : corrugated, black, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,05	0,70	85	3,35
51	2,00	-	-	0,9	13	10	150	30	450	1,45	0,97	120	4,72
63,5	2,50	-	-	0,8	11,5	10	150	30	450	1,75	1,17	155	6,10
76	3,00	-	-	0,8	11,5	10	150	30	450	2,06	1,38	190	7,48
102	4,00	-	-	0,7	10	10	150	30	450	2,69	1,80	260	10,24

GPS Evolution

Suction and delivery hose designed for chemical products.

DESCRIPTION

Tube : UPE, translucent. Phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
Cover : smooth, green, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA GPS EVOLUTION

TECHNICAL CHARACTERISTICS

Temperature range : -30°C / +90°C ( -22°F / +194°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter [in]

Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]
19	0,75	30	1,18	0,9	13	10	150	30	450	0,62	0,42	115	4,53
25	1,00	36	1,42	0,9	13	10	150	30	450	0,77	0,52	150	5,91
32	1,25	45	1,77	0,9	13	10	150	30	450	1,04	0,70	180	7,09
38	1,50	51	2,01	0,9	13	10	150	30	450	1,33	0,89	220	8,66
51	2,00	65	2,56	0,9	13	10	150	30	450	1,90	1,27	280	11,02
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,50	1,68	360	14,17
76	3,00	91	3,58	0,9	13	10	150	30	450	3,02	2,02	420	16,54
102	4,00	119	4,69	0,9	13	10	150	30	450	4,61	3,09	600	23,62

Fluoropolymer Hoses

Tuchem EPDM

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tuchem Viton

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tuchem UPE

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tuchem UPE Full Conductive

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tuchem UPE Chips Full Conductive

DESCRIPTION

TECHNICAL CHARACTERISTICS

Tuchem UPE Full Conductive Form

DESCRIPTION

TECHNICAL CHARACTERISTICS

Glidetech UPE Full Conductive

DESCRIPTION

TECHNICAL CHARACTERISTICS

Spiraltech UPE Conductive

DESCRIPTION

TECHNICAL CHARACTERISTICS

GPS Evolution

DESCRIPTION

TECHNICAL CHARACTERISTICS

Catalogue

Valves

Hoses

Our Address
