Dry Food Hoses

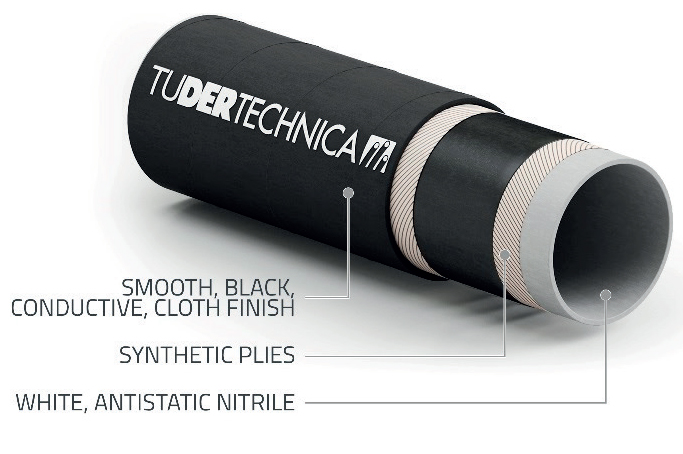

Dryfood Antistatic D

Delivery hose suitable for powdery and granular dry food products.

DESCRIPTION

Tube : NBR, white, antistatic (R<109 Ω/m), phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 4, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
Reinforcement : synthetic plies, on request a/s copper wires to discharge static electricity
Cover : smooth, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA DRYFOOD ANTISTATIC

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
51	2,00	66	2,60	6	90	18	270	1,82	1,22	-	-
76	3,00	94	3,70	6	90	18	270	3,22	2,16	-	-
102	4,00	124	4,88	6	90	18	270	5,06	3,39	-	-
127	5,00	151	5,94	6	90	18	270	7,13	4,78	-	-
152	6,00	176	6,93	6	90	18	270	8,43	5,65	-	-

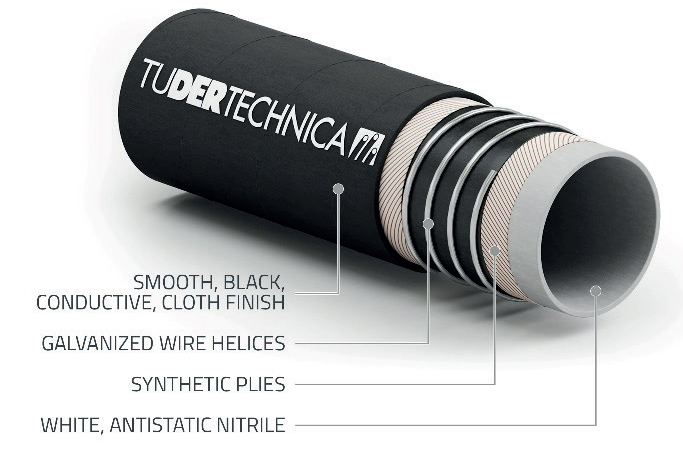

Dryfood Antistatic

Suction and delivery hose suitable for powdery and granular dry food products.

DESCRIPTION

Tube : NBR, white, antistatic (R<109 Ω/m), phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 4, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
Reinforcement : synthetic plies, galvanized wire helices, on request a/s copper wires to discharge static electricity
Cover : smooth, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA DRYFOOD ANTISTATIC

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
51	2,00	66	2,60	0,9	13	6	90	18	270	1,93	1,29	300	11,81
76	3,00	92	3,62	0,9	13	6	90	18	270	3,25	2,18	450	17,72
102	4,00	118	4,65	0,9	13	6	90	18	270	4,47	2,99	600	23,62
127	5,00	145	5,71	0,9	13	6	90	18	270	5,80	3,89	750	29,53
152	6,00	171	6,73	0,9	13	6	90	18	270	7,59	5,09	950	37,40

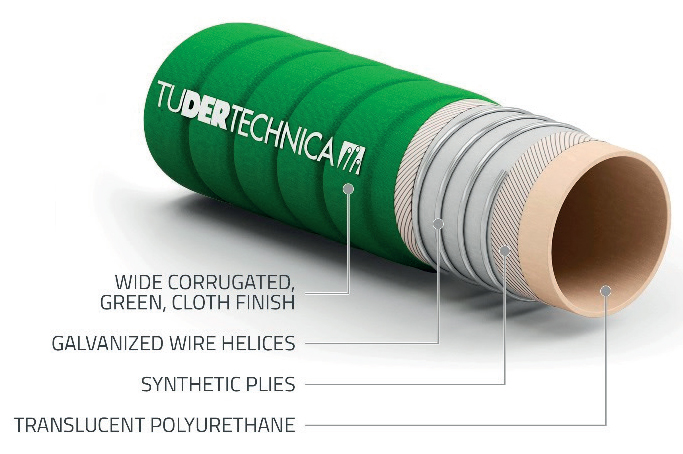

Tusilo PU Form

Suction and delivery hose suitable for powdery and granular dry food products.

DESCRIPTION

Tube : polyurethane, translucent. Meets FDA 21 CFR 177.2600
Reinforcement : synthetic plies, galvanized wire helices, a/s copper wires to discharge static electricity
Cover : wide corrugated, green, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUSILO PU FORM

TECHNICAL CHARACTERISTICS

Temperature range : -30°C / +100°C ( -22°F / +212°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Th. outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
25	1,00	39	1,54	0,9	13	5	75	15	225	0,83	0,56	75	2,95
38	1,50	52	2,05	0,9	13	5	75	15	225	1,36	0,91	130	5,12
51	2,00	67	2,64	0,9	13	5	75	15	225	2,07	1,39	185	7,28
63,5	2,50	79,5	3,13	0,9	13	5	75	15	225	2,51	1,68	240	9,45
76	3,00	94	3,70	0,9	13	5	75	15	225	3,22	2,16	300	11,81
102	4,00	120	4,72	0,9	13	5	75	15	225	4,49	3,01	410	16,14

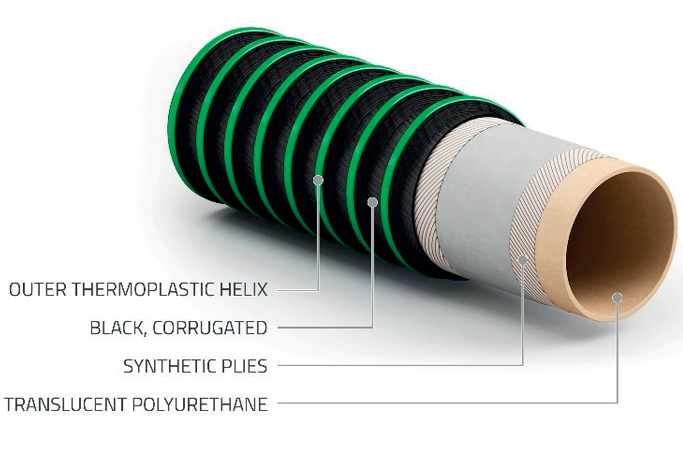

Spiraltech PU

Light and flexible lorry collecting hose suitable for powdery and granular dry food products.

DESCRIPTION

Tube : polyurethane, translucent. Meets FDA 21 CFR 177.2600
Reinforcement : synthetic plies, a/s copper wires to discharge static electricity
Cover : corrugated, black, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,39	0,93	90	3,54
51	2,00	-	-	0,9	13	10	150	30	450	1,81	1,21	125	4,92
63,5	2,50	-	-	0,8	11,5	10	150	30	450	2,20	1,47	160	6,30
76	3,00	-	-	0,8	11,5	10	150	30	450	2,58	1,73	190	7,48
102	4,00	-	-	0,7	10	10	150	30	450	3,37	2,26	250	9,84
