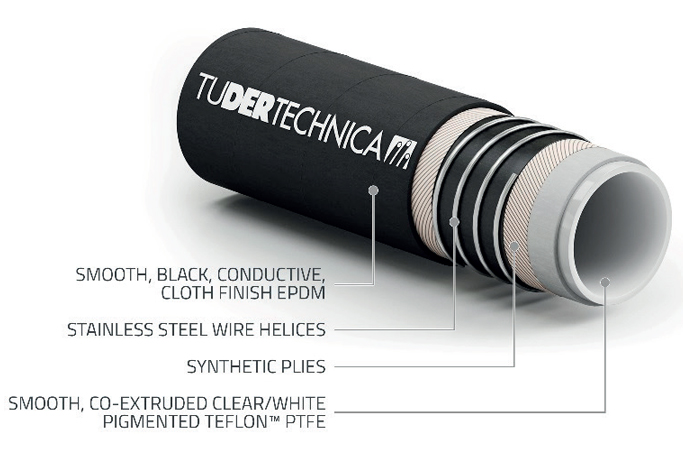

Tufluor PTFE Chem

Suction and delivery hose designed according to EN 12115 standards for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.

DESCRIPTION

Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Length		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[mt]	[ft]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	25	1,00	0,9	13	40	130	16	250	64	1000	0,54	0,36	90	3,54
19	0,75	31	1,22	0,9	13	40	130	16	250	64	1000	0,70	0,47	130	5,12
25	1,00	37	1,46	0,9	13	40	130	16	250	64	1000	0,86	0,58	170	6,69
32	1,25	44	1,73	0,9	13	40	130	16	250	64	1000	1,18	0,79	215	8,46
38	1,50	51	2,00	0,9	13	40	130	16	250	64	1000	1,43	0,96	255	10,04
50	1,97	66	2,60	0,9	13	40	130	16	250	64	1000	2,08	1,39	330	12,99
63,5	2,50	79,5	3,13	0,9	13	20	65	16	250	64	1000	2,96	1,98	430	16,93
75	2,95	91	3,58	0,9	13	20	65	16	250	64	1000	3,43	2,30	510	20,08
100	3,94	116	4,57	0,9	13	20	65	12	185	48	750	4,60	3,08	675	26,57

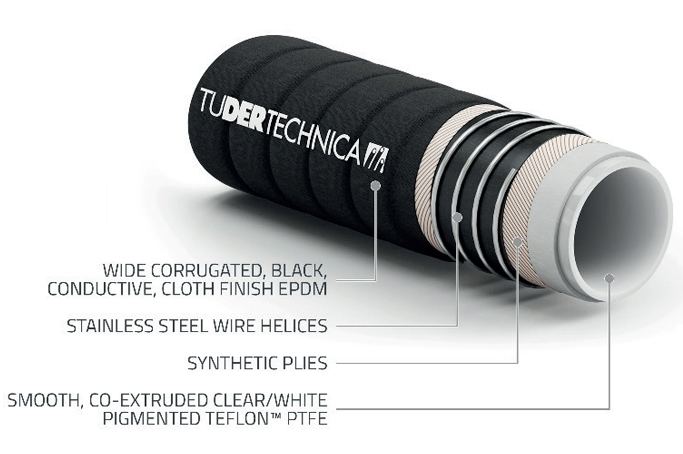

Tufluor PTFE Chem Form

DESCRIPTION

Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : red/white/blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Length		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[mt]	[ft]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	25	1,00	0,9	13	40	130	10	150	40	600	0,49	0,33	55	2,17
19	0,75	31	1,22	0,9	13	40	130	10	150	40	600	0,64	0,43	75	2,95
25	1,00	37	1,46	0,9	13	40	130	10	150	40	600	0,79	0,53	95	3,74
32	1,25	44	1,73	0,9	13	40	130	10	150	40	600	0,90	0,60	115	4,53
38	1,50	51	2,00	0,9	13	40	130	10	150	40	600	1,22	0,82	140	5,51
50	1,97	66	2,60	0,9	13	40	130	10	150	40	600	1,95	1,31	190	7,48
63,5	2,50	79,5	3,13	0,9	13	20	65	10	150	40	600	2,54	1,70	245	9,65
75	2,95	91	3,58	0,9	13	20	65	10	150	40	600	2,95	1,97	330	12,99
100	3,94	116	4,57	0,9	13	20	65	10	150	40	600	3,82	2,56	475	18,70

Tufluor PTFE Chem Full Conductive Form

DESCRIPTION

Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Length		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[mt]	[ft]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	25	1,00	0,9	13	40	130	16	250	64	1000	0,54	0,36	90	3,54
19	0,75	31	1,22	0,9	13	40	130	16	250	64	1000	0,70	0,47	130	5,12
25	1,00	37	1,46	0,9	13	40	130	16	250	64	1000	0,86	0,58	170	6,69
32	1,25	44	1,73	0,9	13	40	130	16	250	64	1000	1,18	0,79	215	8,46
38	1,50	51	2,00	0,9	13	40	130	16	250	64	1000	1,43	0,96	255	10,04
50	1,97	66	2,60	0,9	13	40	130	16	250	64	1000	2,08	1,39	330	12,99
63,5	2,50	79,5	3,13	0,9	13	20	65	16	250	64	1000	2,96	1,98	430	16,93
75	2,95	91	3,58	0,9	13	20	65	16	250	64	1000	3,43	2,30	510	20,08
100	3,94	116	4,57	0,9	13	20	65	12	185	48	750	4,60	3,08	675	26,57

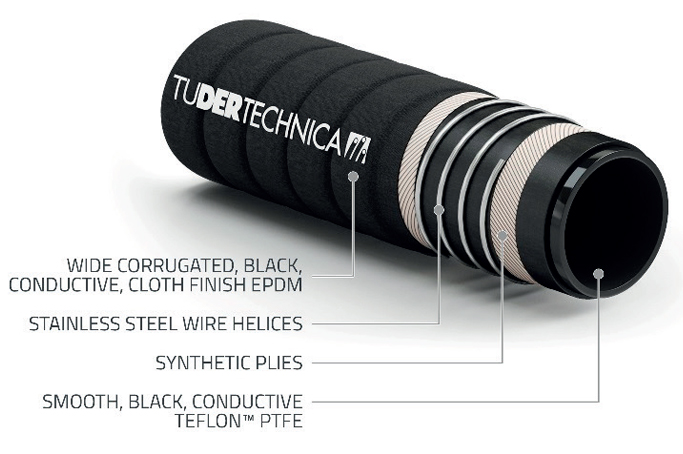

Tufluor PTFE Pharmachem

DESCRIPTION

Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wire to discharge static electricity
Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Length		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[mt]	[ft]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	25	1,00	0,9	13	40	130	10	150	40	600	0,49	0,33	55	2,17
19	0,75	31	1,22	0,9	13	40	130	10	150	40	600	0,64	0,43	75	2,95
25	1,00	37	1,46	0,9	13	40	130	10	150	40	600	0,79	0,53	95	3,74
32	1,25	44	1,73	0,9	13	40	130	10	150	40	600	0,90	0,60	115	4,53
38	1,50	51	2,00	0,9	13	40	130	10	150	40	600	1,22	0,82	140	5,51
50	1,97	66	2,60	0,9	13	40	130	10	150	40	600	1,95	1,31	190	7,48
63,5	2,50	79,5	3,13	0,9	13	20	65	10	150	40	600	2,54	1,70	245	9,65
75	2,95	91	3,58	0,9	13	20	65	10	150	40	600	2,95	1,97	330	12,99
100	3,94	116	4,57	0,9	13	20	65	10	150	40	600	3,82	2,56	475	18,70

Tufluor PTFE Chem Form

DESCRIPTION

Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
Marking : red/white/blue tape TUDERTECHNICA TUFLUOR® PTFE CHEM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +150°C ( -40°F / +302°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
Norm : EN12115 - TRbF 131/2

Inside diameter		Outside diameter		Vacuum		Length		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[mt]	[ft]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	25	1,00	0,9	13	40	130	10	150	40	600	0,49	0,33	55	2,17
19	0,75	31	1,22	0,9	13	40	130	10	150	40	600	0,64	0,43	75	2,95
25	1,00	37	1,46	0,9	13	40	130	10	150	40	600	0,79	0,53	95	3,74
32	1,25	44	1,73	0,9	13	40	130	10	150	40	600	0,90	0,60	115	4,53
38	1,50	51	2,00	0,9	13	40	130	10	150	40	600	1,22	0,82	140	5,51
50	1,97	66	2,60	0,9	13	40	130	10	150	40	600	1,95	1,31	190	7,48
63,5	2,50	79,5	3,13	0,9	13	20	65	10	150	40	600	2,54	1,70	245	9,65
75	2,95	91	3,58	0,9	13	20	65	10	150	40	600	2,95	1,97	330	12,99
100	3,94	116	4,57	0,9	13	20	65	10	150	40	600	3,82	2,56	475	18,70
