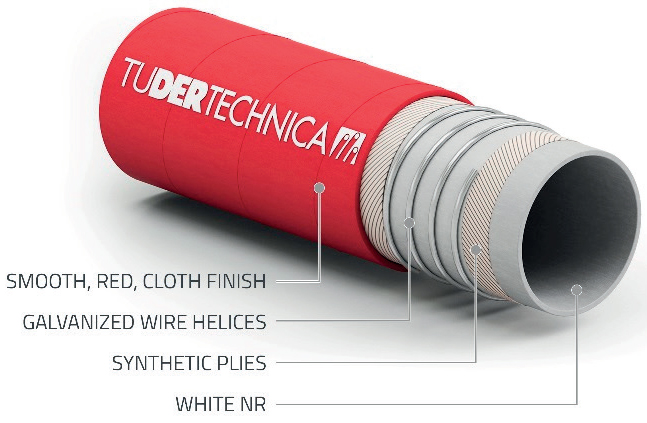

Tufood Natural

Suction and delivery hose suitable for milk, milk by-products, wine and non-fatty food products.

DESCRIPTION

Tube : NR, white, phthalates free, tested in compliance with 1907 / 2006 / CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21. 03. 73 e seguenti, EUROPEAN REGLEMENT 1935 / 2004 / CE, JAPAN-Ministry of Health and Welfare Notice No. 370, 1959 and No. 201, 2006.
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUFOOD® NATURAL

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +80°C ( -40°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	10	150	30	450	0,66	0,44	60	2,36
25	1,00	37	1,46	0,9	13	10	150	30	450	0,81	0,54	85	3,35
32	1,25	44	1,73	0,9	13	10	150	30	450	1,00	0,67	115	4,53
38	1,50	51	2,00	0,9	13	10	150	30	450	1,28	0,86	150	5,91
51	2,00	64	2,52	0,9	13	10	150	30	450	1,66	1,11	210	8,27
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,52	1,69	265	10,43
76	3,00	91	3,58	0,9	13	10	150	30	450	2,97	1,99	320	12,60
120	4,00	118	4,65	0,9	13	10	150	30	450	4,16	2,79	430	6,93

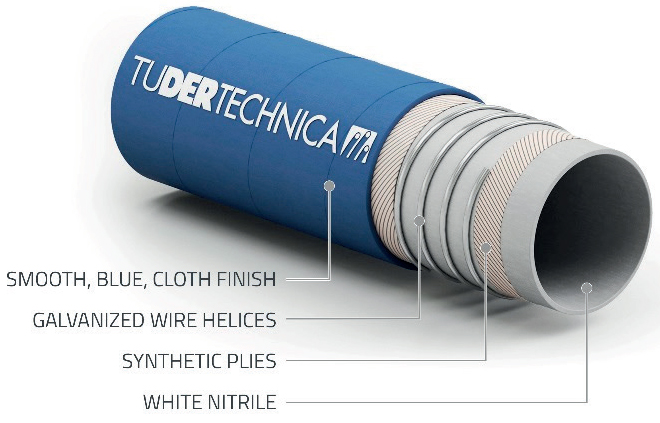

Tufood Fat

Suction and delivery hose suitable for fatty and non-fatty food products.

DESCRIPTION

Tube : NBR, white, phthalates free, tested in compliance with 1907 / 2006 / CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935 / 2004 / CE, JAPAN-Ministry of Health and Welfare Notice No. 370, 1959 and No. 201, 2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, blue, abrasion, ageing, ozone and oil resistant, cloth finish
Marking : TUDERTECHNICA TUFOOD® FAT

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	10	150	30	450	0,74	0,50	60	2,36
25	1,00	37	1,46	0,9	13	10	150	30	450	0,91	0,61	85	3,35
32	1,25	44	1,73	0,9	13	10	150	30	450	1,12	0,75	115	4,53
38	1,50	51	2,00	0,9	13	10	150	30	450	1,40	0,94	150	5,91
51	2,00	64	2,52	0,9	13	10	150	30	450	1,80	1,21	210	8,27
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,70	1,81	265	10,43
76	3,00	91	3,58	0,9	13	10	150	30	450	3,17	2,12	320	12,60
102	4,00	118	4,65	0,9	13	10	150	30	450	4,42	2,96	430	16,93

Tufood EPDM

Suction and delivery hose suitable for a wide range of food products. Not recommended for fatty food products and oil.

DESCRIPTION

Tube : EPDM, white, phthalates free, tested in compliance with 1907 / 2006 / CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935 / 2004 / CE, JAPAN-Ministry of Health and Welfare Notice No. 370, 1959 and No. 201, 2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUFOOD® EPDM

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	10	150	30	450	0,70	0,47	60	2,36
25	1,00	37	1,46	0,9	13	10	150	30	450	0,85	0,57	85	3,35
32	1,25	44	1,73	0,9	13	10	150	30	450	1,04	0,70	115	4,53
38	1,50	51	2,00	0,9	13	10	150	30	450	1,31	0,88	150	5,91
51	2,00	64	2,52	0,9	13	10	150	30	450	1,69	1,13	210	8,27
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,55	1,71	265	10,43
76	3,00	91	3,58	0,9	13	10	150	30	450	2,99	2,00	320	12,60
102	4,00	118	4,65	0,9	13	10	150	30	450	4,18	2,80	430	16,93

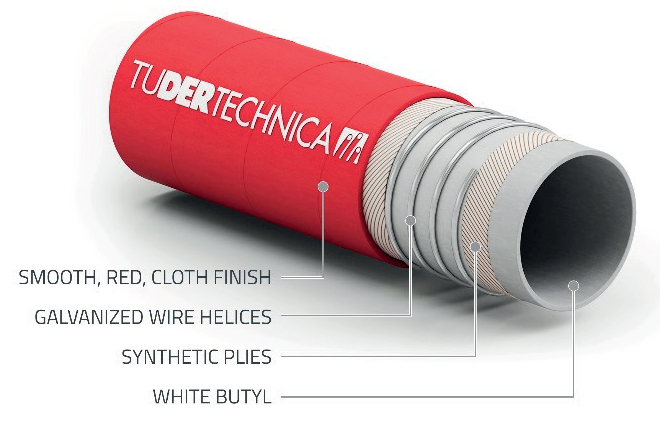

Tuprestige

Premium grade low permeation suction and delivery hose suitable for a wide range of products. Recommended for wine and spirits.

DESCRIPTION

Tube : IIR, white, phthalates free, tested in compliance with 1907 / 2006 / CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935 / 2004 / CE, JAPAN-Ministry of Health and Welfare Notice No. 370, 1959 and No. 201, 2006, 3A Sanitary Standard Class II
Reinforcement : synthetic plies, galvanized wire helices
Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUPRESTIGE

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +120°C ( -40°F / +248°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
19	0,75	31	1,22	0,9	13	10	150	30	450	0,71	0,48	60	2,36
25	1,00	37	1,46	0,9	13	10	150	30	450	0,87	0,58	85	3,35
32	1,25	44	1,73	0,9	13	10	150	30	450	1,06	0,71	115	4,53
38	1,50	51	2,00	0,9	13	10	150	30	450	1,34	0,90	150	5,91
51	2,00	64	2,52	0,9	13	10	150	30	450	1,72	1,15	210	8,27
63,5	2,50	78,5	3,09	0,9	13	10	150	30	450	2,59	1,74	265	10,43
76	3,00	91	3,58	0,9	13	10	150	30	450	3,04	2,04	320	12,60
102	4,00	118	4,65	0,9	13	10	150	30	450	4,25	2,85	430	16,93

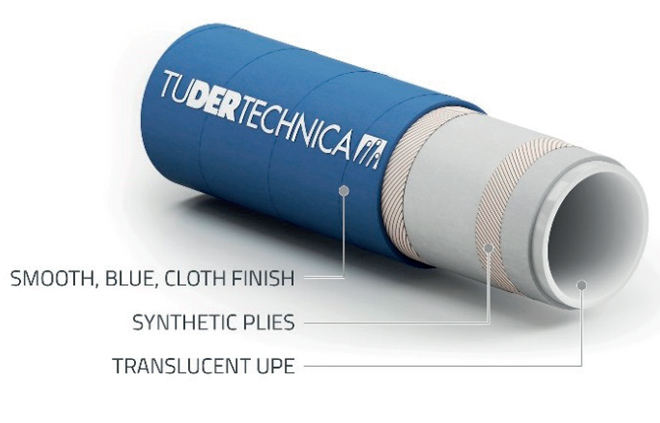

Tuacqua / KTW

Delivery hose suitable for potable water.

DESCRIPTION

Tube : UPE, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR CAT III, DM 21.03.73 e seguenti, KTW and W270, EUROPEAN REGLEMENT 1935/2004/CE, AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201, 2006
Reinforcement : synthetic plies
Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
Marking : TUDERTECHNICA TUACQUA / KTW

TECHNICAL CHARACTERISTICS

Temperature range : -35°C / +100°C ( -31°F / +212°F)
Norm : ISO 1307 for dimensional tolerances KTW class A -35°C / +55°C ( -31°F / +131°F)

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
10	0,39	17,5	0,69	-	-	20	300	60	900	0,21	0,14	50	1,97
13	0,50	21,5	0,85	-	-	20	300	60	900	0,30	0,20	65	2,56
16	0,63	26	1,02	-	-	20	300	60	900	0,43	0,29	80	3,15
19	0,75	29	1,14	-	-	20	300	60	900	0,49	0,33	95	3,74
25	1,00	35	1,38	-	-	20	300	60	900	0,62	0,42	140	5,51
32	1,25	45	1,77	-	-	20	300	60	900	1,06	0,71	190	7,48
38	1,50	52	2,05	-	-	20	300	60	900	1,35	0,90	230	9,06
40	1,57	54	2,13	-	-	20	300	60	900	1,39	0,93	245	9,65
50	1,97	66	2,60			20	300	60	900	1,94	1,30	310	12,20

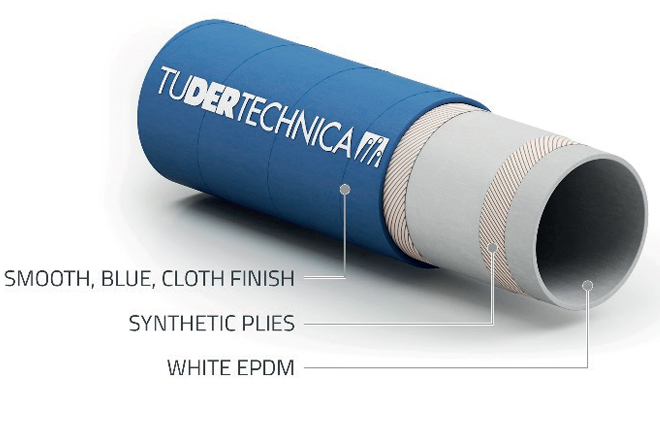

Tubluestream

Delivery hose suitable for cleaning plant and equipment with hot water mixed with steam.

DESCRIPTION

Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies
Cover : smooth, blue, abrasion, ageing, ozone and oil resistant, pin pricked, cloth finish
Marking : TUDERTECHNICA TUBLUESTREAM

TECHNICAL CHARACTERISTICS

Temperature range : -40°C / +164°C ( -40°F / +327°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed, the length of time the fluid is in contact with the hose and the working pressure.
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Working Pressure (164°C)		Working Pressure (95°C)		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
10	0,39	20	0,79	6	90	20	300	60	900	0,29	0,19	-	-
13	0,50	23	0,91	6	90	20	300	60	900	0,35	0,23	-	-
16	0,63	26	1,02	6	90	20	300	60	900	0,41	0,27	-	-
19	0,75	31	1,22	6	90	20	300	60	900	0,60	0,40	-	-
25	1,00	39,5	1,56	6	90	20	300	60	900	0,93	0,62	-	-
32	1,25	46,5	1,83	6	90	20	300	60	900	1,16	0,78	-	-
38	1,50	54	2,13	6	90	20	300	60	900	1,47	0,98	-	-
51	2,00	68	2,68	6	90	20	300	60	900	2,03	1,36	-	-

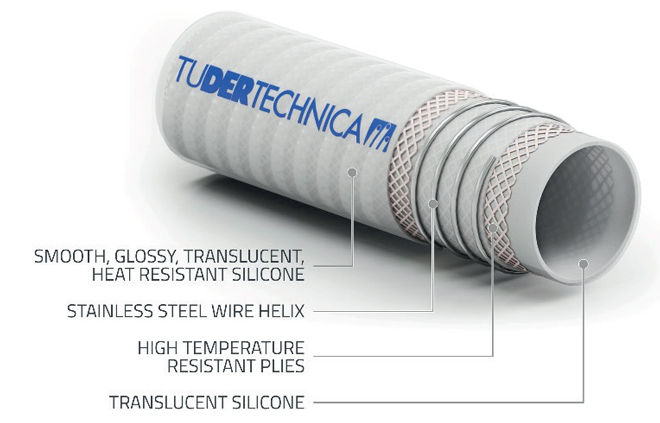

Tusil Bright

Suction and delivery hose suitable for cosmetic, pharmaceutical and food products. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids.

DESCRIPTION

Tube : silicone, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11:2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935/2004/CE, DM 21/03/1973 e seguenti, Japan Ministry of Health and Welfare Notice No.370,1959, No.201,2006 and revision 2012, 3A Sanitary Standard Class II
Reinforcement : high temperature resistant plies, stainless steel wire helix
Cover : smooth, silicone, translucent, heat, ageing, ozone and abrasion resistant, glossy cover
Marking : TUDERTECHNICA TUSIL® BRIGHT

TECHNICAL CHARACTERISTICS

Temperature range : -60°C / +200°C ( -76°F / +392°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	24	0,94	0,9	13	15	225	45	675	0,46	0,31	60	2,36
16	0,63	27	1,06	0,9	13	14	210	42	630	0,53	0,36	70	2,76
19	0,75	30	1,18	0,9	13	13	195	39	585	0,60	0,40	80	3,15
25	1,00	36	1,42	0,9	13	10	150	30	450	0,73	0,49	100	3,94
32	1,25	43	1,69	0,9	13	8	120	24	360	0,89	0,60	130	5,12
38	1,50	51	2,00	0,9	13	7	105	21	315	1,21	0,81	155	6,10
51	2,00	64	2,52	0,9	13	6	90	18	270	1,56	1,05	210	8,27
63,5	2,50	78,5	3,09	0,9	13	5	75	15	225	2,32	1,55	260	10,24
76	3,00	91	3,58	0,9	13	4	60	12	180	2,72	1,82	310	12,20
102	4,00	117	4,61	0,9	13	3	45	9	135	3,55	2,38	420	16,54

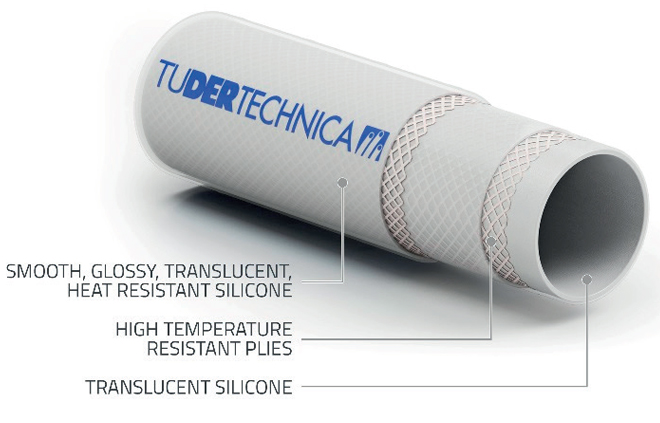

Tusil Bright D

Delivery hose suitable for cosmetic, pharmaceutical and food products. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids.

DESCRIPTION

Tube : silicone, translucent, phthalates free, tested in compliance with 1907 / 2006 / CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11 : 2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935 / 2004 / CE, DM 21 / 03 / 1973 e seguenti, Japan Ministry of Health and Welfare Notice No. 370, 1959, No.201,2006 and revision 2012, 3A Sanitary Standard Class II
Reinforcement : high temperature resistant plies
Cover : smooth, silicone, translucent, heat, ageing, ozone and abrasion resistant, glossy cover
Marking : TUDERTECHNICA TUSIL® BRIGHT

TECHNICAL CHARACTERISTICS

Temperature range : -60°C / +200°C ( -76°F / +392°F )
Norm : ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
10	0,39	22	0,87	-	-	16	250	48	750	0,35	0,23	-	-
13	0,50	25	1,00	-	-	15	225	45	675	0,41	0,27	-	-
16	0,63	28	1,10	-	-	14	210	42	630	0,48	0,32	-	-
19	0,75	31	1,22	-	-	13	195	39	585	0,55	0,37	-	-
25	1,00	37	1,46	-	-	10	150	30	450	0,68	0,46	-	-
32	1,25	44	1,73	-	-	8	120	24	360	0,83	0,56	-	-
38	1,50	50	1,97	-	-	7	105	21	315	0,96	0,64	-	-
51	2,00	63	2,48	-	-	6	90	18	270	1,24	0,83	-	-
63,5	2,50	76,5	3,01	-	-	5	75	15	225	1,68	1,13	-	-
76	3,00	89	3,50	-	-	4	60	12	180	1,98	1,33	-	-
102	4,00	115	4,53	-	-	3	45	9	135	2,61	1,75	-	-
