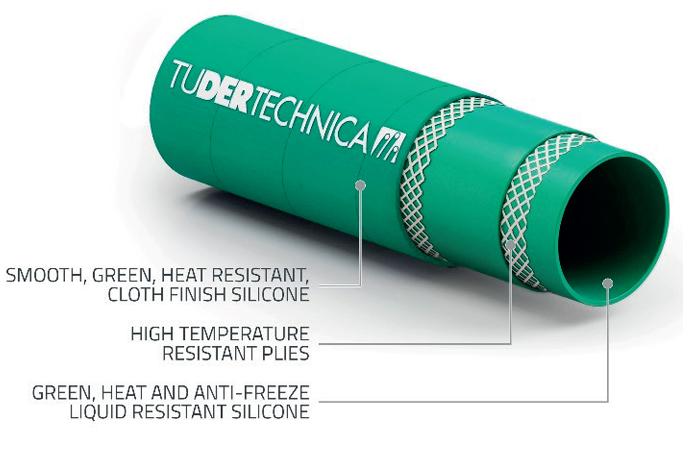

Tusil Rad

Straight connection between radiator and engine. Temperature range: -60°C / +200°C ( -76°F / +392°F ).

DESCRIPTION

Tube : silicone, green, heat and anti-freeze liquid resistant
Reinforcement : high temperature resistant plies
Cover : smooth, silicone, green, abrasion, ageing, ozone and heat resistant, cloth finish
Marking : TUDERTECHNICA TUSIL® RAD

TECHNICAL CHARACTERISTICS

Temperature range : -60°C / +200°C ( -76°F / +392°F)
Norm : SAE J20R1 CLASS A TMC RP303B ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
10	0,39	18	0,71	-	-	20	300	60	900	0,20	0,13	-	-
13	0,50	21	0,83	-	-	19	285	57	855	0,24	0,16	-	-
16	0,63	24	0,94	-	-	17	255	51	765	0,29	0,19	-	-
19	0,75	29	1,14	-	-	13	195	39	585	0,45	0,30	-	-
25	1,00	35	1,48	-	-	11	165	33	495	0,56	0,38	-	-
32	1,25	42	1,65	-	-	9	135	27	405	0,70	0,47	-	-
38	1,50	48	1,89	-	-	7	105	21	315	0,81	0,54	-	-
51	2,00	61	2,40	-	-	6	90	18	270	1,05	0,79	-	-
63,5	2,50	73,5	2,89	-	-	5	75	15	225	1,28	0,86	-	-
76	3,00	86	3,39	-	-	4	60	12	180	1,52	1,02	-	-
102	4,00	112	4,41	-	-	3	45	9	135	2,01	1,35	-	-

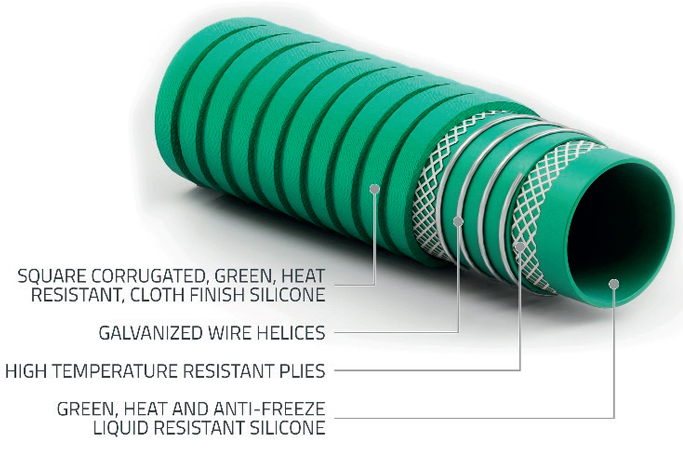

Tusil Radflex

Tight bend connection between radiator and engine. Can be used to replace pre-formed elbows due to the highly flexible structure. Temperature range: -60°C / +200°C ( -76°F / +392°F ).

DESCRIPTION

Tube : silicone, green, heat and anti-freeze liquid resistant
Reinforcement : high temperature resistant plies, galvanized wire helix
Cover :square corrugated, silicone, green, abrasion, ageing, ozone and heat resistant, cloth finish
Marking : TUDERTECHNICA TUSIL® RADFLEX

TECHNICAL CHARACTERISTICS

Temperature range :-60°C / +200°C ( -76°F / +392°F)
Norm : SAE J20R1 CLASS A TMC RP303B ISO 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
13	0,50	23	0,91	0,6	8,5	5	75	15	225	0,31	0,21	30	1,18
16	0,63	26	1,02	0,6	8,5	5	75	15	225	0,37	0,25	40	1,57
19	0,75	29	1,14	0,6	8,5	5	75	15	225	0,42	0,28	50	1,97
25	1,00	35	1,38	0,6	8,5	5	75	15	225	0,53	0,36	65	2,56
32	1,25	43	1,69	0,6	8,5	5	75	15	225	0,79	0,53	85	3,35
38	1,50	49	1,93	0,6	8,5	5	75	15	225	0,92	0,62	105	4,13
51	2,00	64	2,52	0,6	8,5	5	75	15	225	1,48	0,99	150	5,91
63,5	2,50	77,5	3,05	0,6	8,5	5	75	15	225	1,97	1,32	220	8,66
76	3,00	92	3,62	0,6	8,5	5	75	15	225	2,56	1,72	270	10,63
102	4,00	119	4,69	0,6	8,5	5	75	15	225	3,70	2,48	400	15,75
