Spiraltech Food Hoses

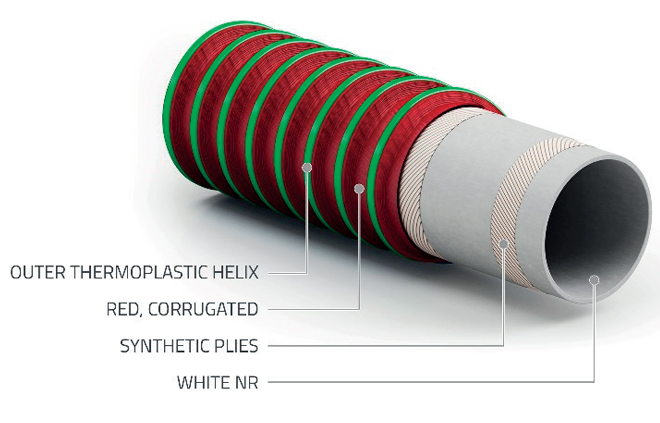

Spiraltech Nr

Light and flexible lorry collecting hose suitable for milk, milk byproducts, wine and non-fatty food products.

DESCRIPTION

Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
Reinforcement : synthetic plies
Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

.

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure			Appr. weight			Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]		[psi]	[kg/mt]		[lbs/ft]	[mm]		[in]
38	1,50	-	-	0,9	13	10	150	30		450	1,21		0,81	80		3,15
51	2,00	-	-	0,9	13	10	150	30		450	1,59		1,07	100		3,94
63,5	2,50	-	-	0,8	11,5	10	150	30		450	1,93		1,29	130		5,12
76	3,00	-	-	0,8	11,5	10	150	30		450	2,49		1,67	150		5,91
102	4,00	-	-	0,7	10	10	150	30		450	3,26		2,18	200		7,87

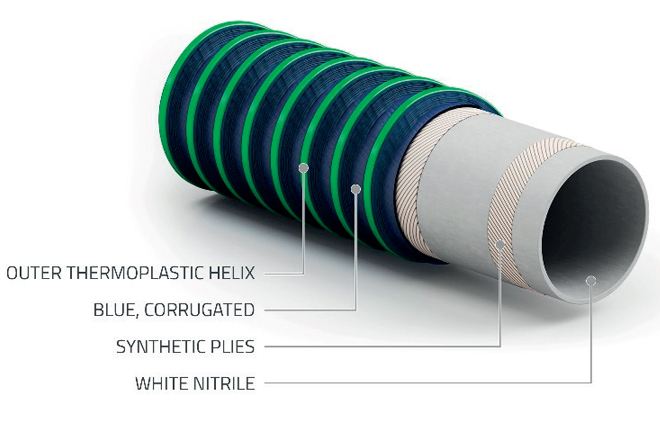

Spiraltech Nitrile

Light and flexible lorry collecting hose suitable for fatty and not fatty food products.

DESCRIPTION

Tube : NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies
Cover : corrugated, blue, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : 1307 for dimensional tolerances

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,21	0,81	80	3,15
51	2,00	-	-	0,9	13	10	150	30	450	1,62	1,09	100	3,94
63,5	2,50	-	-	0,8	11,5	10	150	30	450	1,96	1,31	130	5,12
76	3,00	-	-	0,8	11,5	10	150	30	450	2,37	1,59	150	5,91
102	4,00	-	-	0,8	10	10	150	30	450	3,06	2,05	200	7,87

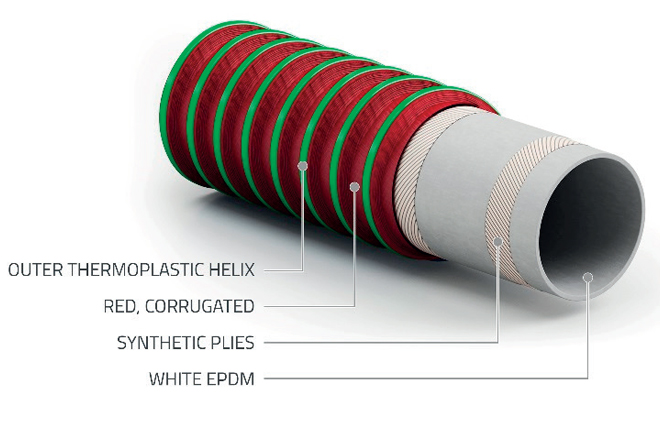

Spiraltech Epdm

Light and flexible lorry collecting hose suitable for a wide range of food products. Not recommended for fatty food products and oil.

DESCRIPTION

Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
Reinforcement : synthetic plies
Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

.

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,27	0,86	80	3,15
51	2,00	-	-	0,9	13	10	150	30	450	1,67	1,12	100	3,94
63,5	2,50	-	-	0,8	11,5	10	150	30	450	2,03	1,36	130	5,12
76	3,00	-	-	0,8	11,5	10	150	30	450	2,38	1,59	150	5,91
102	4,00	-	-	0,7	10	10	150	30	450	3,11	2,09	200	7,87

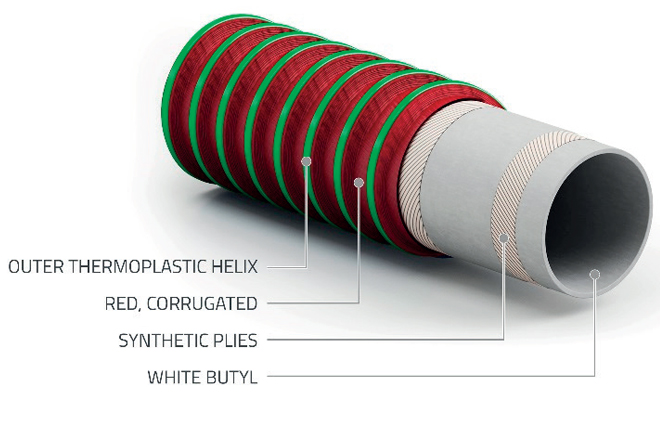

Spiraltech Butyl

Premium grade low permeation light and flexible lorry collecting hose suitable for a wide range of food products. Recommended for wine and spirits.

DESCRIPTION

Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
Reinforcement : synthetic plies
Cover : corrugated, red, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS

Temperature range : -25°C / +80°C ( -13°F / +176°F )
Norm : ISO 1307 for dimensional tolerances

.

Inside diameter		Outside diameter		Vacuum		Working pressure		Burst pressure		Appr. weight		Bending radius
[mm]	[in]	[mm]	[in]	[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	[kg/mt]	[lbs/ft]	[mm]	[in]
38	1,50	-	-	0,9	13	10	150	30	450	1,23	0,82	80	3,15
51	2,00	-	-	0,9	13	10	150	30	450	1,62	1,09	100	3,94
63,5	2,50	-	-	0,8	11,5	10	150	30	450	1,97	1,32	130	5,12
76	3,00	-	-	0,8	11,5	10	150	30	450	2,57	1,72	150	5,91
102	4,00	-	-	0,7	10	10	150	30	450	3,37	2,26	200	7,87
