Cream Biscuits Sandwiching Machine

We have pleasure in introducing ourselves as a manufacturer of wire cut type Cream Biscuit Sandwiching Machine. It will not be an exaggeration if we state that 'SVM' has earned a place of pride as Pioneer in manufacturing Cream Biscuit Sandwiching machine.

All components used in Machine are designed and manufactured strict to International Standards. Its design enables a wide range of Biscuit Sandwiches of various shapes & sizes. Cream deposite can be uniformly thick or thin large or small round, square or rectangular as required to match base biscuit size & shape.

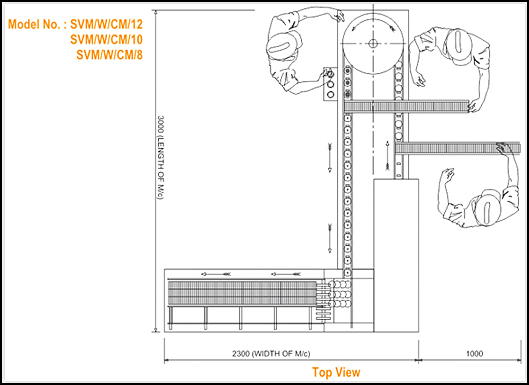

DIMENSIONS
MODEL	Length	Height	Width	Approx Weight
SVM/W/CM/12-10-8	16 FT 6 Inches	6 Feet	12 Feet	1.5 Ton (Approx)

DESCRIPTION	MODEL - SVM/CM/12	MODEL - SVM/CM/10	MODEL - SVM/CM/8
1) Number of Nozzles	12	10	8
2) Biscuits Size - Round - Square	28-50 DIA 30-45	28-50 DIA 30-45	55-80 DIA 55-75
- Rectangular - Minimum - Maximum	25×65 40×65	25×65 40×65	50×80 65×80
3) Stacking (on edge)	3 rows	3 rows	2 rows
4) Output per minute Approx.	600 Sandwiches	500 Sandwiches	400 Sandwiches
5) Cream deposition	0 - 6 Grams	0 - 6 Grams	5 - 15 Grams
6) Power required (440 V-3 phase) - for Sandwiching Machine - for Conveyor	2 H.P. 1 H.P.	2 H.P. 1 H.P.	2 H.P. 1 H.P.

Electrical Data
Poser	:	3 Phase Starter	440V with neutral 2 K.W.
Main Motor	:	3 Phase 1Phase	2 H.P. 1440 RPM 1.5 K.W.
