Slug Pack

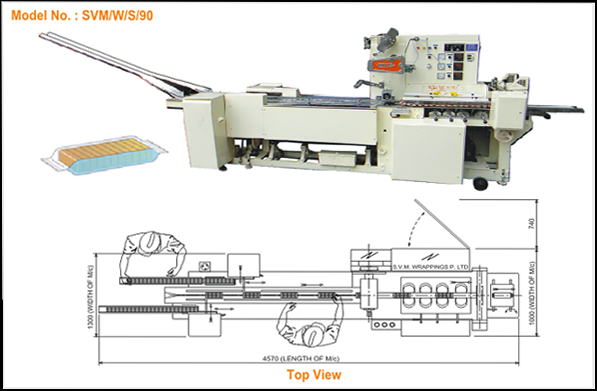

This machine Model No. SVM/W/S/90 is suitable for packing biscuits which runs naked on the edge. This machine consists of two feeding chute unit, which feeds the naked biscuits in the center feeding chain.

The feeding of biscuits is done mechanically by pusher linked to mechanical cam, which drives the pusher to and fro. The speed of the machines is 100-pkt/min. This machine is suitable for packaging different variety and shapes of biscuits round square rectangular.






DIMENSIONS

MODEL

Length

Height

Width

Approx Weight

SVM/W/S/90

15 FT

6 Feet

4 Feet

1 Ton (Approx)




Technical Data

Model

SVM/W/S/90

Maximum product height

Ø60mm.

Minimum product height

Ø25mm.

Maximum width of the product

60mm.

Minimum width of the product

25mm.

Max./Min. stack Length

200mm. / 55mm.

Maximum speed
(Depending upon the product)

100 Packets Per Min.

Electrical Data

Power

:

3 Phase

440V with neutral 2 K.W.

Main Motor

:

3 Phase
1 Phase
6 Lead

2 H.P.          1440 RPM
1.5 K.W.

Frequency
Drive

:


(a) 230V 2H.P.
(b) 440V 2H.P.

Input                 Output
Single phase     3Phase
3 Phase             3 Phase

Heater

:

50 Volts.
50 Volts.

250 Watts for jaws
400 Watts, Disc Heater

Transformer : Input Ac 440 Amp / Output Ac 50 Amp.




Capacity         :    Production for Every 8 Hrs.
Weight            :   100 Gms Packet
Production     :    Maximum 10 Tons

Wrapping Material

MODEL

SVM/W/S/90

Maximum width of the packing material

250 mm.

Minimum width of the packing material

140 mm.

Maximum Reel Dia.

12 Inch
