Family Pack

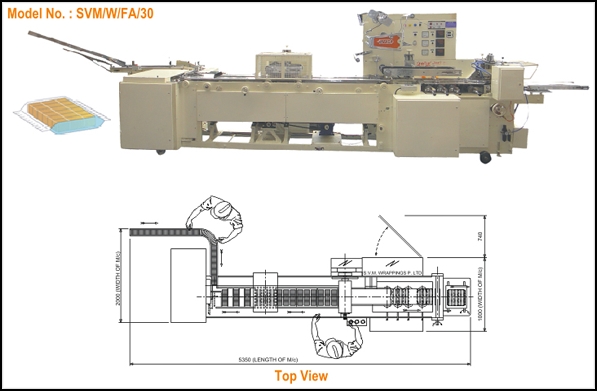

The machine model no. SVM/W/FA/30 is a single chute Family Pack Wrapping Machine. The feeding of biscuits in this machine is totally mechanical based on mechanical cam operation.

The speed of machine depends on the multiple of the no. of strokes and no. of rows of biscuits to be packed. This machine is suitable for round square and rectangle type of Biscuits.






DIMENSIONS

MODEL

Length

Height

Width

Approx Weight

SVM/W/FA/30

17 FT 6 Inchen

6 Feet

5 Feet

1.5 Ton (Approx)




Technical Data

Model

SVM/W/FA/30

Maximum product height

Ø60mm.

Minimum product height

Ø25mm.

Maximum width of the product

160mm.

Minimum width of the product

55mm.

Maximum stack Length

180mm.

Maximum speed
(Depending upon the product)

25 Packets Per Min. for 3 Rows

Electrical Data

Power

:

3 Phase

440V with neutral 2 K.W.

Main Motor

:

3 Phase
1 Phase
6 Lead

2 H.P.          1440 RPM
1.5 K.W.

Frequency
Drive

:


(a) 230V 2H.P.
(b) 440V 2H.P.

Input                 Output
Single phase     3Phase
3 Phase             3 Phase

Heater

:

50 Volts.
50 Volts.

250 Watts for jaws
400 Watts, Disc Heater

Transformer : Input Ac 440 Amp / Output Ac 50 Amp.




Capacity         :    Production for Every 8 Hrs.
Weight            :
300 Gms Packet
Production     :
Maximum 3.5 Tons

Wrapping Material

MODEL

SVM/W/FA/30

Maximum width of the packing material

500 mm.

Minimum width of the packing material

140 mm.

Maximum Reel Dia.

112 Inch
