Soap and wafer Biscuits Wrapping Machine |
|
| |
|
|
This machine model no. is SVM/w/HS/100 and

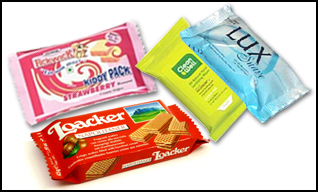

is suitable for packing Soaps, Wager
Biscuits, Cream Biscuits & Bearings etc. The
machine is similar to the minipack machine.
The only difference is that the machine has
cross conveyor attached for the feeding of
wafer biscuits and soaps in the infeed
chain. The feeting of wafer biscuits is done
by the cross conveyor.
The soaps & wafer biscuits are stacked
manually in line on his conveyor which feeds
the biscuits in the feeding chain. The
machine is fitted with double sealing jaws. | |
| |
|

|
| |
| |
|

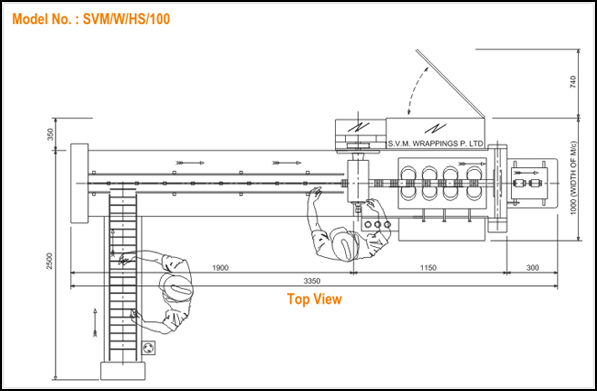

DIMENSIONS |
|
MODEL |
Length |
Height |
Width |
Approx Weight |
|
SVM/W/HS/100 |
11 FT |
6 Feet |
7 Feet |
1000 K.G. (Approx) | |
| |
| | |
|
Technical Data |
|
Model |
SVM/W/HS/100 |
|
Maximum product
height |
Ø60mm. |
|
Minimum product
height |
Ø25mm. |
|
Maximum width of the
product |
160mm. |
|
Minimum width of the
product |
50mm. |
|
Maximum stack Length |
150mm. |
|
Maximum speed
(Depending upon the
product) |
* |
|
*
Depends on Products
& Man Power. | |
|
Electrical Data |
|
Power |
: |
3 Phase |
440V with neutral 2
K.W. |
|
Main Motor |
: |
3 Phase
1 Phase
6 Lead |
2 H.P.
1440 RPM
1.5 K.W. |
|
Frequency
Drive |
: |
(a) 230V 2H.P.
(b) 440V 2H.P.
|
Input
Output
Single phase
3Phase
3 Phase
3 Phase |
|
Heater |
: |
50 Volts.
50 Volts. |
250 Watts for jaws
400 Watts, Disc
Heater |
|
Transformer :
Input Ac 440 Amp /
Output Ac 50 Amp. | | |
| |
| |
|
Capacity :
Production for Every 8 Hrs.
Weight
: *
Production
: * |
|
Wrapping Material |
|
MODEL |
SVM/W/HS/100 |
|
Maximum width of the
packing material |
* |
|
Minimum width of the
packing material |
* |
|
Maximum Reel Dia. |
12 Inch |
|
*
Depends on Products
& Requirement | | | |
