Jumbo Pack |
| |
|

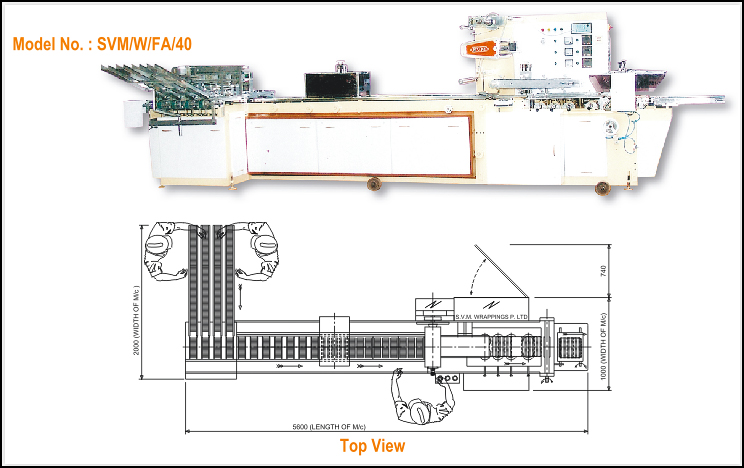

As the machine name signifies machine model
no. SVM/W/FA/40 is designed with the latest
technology & has four chutes attached to the
machine. The speed of the machine depends on
multiple numbers of drops and rows that has
to be packed. This machine is high speed
family pack machine. The machine consists of
stepper / servo motor attachment along with
pneumatic system for the feeding of biscuits
synchronized with the basic machine through
PLC control to achieve accuracy of feeding.
This reduces the wastage produced and
increases the output.
Speed motor or servo motor is used to drive
the feeding unit. The selection of motor
solely depends upon the customers
requirements. The electrical components used
in the machine are of reputed & branded
company. |
| |
|
|

|
| |
|
DIMENSIONS |
|
MODEL |
Length |
Height |
Width |
Approx Weight |
|
SVM/W/FA/40 |
18 FT 6 Inches |
6 Feet |
8 Feet |
1.5 Ton (Approx) | |
| |
| | |
|
Technical Data |
|
Model |
SVM/W/FA/40 |
|
Maximum product
height |
Ø60mm. |
|
Maximum stack of the
product |
Ø25mm. |
|
Maximum stack of the
product |
160mm. |
|
Minimum stack of the
product |
80mm. |
|
Maximum stack Length |
180mm. |
|
Maximum speed
(Depending upon the
product) |
32 Packets Per Min,
for 4 Rows | |
|
Electrical Data |
|
Power |
: |
3 Phase |
440V with neutral 2
K.W. |
|
Main Motor |
: |
3 Phase
1 Phase
6 Lead |
2 H.P.
1440 RPM
1.5 K.W. |
|
Frequency
Drive |
: |
(a) 230V 2H.P.
(b) 440V 2H.P.
|
Input
Output
Single phase
3Phase
3 Phase
3 Phase |
|
Heater |
: |
50 Volts.
50 Volts. |
250 Watts for jaws
400 Watts, Disc
Heater |
|
Transformer :
Input Ac 440 Amp /
Output Ac 50 Amp. | | |
| |
| |
|
Capacity :
Production for Every 8 Hrs.
Weight
: 500 Gms Packet
Production : Maximum 10
Tons |
|
Wrapping Material |
|
MODEL |
SVM/W/FA/40 |
|
Maximum width of the
packing material |
500 mm. |
|
Minimum width of the
packing material |
140 mm. |
|
Maximum Reel Dia. |
12 Inch | | |
