Magnetic Chucks

  1. Home
  2. Our Products

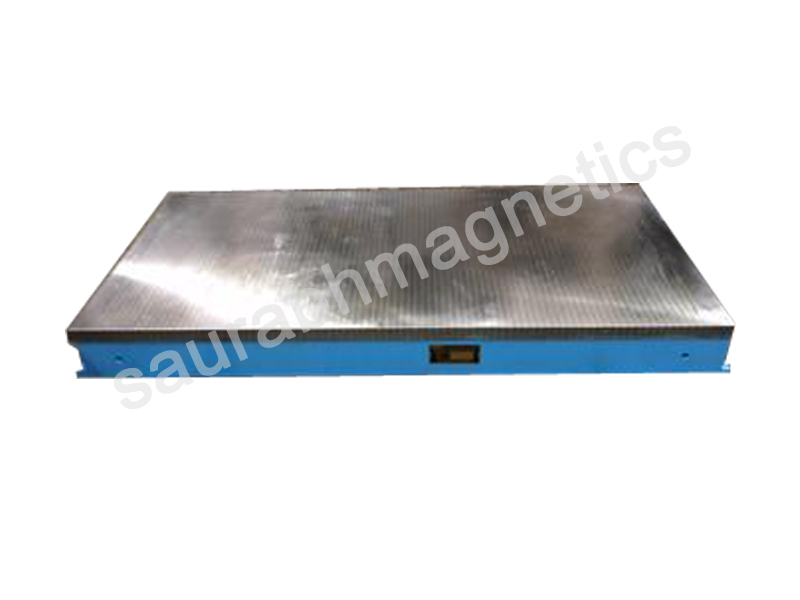

Electro Magnetic Chuck

We are one of the most reckoned organizations engaged in offering Magnetic Chucks. In various industrial processes, it is widely used for holding ferro-magnetic work pieces owing to its magnetic properties. These products are appreciated by our clients as they provide optimum performance without any disturbance.

Features :

  • Work holding device for surface grinding machines.
  • Each pole is having separate coil, as such very strong & even magnetic flux is generated.
  • Accuracy as per IS : 8710 - 1978.
  • Magnetic pull is 30-50% more then IS specification.
  • Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely, using a microprocessor based control circuitry.
  • Variable supply to vary power which helps in alignment & removing of warpages of thin jobs.
  • Chuck is tested for Slippering force, Waterproof test, Temperature rise test, Electrical & Demagnetizing tests.
  • Also available in Longitudinal Poles.
  • We also manufacture Special chucks to suit individual requirements.
  • Good quality & standard electrical accessories.
SR.No. Cat No.  Size (mm) Pole Gap (mm) Pole Pitch
1. SMP-5001 450 L x 150 W x 100 H 12 30
2. SMP-5002 500 L x 200 W x 100 H 12 30
3 SMP-5003 600 L x 200 W x 100 H 12 30
4. SMP-5004 600 L x 250 W x 100 H 12 30
5. SMP-5005 750 L x 250 W x 100 H 12 30
6. SMP-5006 900 L x 250 W x 100 H 12 30
7. SMP-5007 600 L x 300 W x 100 H 12 30
8. SMP-5008 750 L x 300 W x 100 H 12 30
9. SMP-5009 900 L x 300 W x 100 H 12 30
10. SMP-5010 1000 L x 250 W x 110 H 12 30
11. SMP-5011 1000 L x 300 W x 110 H 12 30
12. SMP-5012 1500 L x 250 W x 110 H 12 30
13. SMP-5013 1500 L x 300 W x 110 H 12 30
14. SMP-5014 1500 L x 400 W x 110 H 12 30
15A. "SMP" MAG d- MAG WITH VERIABLE CONTROL UNIT UPTO 1000L 2 Amp.
UPTO 1500L 3 Amp.
15B. "SMP" MAG d- MAG WITH VERIABLE CONTROL UNIT & BATTERY BACKUP (20MIN) UPTO 1000L 2 Amp.
UPTO 1500L 3 Amp.
