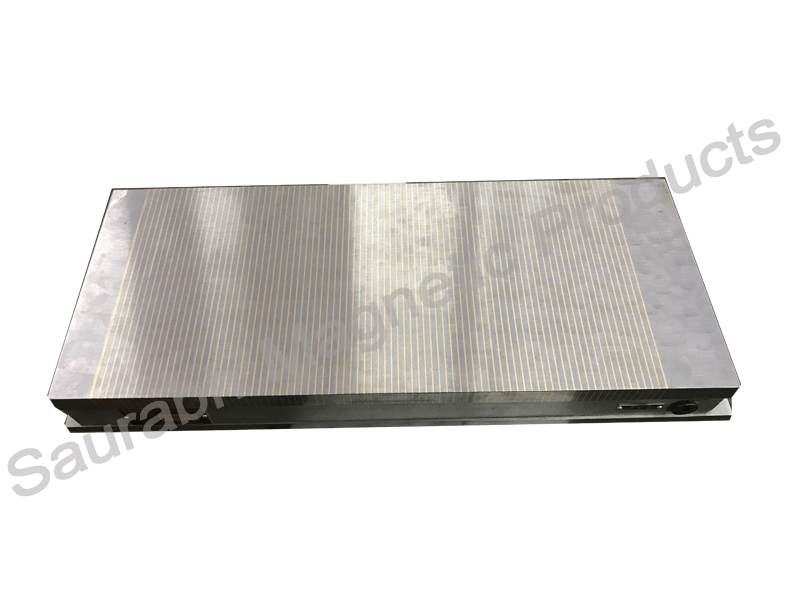

Fine Pole Magnetic Chuck
We are one of the most reckoned organizations engaged in offering Magnetic Chucks. In various industrial processes, it is widely used for holding ferro-magnetic work pieces owing to its magnetic properties. These products are appreciated by our clients as they provide optimum performance without any disturbance.
Features :
- Holding device for surface grinding machine, Tool & cutter grinder, Spark erosion machines.
- Fine Pitch (5 + 1) makes it suitable to hold very thin & small jobs.
- The working face & bottom face is perfectly parallel.
- Poles individually magnetized for full loading power.
- Suitable to hold thin & small jobs.
- Bottom plate has suitable extension to clamp on table.
- Better magnetic grip due to close pole.
- Easy operated ON-OFF lever
| Sr. No. | Cat No. | Size | Ploe Gap (mm) | Pole Pitch (mm) |
| 1. | SMP-2001 | 250 L x 150 W x 65 H | 5 | 12 |
| 2. | SMP-2002 | 300 L x 150 W x 65 H | 5 | 12 |
| 3. | SMP-2003 | 300 L x 200 W x 65 H | 5 | 12 |
| 4. | SMP-2004 | 350 L x 150 W x 65 H | 5 | 12 |
| 5. | SMP-2005 | 400 L x 150 W x 65 H | 5 | 12 |
| 6. | SMP-2006 | 450 L x 150 W x 70 H | 5 | 12 |
| 7. | SMP-2007 | 450 L x 200 W x 70 H | 5 | 12 |
| 8. | SMP-2008 | 500 L x 200 W x 70 H | 5 | 12 |
| 9. | SMP-2009 | 600 L x 200 W x 70 H | 5 | 12 |
| 10. | SMP-2010 | 450 L x 250 W x 70 H | 5 | 12 |
| 11. | SMP-2011 | 450 L x 300 W x 70 H | 5 | 12 |
| 12. | SMP-2012 | 600 L x 250 W x 70 H | 5 | 12 |
| 13. | SMP-2013 | 600 L x300 W x 70 H | 5 | 12 |
| 14. | SMP-2014 | 750 L x 250 W x 70 H | 5 | 12 |
