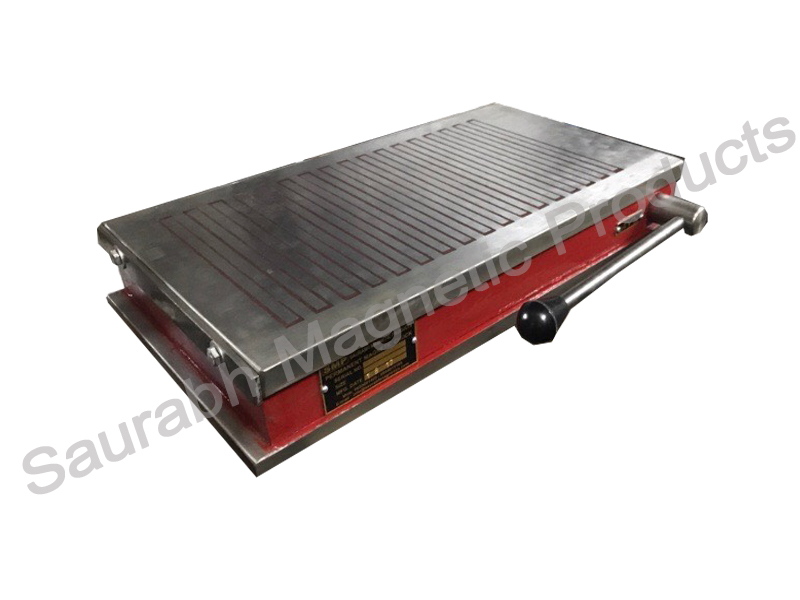

Milling Permanet Magnetic Chuck
We are one of the most reckoned organizations engaged in offering Magnetic Chucks. In various industrial processes, it is widely used for holding ferro-magnetic work pieces owing to its magnetic properties. These products are appreciated by our clients as they provide optimum performance without any disturbance.
We are one of the trusted manufacturer, exporter, traders and suppliers of an exclusive assortment of Magnetic Grills. The offered range is widely used in numerous industries for load bearing purposes. Our clients don't have to worry about the maintenance about the products; our highly trained experts have ensured that the costs remain to the minimum.
Features :
- Holding Device for VMC milling machine , CNC milling machine & manual milling machine.
- Accuracy as per IS : 4816 - 1987
- Assembled with powerful Magnets.
- Poles individually magnetized for full loading power.
- Magnetic pull is 40-70% more than IS specification.
- Bottom plate has suitable extension to clamp on table.
- Easy operated ON-OFF lever
| Sr.No. | Cat No. | Size | Ploe Gap (mm) | Pole Pitch (mm) |
| 1 | SMP-1001 | 200 L x 100 W x 60 H | 12 | 26 |
| 2 | SMP-1002 | 200 L x 150 W x 60 H | 12 | 26 |
| 3 | SMP-1003 | 250 L x 150 W x 60 H | 12 | 26 |
| 4 | SMP-1004 | 300 L x 150 W x 60 H | 12 | 26 |
| 5 | SMP-1005 | 300 L x 200 W x 65 H | 12 | 26 |
| 6 | SMP-1006 | 350 L x 150 W x 65 H | 12 | 26 |
| 7 | SMP-1007 | 400 L x 150 W x 65 H | 12 | 26 |
| 8 | SMP-1008 | 450 L x 150 W x 65 H | 12 | 26 |
| 9 | SMP-1009 | 450 L x 200 W x 70 H | 12 | 26 |
| 10 | SMP-1010 | 500 L x 200 W x 70 H | 12 | 26 |
| 11 | SMP-1011 | 600 L x 200 W x 70 H | 12 | 26 |
| 12 | SMP-1012 | 450 L x 250 W x 70 H | 12 | 26 |
| 13 | SMP-1013 | 450 L x 300 W x 70 H | 12 | 26 |
| 14 | SMP-1014 | 600 L x 250 W x 70 H | 12 | 26 |
| 15 | SMP-1015 | 600 L x 300 W x 70 H | 12 | 26 |
| 16 | SMP-1016 | 750 L x 250 W x 70 H | 12 | 26 |
