We bring forth for our clients an extensive range of high performing of Magnetic Lab Equipments those are made by high grade of material that are used for handling the material.

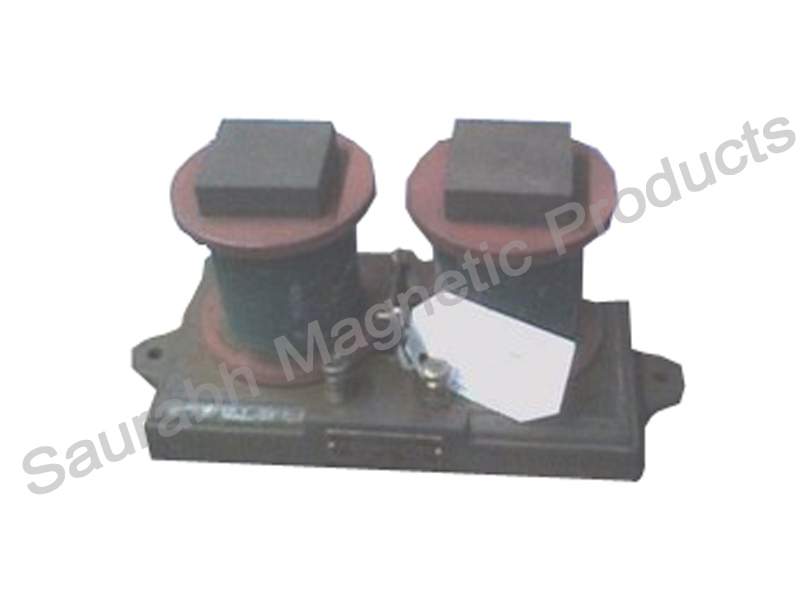

Magnet Charger
We are specialized in Magnet charger, apart from manufacturing of customised magnetiser, we also provide solutions and give support to charge the magnets. We have the best magnetiser suitable to magnetise all type of magnets.
Magnetic V-Block
Features :
- Used for Grinding, Light Milling, Drilling & Inspection of Round & Square Jobs.
- Accuracy for Flatness, Squareness and Parallelism within 0.005mm upto 150mmL & 0.010mm for 200mm L of "V"block
- The Bigger V angle & bottom holding surface are equipped with hardened strips for wear resistance.
- Uniform and strong magnetic pull to all three magnetic surfaces Top, Bottom & V face.
- Hardness of V face is 60±2 Rc.
- Easy ON- OFF facility.
- 1200 " V " angle also available.
| Sr.No. | Cat No. | Size | Range (mm) | Pull |
| 1. | SMP-13001 Soft | 40L X 40W X 50H [2"] | Ø 3 - Ø 25 | 25 Kg |
| 2. | SMP-13001 Hard | 40L X 40W X 50H [2"] | Ø 3 - Ø 25 | 25 Kg |
| 3. | SMP-13002 Soft | 75L X 56W X 75H [3"] | Ø 5 - Ø 40 | 75 Kg |
| 4. | SMP-13002 Hard | 75L X 56W X 75H [3"] | Ø 5 - Ø 40 | 75 Kg |
| 5. | SMP-13003 Soft | 100L X 70W X 95H [4"] | Ø 5 - Ø 65 | 100 Kg |
| 6. | SMP-13003 Hard | 100L X 70W X 95H [4"] | Ø 5 - Ø 65 | 125 Kg |
| 7. | SMP-13004 Soft | 150L X 75W X 100H [6"] | Ø 5 - Ø 70 | 125 Kg |
| 8. | SMP-13004 Hard | 150L X 75W X 100H [6"] | Ø 5 - Ø 70 | 150 Kg |
| 9. | SMP-13005 Soft | 200L X 125W X I50H [8"] | Ø 10 - Ø 140 | 175 Kg |
| 10. | SMP-13005 Hard | 200L X 125W X I50H [8"] | Ø 10 - Ø 140 | 175 Kg |
