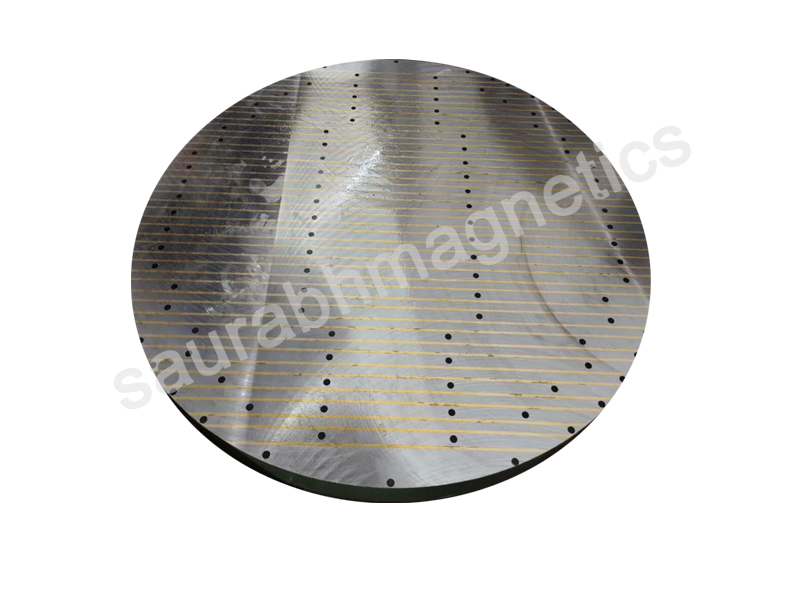

Electro Magnetic Round Chuck
We are one of the most reckoned organizations engaged in offering Magnetic Chucks. In various industrial processes, it is widely used for holding ferro-magnetic work pieces owing to its magnetic properties. These products are appreciated by our clients as they provide optimum performance without any disturbance.
Features :
- Work holding device for Rotary surface grinding machine & lathe machines.
- Each pole is having separate coil, as such very strong & even magnetic flux is generated.
- Magnetic pull is 30-50% more then IS specification.
- Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely , using a microprocessor based control circuitry.
- Variable supply for varying power which helps in alignment & removing of warpages of thin jobs.
- The chuck is also useful for second operation
- Chuck is tested for Slippering force, Waterproof test
- Temperature rise test, Electrical & Demagnetizing tests.
| Sr. No. | Cat No. | Size (mm) | Circular Pole Gap (mm) |
| 1. | SMP-17001 | Ø300 X 100H | 10 +5 |
| 2. | SMP-17002 | Ø450 X 100H | 10 +5 |
| 3. | SMP-17003 | Ø600 X 100H | 10 +5 |
| 4. | SMP-17004 | Ø750 X 100H | 10 +5 |
| 5. | SMP-17005 | Ø1000 X 100H | 10 +5 |
| 5A. | "SMP" MAG D- MAG WITH VARIABLE CONTROL UNIT | 2 Amp. | |
| 5B. | "SMP" MAG D- MAG WITH VARIABLE CONTROL UNIT | 2 Amp. & above | |
