Inferno Sabre

...

Inferno Sabre

High precision with rapid motion

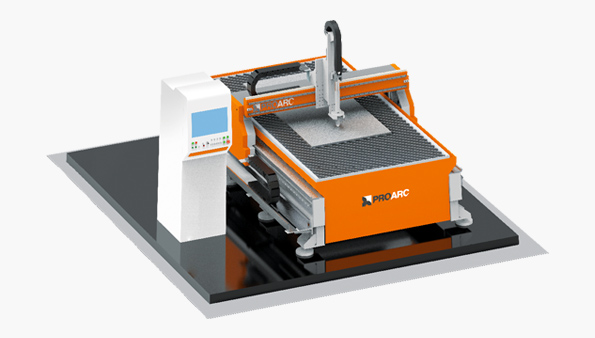

The Sabre plasma machine is a table-top machine with best-in-class table motions with high speeds and accelerations for cutting intricate jobs. This machine is easy to install and portable.

Processes
...

Plate
cutting

  • Linear motion guides along long and cross axes ensure highly precise motion
  • Stand-alone control panel with high-end control system
  • High productivity with excellent cut quality
  • Unitary design ensures quick installation and portability
  • Built with sturdy components to ensure high reliability
  • Dual linear motion guides mounted on the gantry for precise motion of torch stations
  • Helical racks and pinions ensure smoother operation, reduced shock loads, less noise and vibration
  • Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
  • Dual synchronized servo motors for gantry motion along longitudinal direction
  • Ball screw slide for precise vertical motion of plasma torch
  • Auto plate alignment for reduced setup time
  • Collision protection for plasma head
  • Enhanced safety features
  • Bolt-hole cutting for high-definition plasma
Model Sabre
Processes Oxy-fuel and/or Plasma
Application High speed and precision cutting
Machine Structure Table top machine with gantry motion on linear motion (LM) guides
Working area 1,500 mm x 3,000 mm
2,000 mm x 4,000 mm
2,000 mm x 6,000 mm
Lifter Stroke 100 mm
Cutting Capacity:
Oxy-fuel 6 mm - 60 mm
Plasma 0.5 mm – 50 mm MS
1 mm – 40 mm SS
1 mm – 40 mm Al
Cutting thickness depends on the plasma system offered
Maximum plasma torches 1
Maximum oxy-fuel torches 1
Maximum Positioning Speed 24,000 mm/min
X & Y axes motion Spur/ helical Rack and pinion
Z axis motion Ball screw
Guiding mechanism Linear motion guides for long and cross axes motion
Cutting accuracy and dimensional tolerance ISO 9013 class 2
Operator HMI Keypad based HMI / touch-screen based HMI
CNC Controller ARM-based controller / Windows based controller
Table Type Inbuilt fume extraction bed / In-built water bed
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.
