The Edge series boasts unmatched performance powered by a heavy-duty steel body that helps you boost your bottom line by introducing a higher standard of accuracy, speed and scalability. This product line is the most sold machine from our range of machines due to the versatility and flexibility that this machine offers. This machine can be offered for regular profile cutting applications and can also be combined with strip cutting applications and pipe cutting applications offering more options for structural fabrication. This machine work well with the complete range of plasmas from the entry-level plasma systems to the high-definition plasma systems making profile cutting a gratifying proposition.
Processes
Plate
cutting
Edge
Preparation
Marking
Strip
Cutting
Pipe
Cutting
Pipe
Beveling
Inferno - Edge Series
Variants
Edge E1 - Robust machines suitable for oxyfuel cutting and entry and medium level air plasma cutting machines, ARM-based controller
Edge E2 - Robust machines suitable for oxyfuel cutting and medium-level and high-definition plasma cutting machines, Windows based controller
Edge E1S & E2S - Edge E1/E2 machines with profile cutting capability in the front side of the gantry and multi-torch strip cutting capability in the rear side of the gantry
Edge E1P & E2P - Edge E1/E2 machines with plate and pipe cutting arrangement - High-speed machine designed for high-definition plasma cutting
- Moderate gantry design supported on machined railway rails
- Built with sturdy components to ensure high reliability
- Linear motion guide mounted on the gantry for precise motion of torch stations
- Spur / helical racks and pinions for precise motion
- Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
- Dual synchronized servo motors for gantry motion along longitudinal direction
- Ball screw slides for precise vertical motion of torches
- Operator seat that moves with the gantry in order to minimize operator fatigue
- Auto plate alignment for reduced setup time
- Collision protection for plasma heads
- Enhanced safety features
- Extended features include pipe/ tube cutting, marking, triple torch oxyfuel straight bevel head for weld edge preparation, underwater cutting.
| Edge E1 & E2 | ||||||
|---|---|---|---|---|---|---|
| Model | Edge E1 | Edge E2 | ||||
| Processes | Oxy-fuel and/or Plasma | |||||
| Application | Medium to Heavy-duty cutting application, flexibility to add multiple processes | |||||
| Machine Structure | Gantry simply supported at both ends by machined railway rails | |||||
| Working Widths | 1,500 mm - 4,000 mm | 1,500 mm - 4,000 mm | ||||
| Track Width | 2,500 mm - 5,000 mm | 2,500 mm - 5,000 mm | ||||
| Maximum Working length | 30,000 mm | 40,000 mm | ||||
| Lifter Stroke | 100 mm / 200 mm / 300 mm | |||||
| Cutting Capacity: | ||||||
| Oxy-fuel | 6 mm - 100 mm / 200 mm (Higher cutting thicknesses on demand) | |||||
| Plasma |
0.5 mm – 100 mm MS 1 mm – 100 mm SS 1 mm – 100 mm Al Cutting thickness depends on the plasma system offered |
|||||
| Maximum plasma torches | 2 | 2 | ||||
| Maximum oxy-fuel torches | 6 | 6 | ||||
| Maximum Position Speed | 12,000 mm/min | 24,000 mm/min | ||||
| X & Y axes motion | Spur Rack and pinion | Spur/ Helical Rack and pinion | ||||
| Z axis motion | Ball screw | |||||
| Guiding mechanism | Single linear motion guide with cam follower on cross axis & cam follower arrangement for long axis with medium duty railway rail | |||||
| Cutting accuracy and dimensional tolerance | ISO 9013 class 2 | |||||
| Operator HMI | Keypad based HMI, switches on operator panel | Touch screen based HMI, switches on operator panel | ||||
| Operator Seat | Yes | |||||
| Add-on features | Plasma Manual bevel, fume extraction table, powder marking, dot punch marking. | Plasma Manual bevel, fume extraction table, powder marking, dot punch marking, underwater cutting table, bolt hole cutting, auto gas console | ||||
| Edge E1S & E2S | ||||||
|---|---|---|---|---|---|---|
| Model | Edge E1S | Edge E2S | ||||
| Maximum strip cutting torches | 9 | 12 | ||||
| Auto spacing | No | Optional | ||||
| Torch vertical motion | Manual/ motorized | Manual/ motorized | ||||
| Auto gas console | No | Optional | ||||
| Auto ignition | Optional | Optional | ||||
| Automatic torch height controller | Optional | Optional | ||||
| Edge E1P & E2P | ||||||
|---|---|---|---|---|---|---|
| Model | Edge E1P | Edge E2P | ||||
| Structures allowed | Pipe | Pipe / Pipe & tube | ||||
| Maximum pipe / tube dimensions | Pipe Diameter ⌀ 50 mm - 300 mm Pipe length 6000 mm |
Pipe Diameter ⌀ 50 mm - 300 mm Tube size max. 200 mm x 200 mm Length 6,000 mm |
||||
| Chuck clamping | Manual / Pneumatic / Hydraulic | Manual / Pneumatic / Hydraulic | ||||
Certain customizations are possible in the above machines.

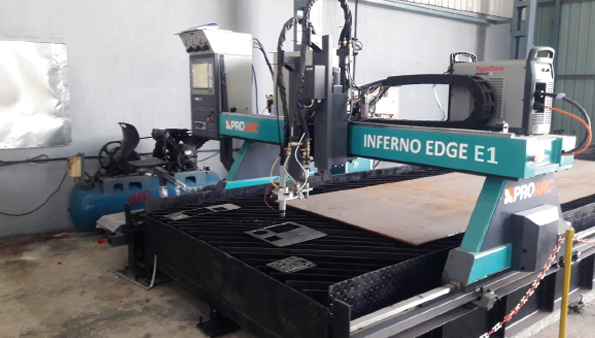

Inferno - Edge E1

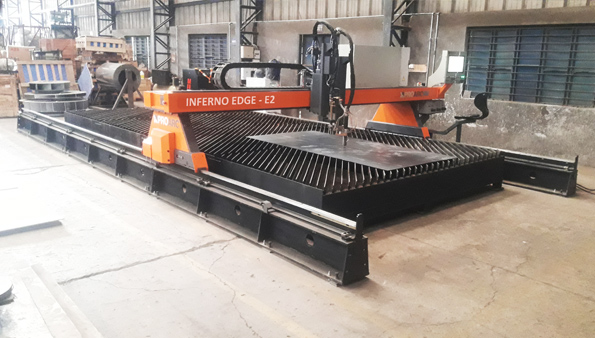

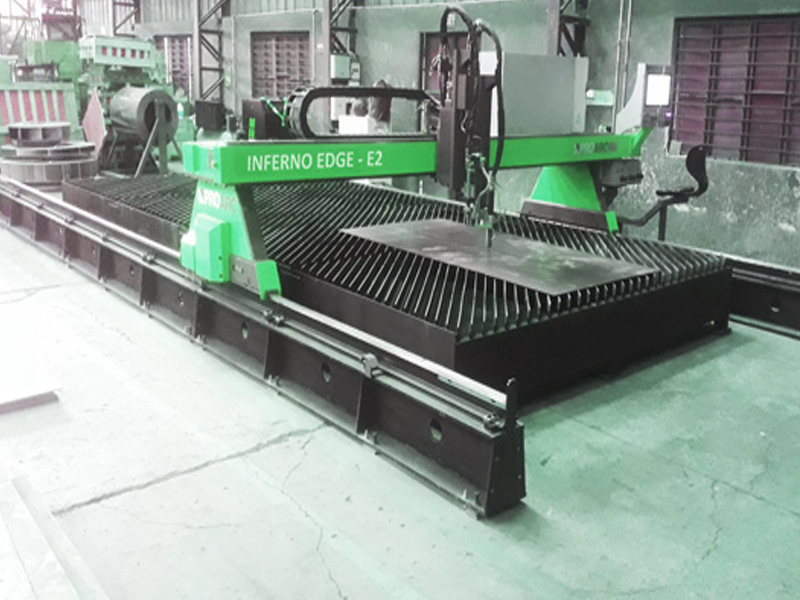

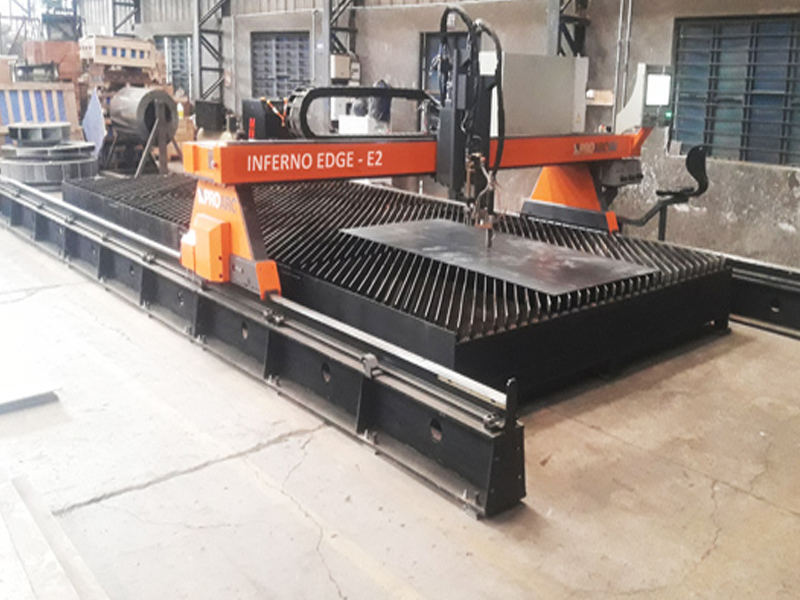

Inferno - Edge E2
