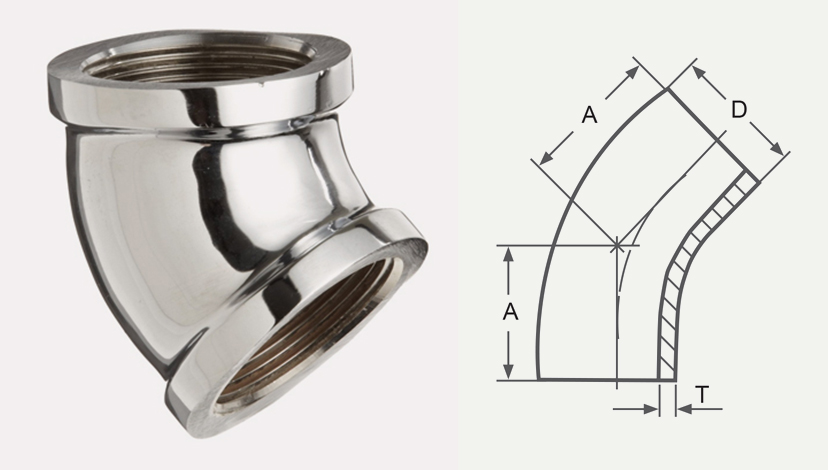

45° BEND Fittings
A 45-degree elbow creates a 45-degree change in direction, providing a slightly less sharp turn than a 90-degree elbow. These types of pipe elbows are preferred when there is space limitation for pipe routing or there is a requirement for a more gradual change in direction to result in less turbulence and pressure drop. A Pipe Elbow or Piping Elbow is a specific, standard, engineered bend pre-fabricated as a spool piece (based on ASME B16.9) and designed to either be screwed, flanged, or welded to the piping it is associated with. It is a type of pipe fittings. Pipe elbows are usually manufactured to provide a 45-degree or 90-degree direction change from the main pipe direction. There can also be custom-designed piping elbows, although most are categorized as either “short radius” or long radius”.
| PART CODE | D(in) | T(mm) | D(mm) | L(mm) | R(mm) |
|---|---|---|---|---|---|
| BP4BL0127 | 1/2" | 1.65 | 12.7 | 57.15 | 28.58 |
| BP4BL0191 | 3/4" | 1.65 | 19.05 | 57.15 | 28.58 |
| BP4BL0254 | 1" | 1.65 | 25.4 | 57.17 | 38.1 |
| BP4BL0381 | 1-1/2" | 1.65 | 38.1 | 63.5 | 57.15 |
| BP4BL0508 | 2" | 1.65 | 58.08 | 76.2 | 76.2 |
| BP4BL0635 | 2-1/2" | 1.65 | 63.5 | 85.73 | 95.25 |
| BP4BL0762 | 3" | 1.65 | 76.2 | 92.08 | 144.3 |
| BP4BL1016 | 4" | 2.11 | 101.6 | 114.3 | 152.4 |
