Eccentric-Reducer Fittings

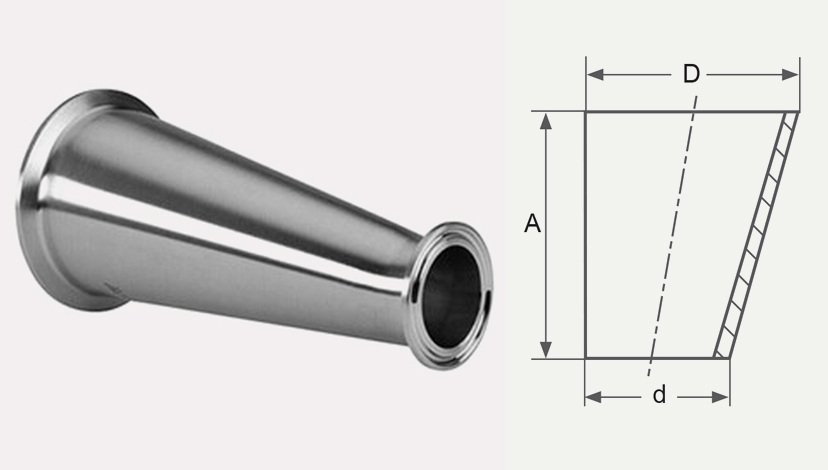

In an Eccentric Reducer, the reduction in the pipe size is achieved at a constant rate but maintains one side of the fitting horizontally. The use of eccentric reducers is also reversible and can be used as eccentric expanders. Eccentric reducers are not symmetrical about their centerlines. An eccentric reducer is a fitting used in piping systems between two pipes of different diameters. The same fitting can be used in reverse as an eccentric increaser or expander. They are used where the diameter of the pipe on the upstream side of the fitting (i.e. where flow is coming from) is larger than the downstream side, and where there is a danger that vapour may accumulate.
| PART CODE | X | Y | L2 | L3 | L4 |
|---|---|---|---|---|---|
| BPERL01910127 | 3/4" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPERL02540127 | 1" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPERL02540191 | 1" | 3/4" | 28.58 | 25.4 | 25.4 |
| BPERL03810191 | 1-1/2" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPERL03810254 | 1-1/2" | 3/4" | 28.58 | 25.4 | 25.4 |
| BPERL05080254 | 2" | 1" | 28.58 | 25.4 | 25.4 |
| BPERL05080381 | 2" | 1/2" | 28.58 | 25.4 | 25.4 |
| BPERL06350381 | 2-1/2" | 1-1/2" | 28.58 | 25.4 | 25.4 |
| BPERL06350508 | 2-1/2" | 2" | 28.58 | 25.4 | 25.4 |
| BPERL07620381 | 3" | 1-1/2" | 28.58 | 25.4 | 38.1 |
| BPERL07620508 | 3" | 2" | 28.58 | 25.4 | 38.1 |
| BPERL07620635 | 3" | 2-1/2" | 28.58 | 25.4 | 38.1 |
| BPERL10160508 | 4" | 2" | 28.58 | 25.4 | 38.1 |
| BPERL10160635 | 4" | 2-1/2" | 28.58 | 25.4 | 38.1 |
| BPERL10160762 | 4" | 3" | 41.28 | 38.1 | 38.1 |
